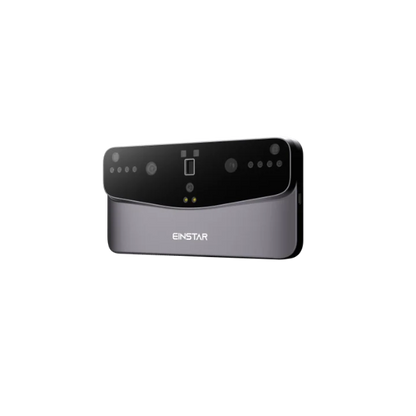

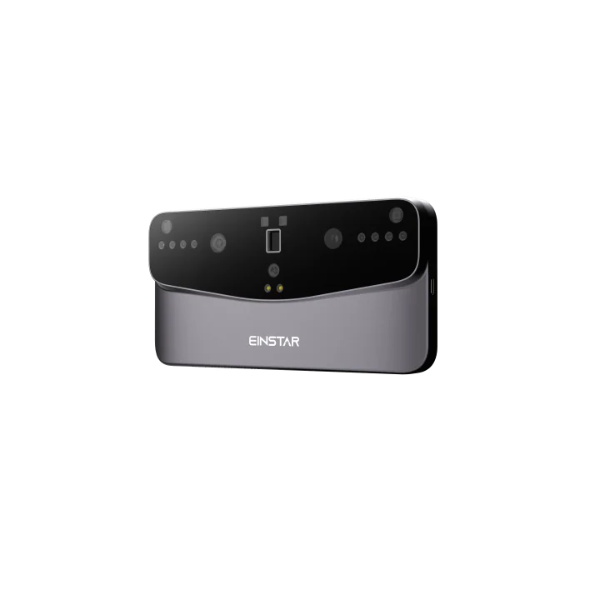

Shining3D Einstar VEGA Handheld 3D Scanner

Shining3D Einstar VEGA Handheld 3D Scanner

View full details


Discover the Shining3D Einstar VEGA: Your Ultimate 3D Scanning Solution


Unleash Precision and Portability

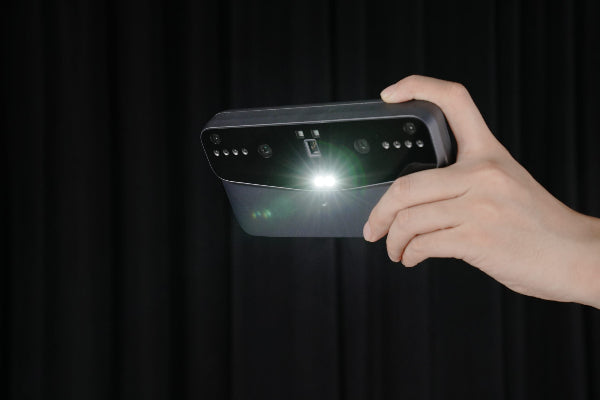

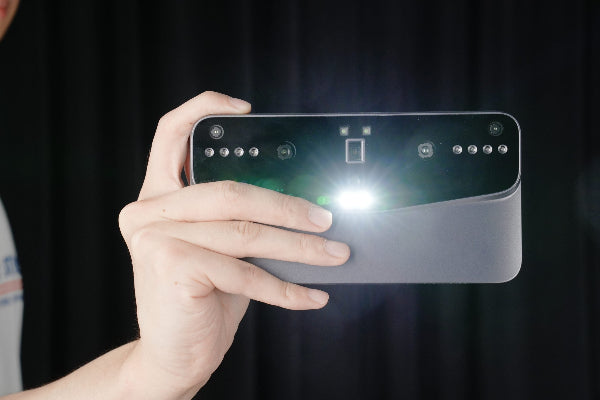

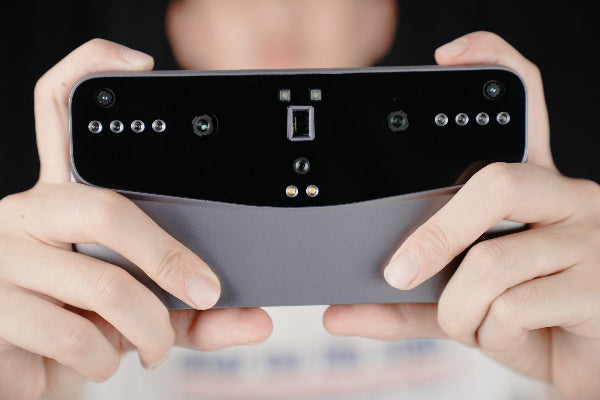

The Shining3D Einstar VEGA is a cutting-edge, wireless handheld 3D scanner that combines advanced technology with user-friendly design. Weighing just 535 grams, it's engineered for both professionals and enthusiasts seeking high-resolution 3D scanning capabilities without the need for a connected computer.

Key Features:

  • Dual Scanning Modes:  Switch seamlessly between HD Mode (100–350mm) for intricate details and Fast Mode (350–1500mm) for larger objects.

  • High-Resolution Imaging:  Capture detailed textures with a 48MP RGB camera and achieve point distances as fine as 0.05 mm.

  • Advanced Alignment Options:  Utilize feature, marker, texture, and hybrid alignment modes to ensure accurate 3D models.

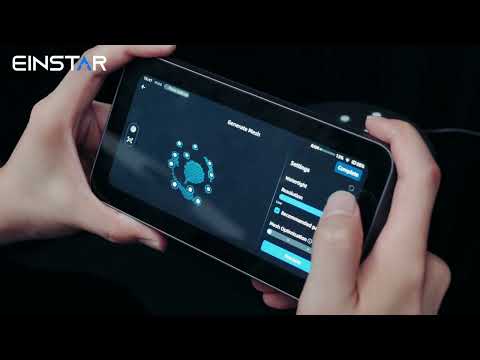

  • Wireless Operation:  Experience true portability with built-in computing, eliminating the need for a PC during scanning.

  • Robust Connectivity:  Supports USB 2.0/3.0, Bluetooth, and Wi-Fi 6 for efficient data transfer and cloud integration.

  • Ample Storage:  Comes with 32GB eMMC and a 512GB SSD to store extensive scan data.

Applications:

  • Education:  Ideal for STEM learning, enabling students to explore 3D modelling and digital fabrication.

  • Engineering & Design:  Facilitates rapid prototyping and reverse engineering with high accuracy.

  • Healthcare:  Assists in creating custom prosthetics and anatomical models.

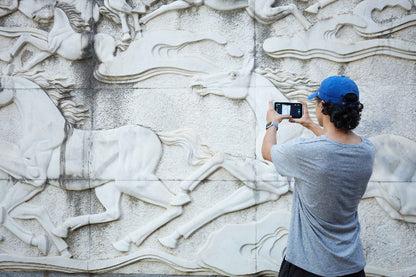

  • Art & Heritage Preservation:  Digitize artifacts and artworks for restoration and archival purposes.

  • Virtual Reality & Augmented Reality:  Enhance immersive experiences with detailed 3D assets.

Why Choose Einstar VEGA?

The Einstar VEGA stands out as a versatile, all-in-one 3D scanning solution that doesn't compromise on performance or portability.  Whether you're in a classroom, workshop, or field setting, this scanner adapts to your needs, providing professional-grade results with ease.

Specifications

Scan Mode:                         HD Mode | Fast Mode

Point Distance:                   HD Mode: 0.05mm~3mm | Fast Mode: 0.5mm~10mm

Working Distance:             HD Mode:  100-250mm | Fast Mode:  350-1500mm

Align Mode:                       Feature; Texture; Markers; Hybrid

Output Formats:                ply; stl; obj; asc

Scanner Weight:                Limited Edition:  643g | Regular Edition: 535g

CPU:                                    8-core CPU, 2.4GHz

Internal Hard Drive:          32GB eMMC + 512GB SSD

Interface:                            Wi-Fi 6, USB Type C

Supplemental Light:          10

Operating Temperature:    -10~40℃

Packing Size:                        380*305*155mm

Battery:                                 Built-in 5000mAh | External power bank charging supported

Light Source:                         HD Mode: Infrared MEMS | Fast Mode: Infrared VCSEL

Capture Frame:                      HD Mode: Up to 15 fps | Fast Mode: Up to 20 fps

IR Camera Resolution:           HD Mode: 2MP  | Fast Mode:  1.3MP

Colour Camera Resolution:   48 MP

Outdoor Scan:                         Yes

Scanner Size:                           180mm*95mm*26.5mm  (L*W*H)

RAM:                                        32 GB LPDDR4 Memory

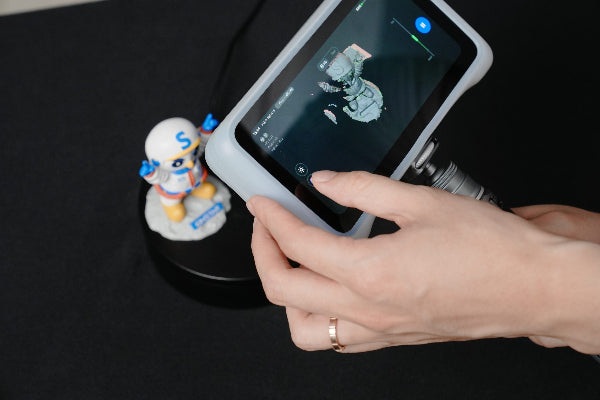

Touchscreen:                           6.4″ 2K OLED

IMU:                                         6 DoF

Operating Humidity Rage:    0-90% RH (non-condensing)

Protection Grade:                    IP50

Power Charger:                       65W fast Charging | Supports PD/PPS Protocols

Supported OS:                         No computer required for 3D scanning operation;  StarVision (Data processing program on PC) : Windows10/11 (64-bit) Recommended PC configuration: Intel i7, 32 GB RAM; macOS 11.0 ( on Apple Chip)
