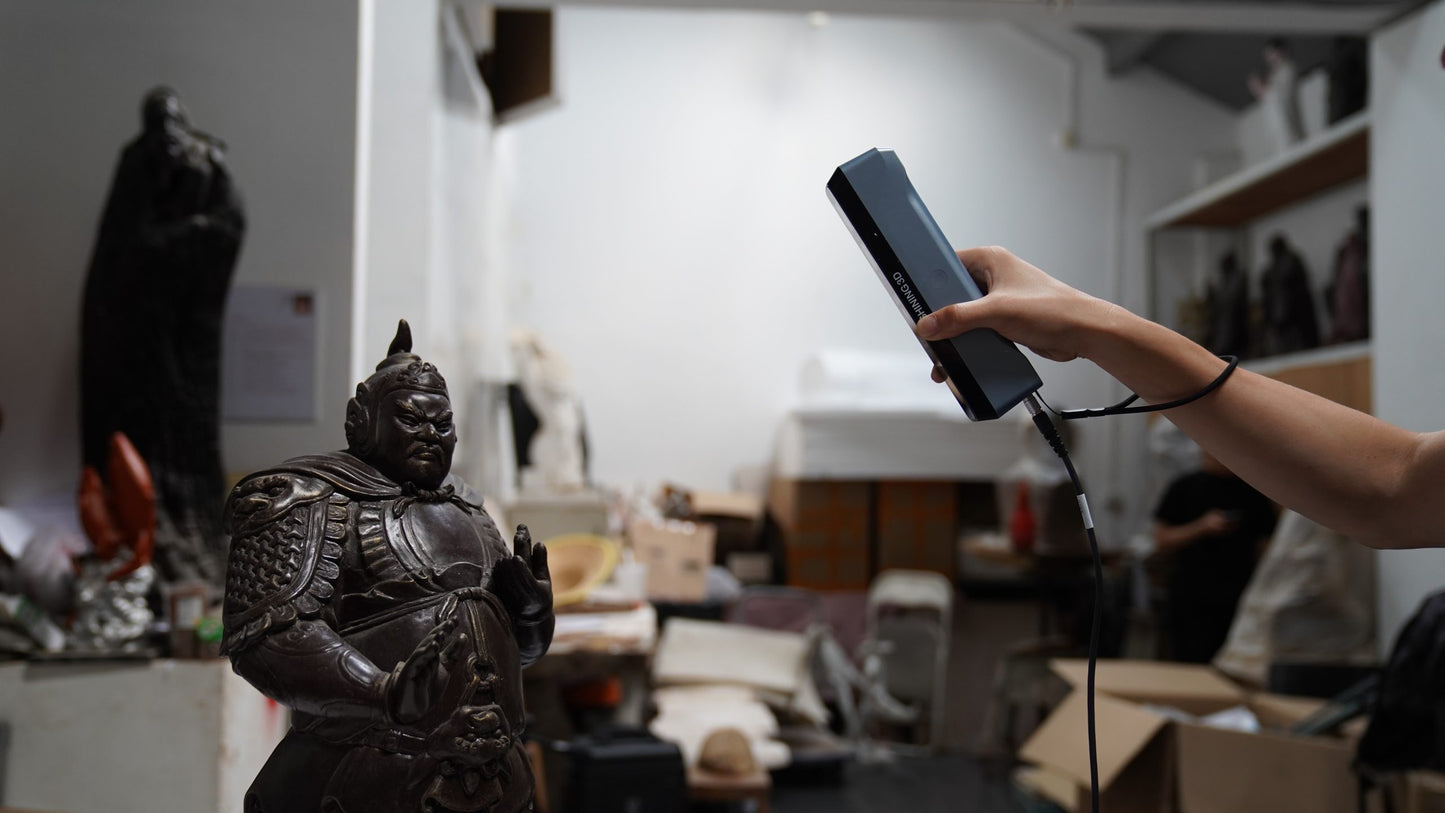

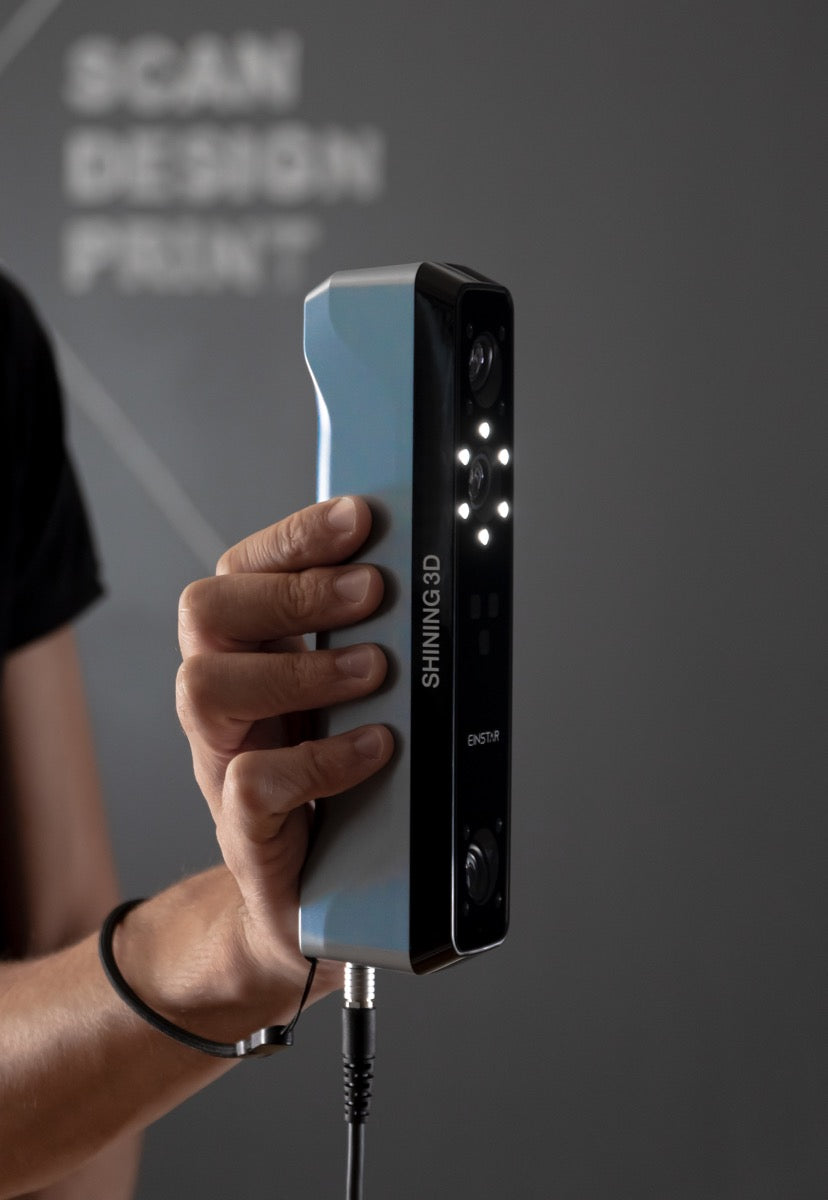

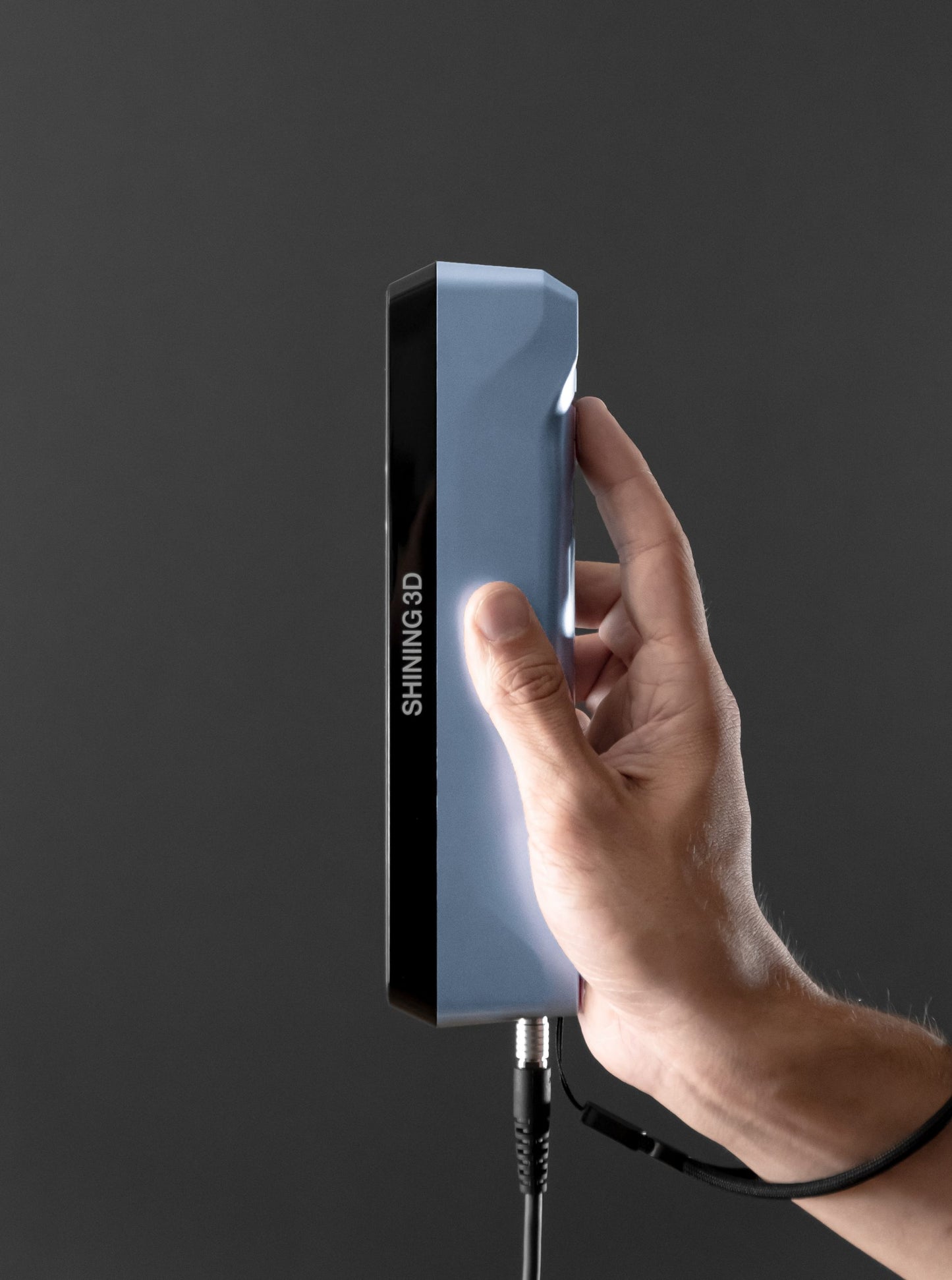

EINSTAR, an affordable handheld 3D scanner, makes high-quality 3D data available to everyone. In the standard package you will find a handheld 3D scanner with Exstar software, and a lightweight carrying case which includes a series of accessories: a silicone case, introductory user guide, positioning markers, cloth to wipe the lens, a carrying strap, power supply and USB cable.
Enhanced Software Algorithms
Einstar v1.2 new software algorithms obtain sharper and clearer data details more easily.
High Quality Data
Collect high density point cloud data fast and easily with point distance up to 0.1mm.
High Colour Fidelity
Benefit from built-in RGB color camera. 3D data with authentic colours.
User Friendly Software
Data quality indicator optimizes the point cloud for complete data acquisition.
Multiple output formats (OBJ, STL, PLY, P3, 3MF) support different CAD design software and 3D printers.
New data rewind function avoids swipe all your data if any mistake or misalignment happens during scanning.
Streamlined User Experience
Smooth and fast, scanning speed up to 14 FPS.
- Easy setup and operation
- Automatic alignment
- Intelligent algorithm
- Smart tracking performance

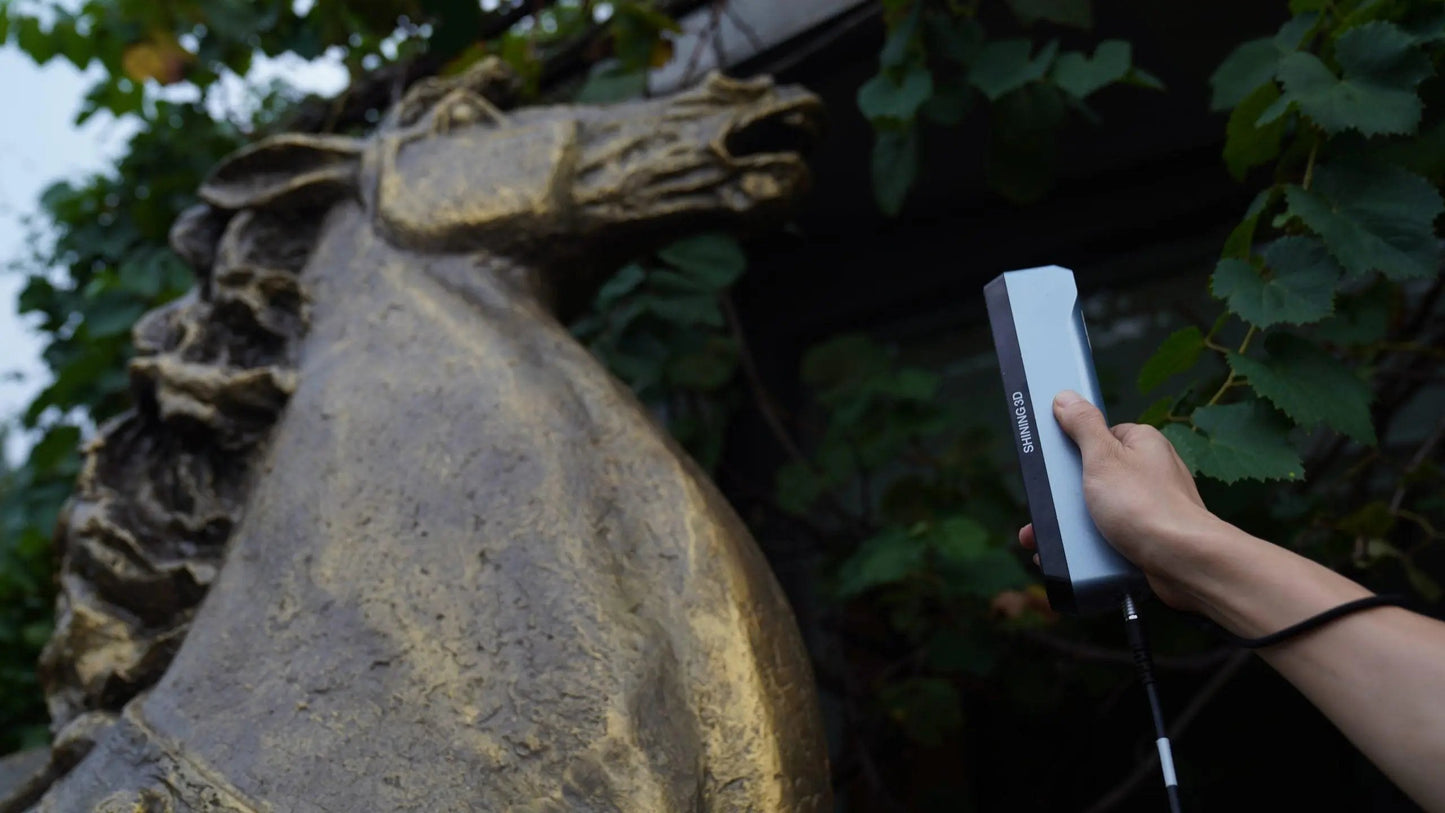

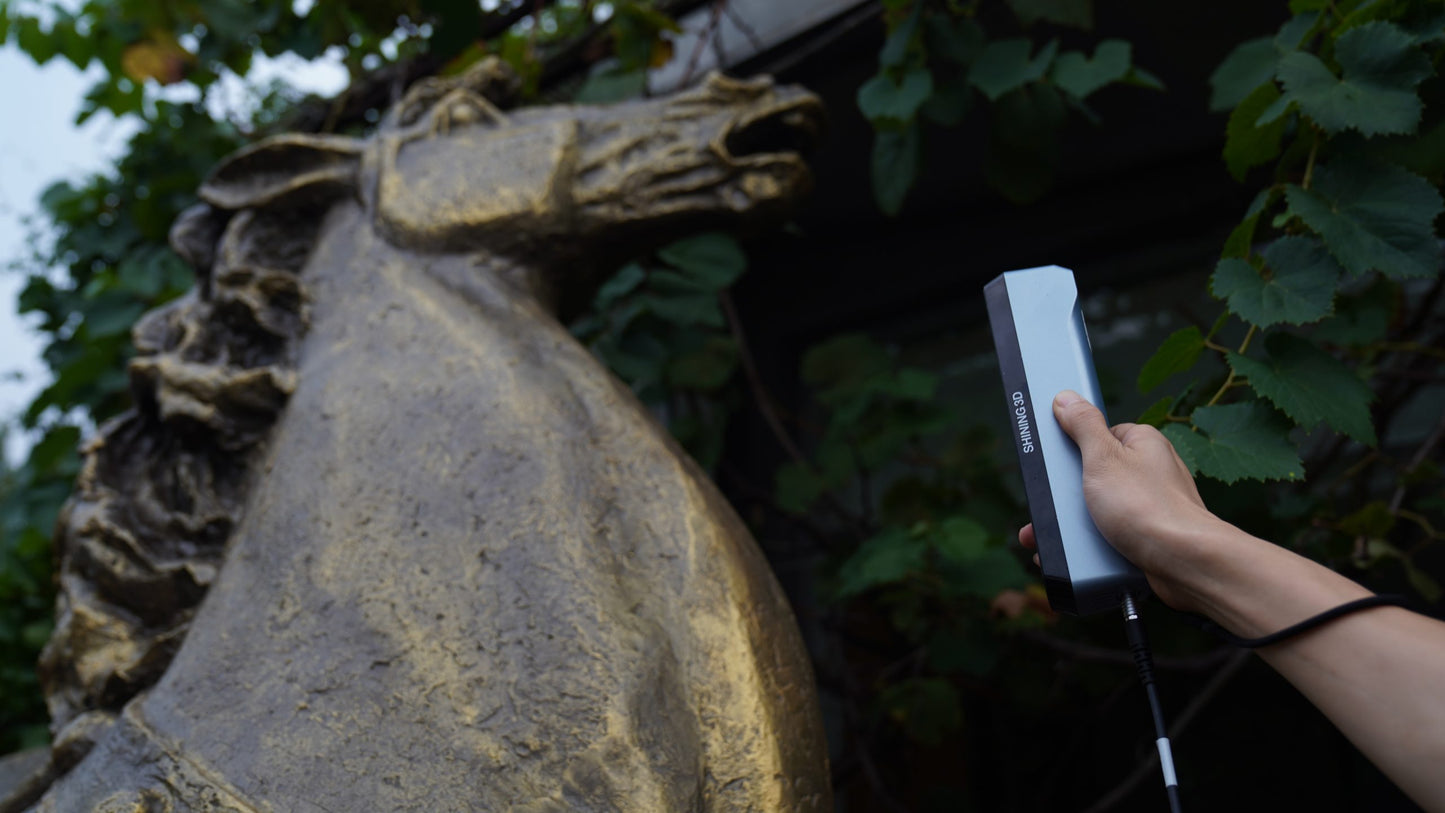

Stable Outdoor Scanning

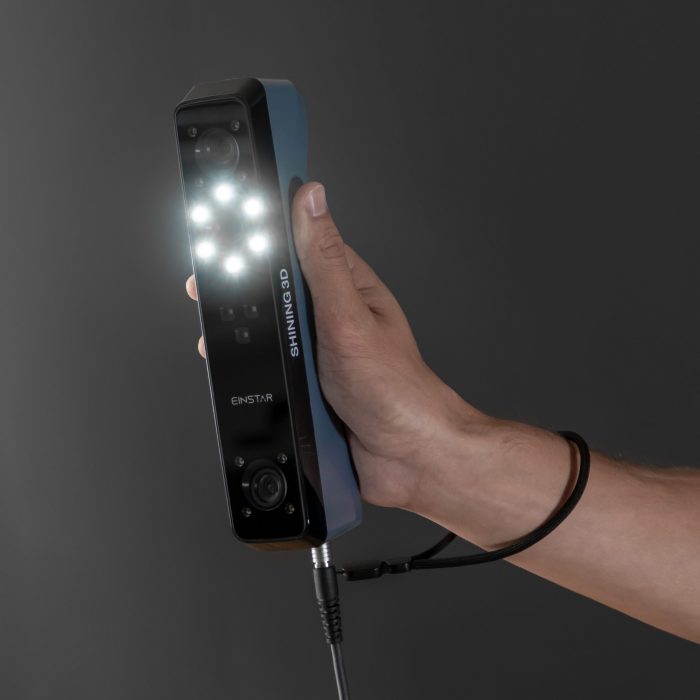

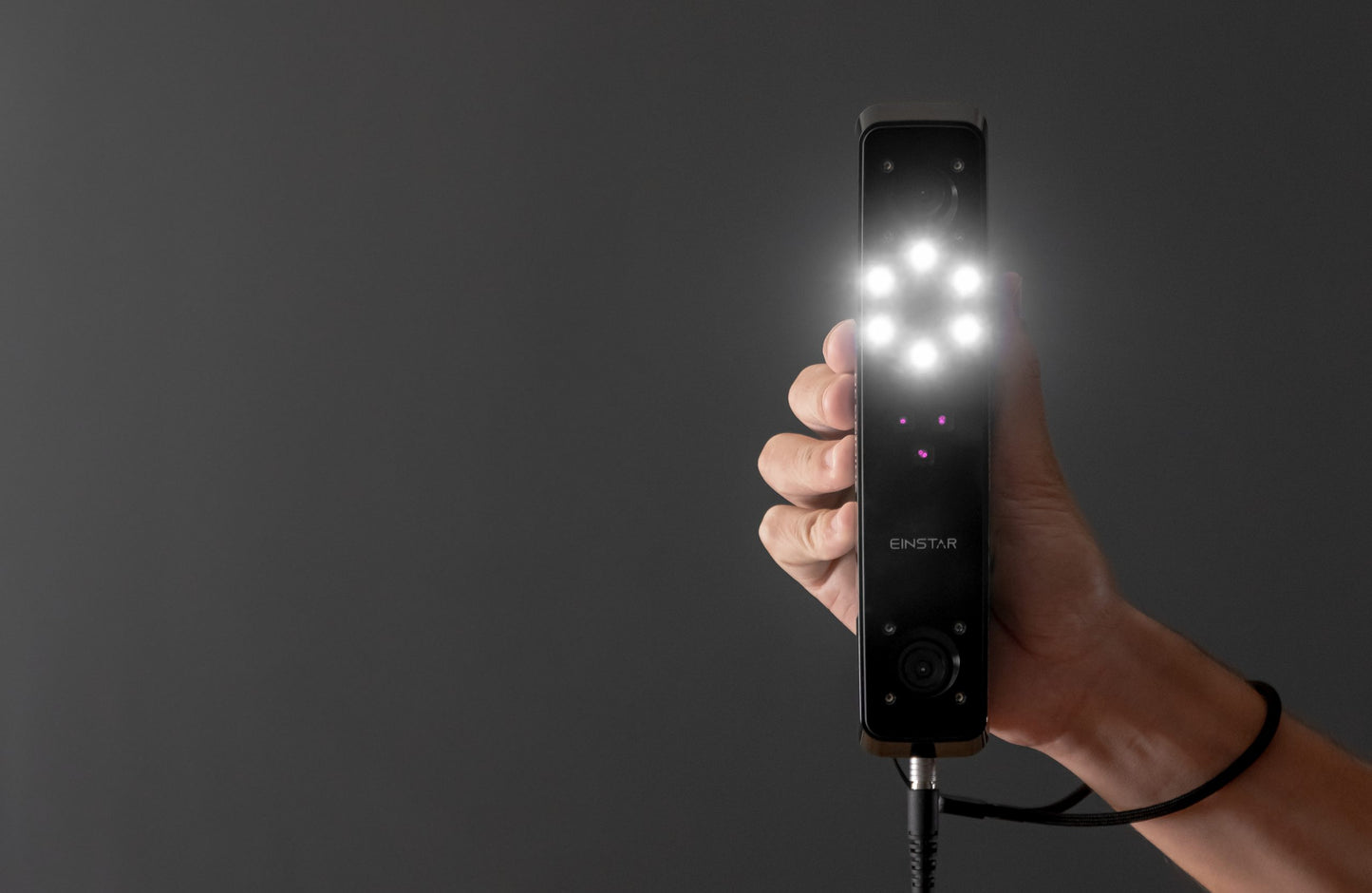

Equipped with 3 Infrared VCSEL Projectors, 2 Stereo Depth Cameras and 1 RGB Camera, Einstar can capture clear scan data and generate stable outputs outdoors. Provide a flexible working distance for small and large objects.
Comfortable for Eyes, Easy to Scan Hair
- No projector light during scanning process.
- Comfortable and safe for eyes.
- Turning on "Hair Mode" to get sufficient hair data for human scan and improve the whole data completeness.
SHINING 3D Digital Cloud
One-click sharing 3D scanning data on SHINING 3D digital cloud platform. Display your great and creative minds.
Variety Applications
Einstar is widely used in 3D printing, designing, digital archiving, education, culture and art, VR & AR.
Technical Specifications
Scan Mode | Structed Light Scan |
Point Distance | 0.1 mm ~ 3 mm |
Light Source | Infrared VCSEL structured light |
Working Distance | Effective Working Distance: 160mm-1400mm; Optimal Working Distance: 400mm |
Depth of Field | 160-1400mm |
Maximum FOV | 434mm*379mm (under optimal work distance) |
Scan Speed | 980,000points/s, up to 14FPS |
Align Modes | Feature Alignment, Hybrid Alignment, Texture Alignment, Global Markers |
Safety | Eye-safe |
Texture Scan | Yes |
Outdoor Scanning | Yes |
Interface | USB2.0 or above |
Output Formats | OBJ; STL; PLY; P3; 3MF |
Scanner Size | 220mm*46mm*55mm |
Carrying Case Size | 245mm*245mm*90mm |
Scanner Body Weight | 500g |
Operating Temperature Range | 0-40℃ |
Operating Humidity Range | 10-90% |
Certifications | CE, FCC, ROHS, WEEE, KC |
Recommended Configuration | OS: Win10/11, 64 bit; Graphics card: NVIDIA GTX1060; Video memory: ≥6GB; Processor: I7-11800H; Memory: ≥32GB |
Basic Computer Configuration | OS: Win10, 64 bit; Graphics card: NVIDIA GTX1050; Video memory: ≥4GB; Processor: I7-7700H; Memory: ≥16GB |
* Einstar infrared light source, certificated as Class 1 laser product, is safe under all conditions of normal use.
* Global Markers alignment is only available in Object Scan Mode
* Einstar must require computer equipped with NIVIDA graphics card
