Shining 3D EINSTAR Rockit Portable Wireless 3D Scanner
Rock-It in Your Pocket – Australia's Most Portable Professional 3D Scanner
The EINSTAR Rockit is a breakthrough portable 3D scanner combining professional-grade performance with true wireless freedom. Weighing just 425 grams and fitting comfortably in your hand, Rockit delivers high-quality 3D scanning for Australian designers, engineers, artists, and makers without the complexity of traditional systems.
🚀 Key Innovation: True wireless operation with built-in Wi-Fi, dual light sources (Blue Laser + IR VCSEL), and genuine 5MP colour capture – all in a pocket-sized 425g package.
True Wireless Design – Scan Anywhere, Unrestricted
Experience genuine wireless freedom with built-in Wi-Fi connectivity that requires no external hubs or adapters. The integrated Wi-Fi module provides stable real-time synchronisation to your PC, whilst the swappable battery system delivers up to 3 hours of continuous scanning per charge. With two batteries and a charger included, simply swap batteries to keep scanning without interruption. USB Type-C cable connection remains available as a backup option if Wi-Fi interference occurs.

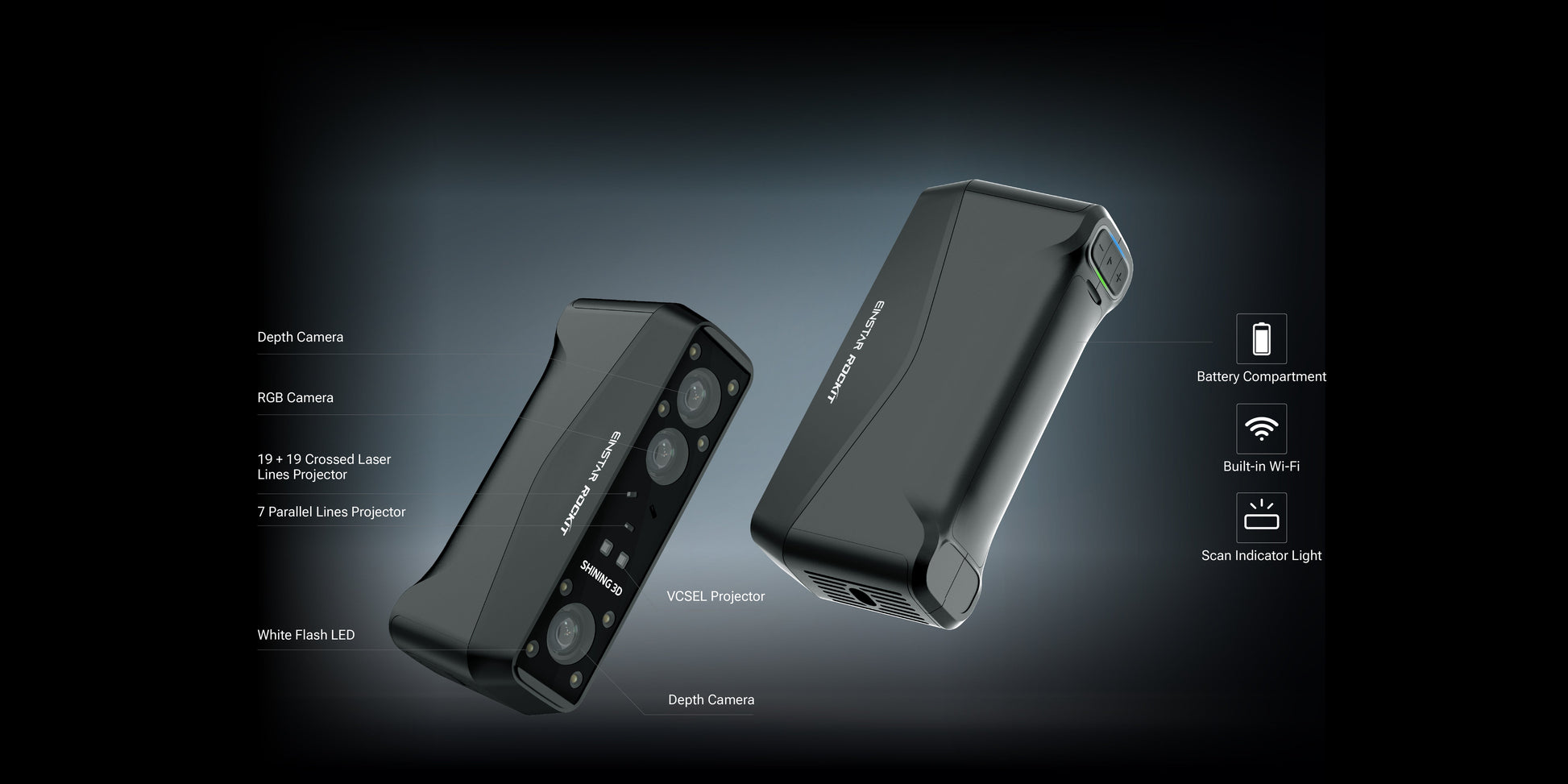

Dual Light Source Technology
Rockit's innovative hybrid scanning system adapts to diverse scanning scenarios through two complementary light sources:
Blue Laser Scanning (Laser HD Mode)
- 38 Blue Laser Lines: 19 + 19 crossed laser lines for rapid large-area capture, plus 7 parallel laser lines for fine feature detail
- 2,800,000 Points Per Second: Fast, high-resolution scanning with 0.05-10mm resolution
- Exceptional Material Adaptability: Works brilliantly on black and reflective surfaces without spray coating – perfect for automotive components, carbon fibre, glossy finishes, and chrome
- Deep Hole Capability: Optimised for scanning recessed areas, pockets, and complex geometries
- Outdoor Performance: Reliable operation in bright light up to 110,000 Lux
Infrared VCSEL (IR Rapid Mode)
- Fast Full-Body Scanning: Capture human subjects safely from head to feet in approximately 60 seconds
- High Efficiency: 1,440,000 points per second for medium to large objects
- Marker-Free Operation: Scan feature-rich objects without surface preparation or tracking targets
- Hybrid Alignment: Combines texture, feature, and marker tracking for maximum versatility
- Bright Environment Capability: Functions effectively outdoors up to 70,000 Lux
Marker-Free Laser Scanning
Skip the time-consuming marker placement process. Rockit's advanced feature recognition technology aligns scan data automatically on feature-rich objects, dramatically simplifying your workflow and accelerating results. Marker-based alignment remains available for objects with minimal surface detail when required.
Pocket-Sized Powerhouse
Don't let the compact dimensions fool you. At just 130 × 37 × 61mm and 425 grams (with battery), Rockit delivers professional scanning performance that rivals desktop systems, whilst fitting comfortably in your pocket. The sleek, refined build quality provides reliable operation scan after scan, with scanning speeds up to 90 frames per second using marker alignment for smooth, real-time capture.
True 5MP Colour Capture
The dedicated 5MP colour camera captures vivid, photorealistic textures with exceptional fidelity. Advanced texture mapping algorithms process image data with minimal resolution loss, ensuring your final 3D models display genuine high-resolution textures with sharp details and accurate colours. Perfect for AR/VR applications, digital art, product visualisation, and custom design work requiring realistic surface appearance.
EXStar Hub Software
EXStar Hub is an intuitive software platform designed specifically for EINSTAR Rockit and EINSTAR 2 scanners. The unified interface streamlines workflows, reduces system load, and improves overall performance, enabling faster scanning, greater mobility, and lower operating costs. The software provides step-by-step guidance through the complete 3D scanning process.
Australian Industry Applications
Automotive Customisation & Modification
Rockit is the go-to 3D scanning solution for Australian automotive workshops and customisation specialists. Rapidly capture high-quality 3D data for exterior body kits, interior trim modifications, and accessory design. The compact, cable-free design brings unprecedented portability to the workshop or client site. Effortlessly scan diverse materials – from matte plastics and carbon fibre to glossy paint finishes and chrome trim – without spray coating. Connect via Wi-Fi or USB-C to unlock advanced processing power for demanding projects.
Cultural Heritage & Art
Document and preserve Australia's cultural treasures with unmatched flexibility. Capture inspiration anywhere – from monumental outdoor sculptures and Indigenous artifacts to intricate gallery pieces and historical objects. The wireless design frees you from cable constraints, whilst the 5MP texture camera captures vibrant colours and exquisite surface details with stunning realism. Perfect for creating immersive AR/VR experiences, detailed archival records, museum digitisation, or unique custom art pieces.
Education & Research
The combination of intuitive software, low learning curve, and exceptionally lightweight operation allows students and researchers to focus on their projects rather than complex technical setups. Rockit generates high-quality, high-resolution data ready for analysis and application, seamlessly integrating into professional 3D design and modelling workflows. An ideal partner for beginners whilst fostering innovation in academic research and education across Australian universities and institutions.
Product Design & Prototyping
Accelerate your design process with rapid 3D capture of existing products, prototypes, and design inspirations. The portable form factor enables scanning wherever creativity strikes – in the workshop, at client meetings, or in the field.
Digital Content Creation
Content creators, game developers, and digital artists can rapidly capture real-world objects and environments for integration into digital projects, with photorealistic texture capture enhancing visual fidelity.
Technical Specifications
| Scanning Modes | |
| Light Sources | Blue Laser (19+19 crossed lines + 7 parallel lines) | IR VCSEL |
| Scan Modes | Laser HD | IR Rapid |
| Performance | |
| Resolution | Laser HD: 0.05-10mm | IR Rapid: 0.2-10mm |
| Scanning Speed | Laser HD: 2,800,000 points/s | IR Rapid: 1,440,000 points/s |
| Frame Rate | Up to 90 fps (with marker alignment) |
| Working Distance | Laser HD: 100-600mm | IR Rapid: 160-1400mm |
| Maximum FOV | 19+19 lines: 545×620mm | 7 lines: 355×425mm | IR: 1170×1385mm |
| Features | |
| Alignment Modes | Laser HD: Global Marker/Markers/Features/Hybrid IR Rapid: Global Marker/Markers/Features/Texture/Hybrid |
| Colour Capture | 5MP dedicated colour camera with true 5MP texture resolution |
| Outdoor Performance | Laser HD: Up to 110,000 Lux | IR Rapid: Up to 70,000 Lux |
| Physical Specifications | |
| Dimensions (H×D×W) | 130 × 37 × 61mm |
| Weight | 425g (with battery) | 353g (without battery) |
| Battery Life | Up to 3 hours per battery (2 batteries included) |
| Connectivity & Software | |
| Connectivity | Built-in Wi-Fi (no hub required) | USB Type-C backup |
| Software | EXStar Hub (included) |
| Output Formats | STL, OBJ, PLY, 3MF, ASC |
| Laser Classification | Class 2 (eye-safe) |
PC System Requirements
To ensure optimal performance, particularly for marker-free laser scanning, your PC should meet these specifications:
Minimum Requirements
- Operating System: Windows 11 Professional 22H2 (64-bit)
- Processor: 13th Gen Intel Core i7-13700H or equivalent/higher
- RAM: 32GB DDR5 dual-channel
- Graphics Card: NVIDIA GeForce RTX 3060 Laptop GPU or higher
- VRAM: 6GB or higher
- Interface: USB 3.0 port
Recommended for Marker-Free Laser Scanning
- RAM: 64GB or higher DDR5 dual-channel
Important: For smooth marker-free laser scan experiences, 64GB RAM is strongly recommended. The increased memory capacity significantly improves real-time processing performance and workflow efficiency.
What's Included
- EINSTAR Rockit 3D Scanner
- EXStar Hub Software (perpetual licence)
- 2 × Rechargeable batteries (up to 3 hours runtime each)
- Battery charger
- USB Type-C connection cable
- Calibration accessories
- Protective carry case
- Quick start guide and documentation
Optional Add-Ons
EXModel Personal Software
Enhance your scanning workflow with EXModel Personal, seamlessly integrated with EXStar Hub. Transfer scan data with a single click and access professional mesh editing capabilities:
- Intuitive mesh editing tools for reducing data size whilst maintaining accuracy
- Fill holes and remove outliers to create watertight meshes for 3D printing
- Primitives extraction (planes, cylinders, cones, spheres)
- 3D sketching and fill surface tools
- Constrained 2D sketching with dimensioning and constraints
- Comparison and analysis functions for quality verification
- Export formats: STL, OBJ, PLY, and CAD as STL
Note: EXModel Personal is designed for personal and educational use. For commercial applications, EXModel Pro is required.
Frequently Asked Questions
Who is EINSTAR Rockit designed for?
EINSTAR Rockit is ideal for product designers, automotive engineers, 3D artists, makers, educators, and researchers. Typical applications include automotive part scanning, digital art creation, AR/VR content production, cultural heritage documentation, and scanning outdoor objects such as statues and sculptures.
Does Rockit require markers for scanning?
No, Rockit supports marker-free laser scanning in both crossed and parallel line modes, using advanced feature recognition for automatic data alignment. This significantly simplifies workflow and improves efficiency. Marker-based alignment remains available for objects with minimal surface features. The IR mode supports hybrid alignment, including feature, texture, and marker tracking for different object types.
Can Rockit scan outdoors or in bright lighting conditions?
Yes, Rockit is specifically designed for outdoor scanning capabilities. Laser HD mode operates reliably in bright light up to 110,000 Lux, whilst IR Rapid mode functions up to 70,000 Lux. This makes Rockit suitable for scanning large objects in daylight, under workshop lighting, or in varied environmental conditions.
How long does the battery last?
Each rechargeable battery provides up to 3 hours of continuous scanning. With two batteries included and a charger, you can use one battery whilst charging the other, enabling extended scanning sessions without power interruptions.
Is the 5MP texture resolution genuine?
Yes, absolutely. EINSTAR Rockit features a dedicated 5MP colour camera for texture capture. The advanced texture mapping algorithm intelligently processes image data with minimal resolution loss, ensuring the final 3D model achieves genuine high-fidelity 5MP texture resolution. This delivers photorealistic textures with sharp details and accurate colours, significantly enhancing the realism of your digital models.
What connectivity options are available?
Rockit features built-in Wi-Fi for true wireless operation without requiring external hubs or adapters. The Wi-Fi module provides stable real-time synchronisation to your PC. USB Type-C cable connection is also available as a backup option for stable operation if Wi-Fi interference occurs.
Australian Support & Warranty
EINSTAR Rockit is backed by comprehensive 12-month manufacturer warranty and Australian technical support. Professional guidance and application assistance available to ensure you achieve optimal results from your investment.
Why Choose EINSTAR Rockit?
EINSTAR Rockit represents a breakthrough in accessible professional 3D scanning technology. By combining true wireless freedom, dual light source versatility, genuine portability, and professional-grade performance in a pocket-sized package, Rockit eliminates traditional barriers to high-quality 3D scanning. Whether you're an automotive specialist, digital artist, cultural heritage professional, or educational institution, Rockit delivers the scanning capabilities you need with the freedom and simplicity you want.
Ready to revolutionise your 3D workflow? Contact Add Labs today to discover how EINSTAR Rockit can unlock new possibilities for your projects.
