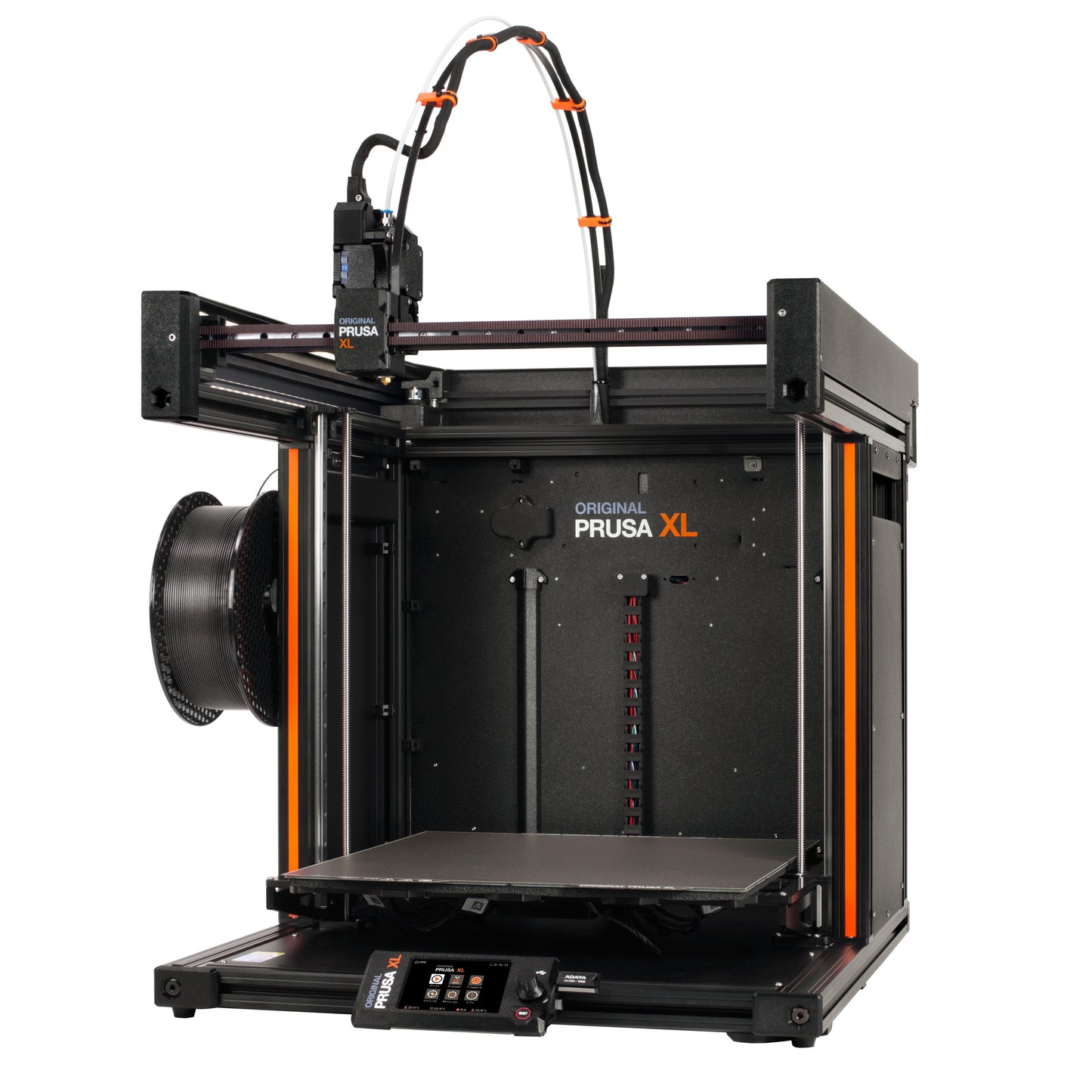

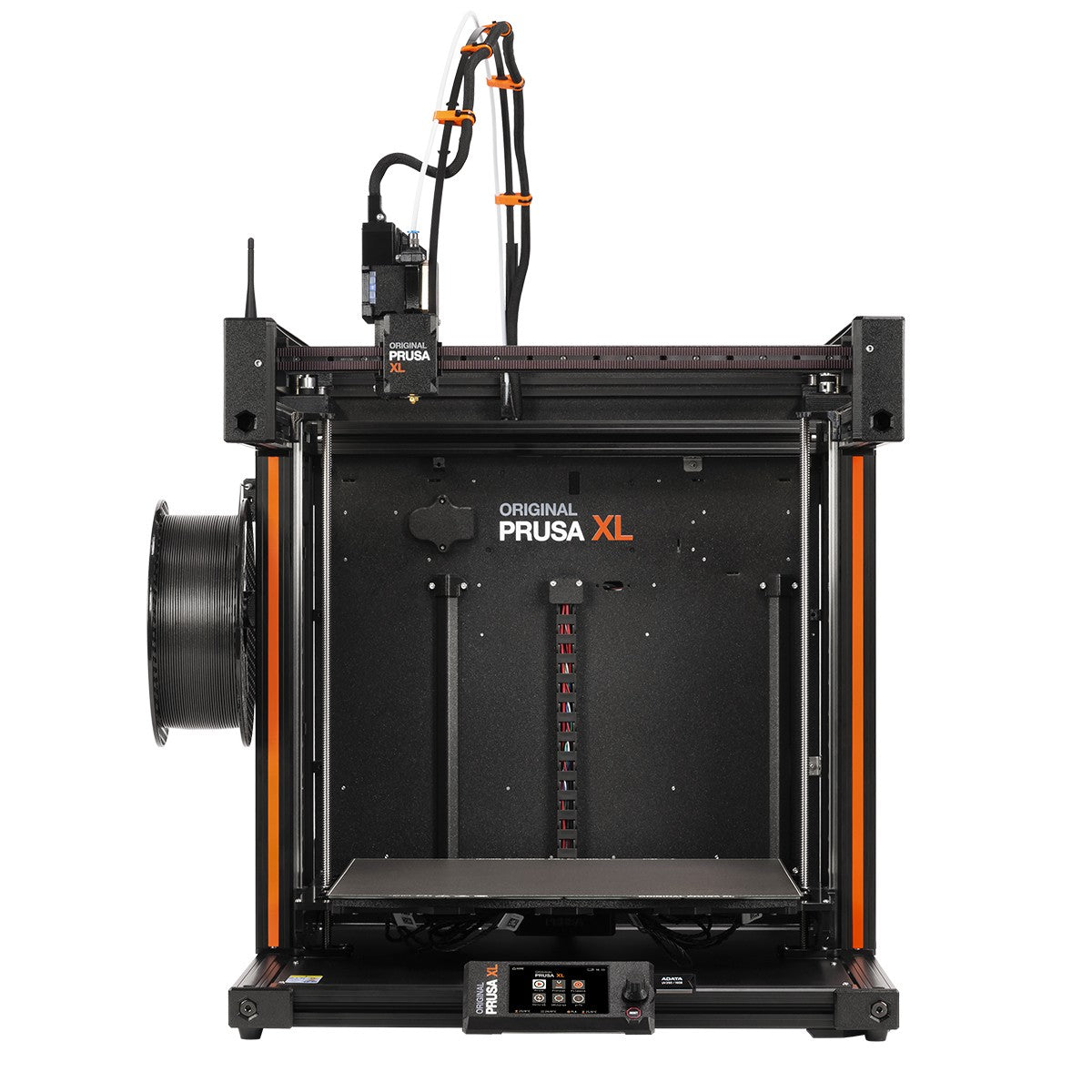

Original Prusa XL 3D Printer – Large Format Multi-Material CoreXY System

Australia's Premier Large-Format Multi-Material 3D Printer – Zero-Waste Toolchanger Technology

The Original Prusa XL represents a revolutionary approach to large-format 3D printing, combining a massive 360×360×360mm build volume with innovative toolchanger technology for true multi-material printing. Designed and built in the EU by Josef Prusa's renowned team, the Prusa XL 3D printer delivers professional-grade results for Australian engineers, designers, manufacturers, and makers who demand both scale and precision without the material waste typical of traditional multi-colour systems.

KEY INNOVATION: Lightning-fast toolchanger with up to 5 independent toolheads, segmented heatbed technology, zero-waste multi-material printing, and CoreXY precision — all in a 360mm cube build volume.

Revolutionary Toolchanger System – True Multi-Material Freedom

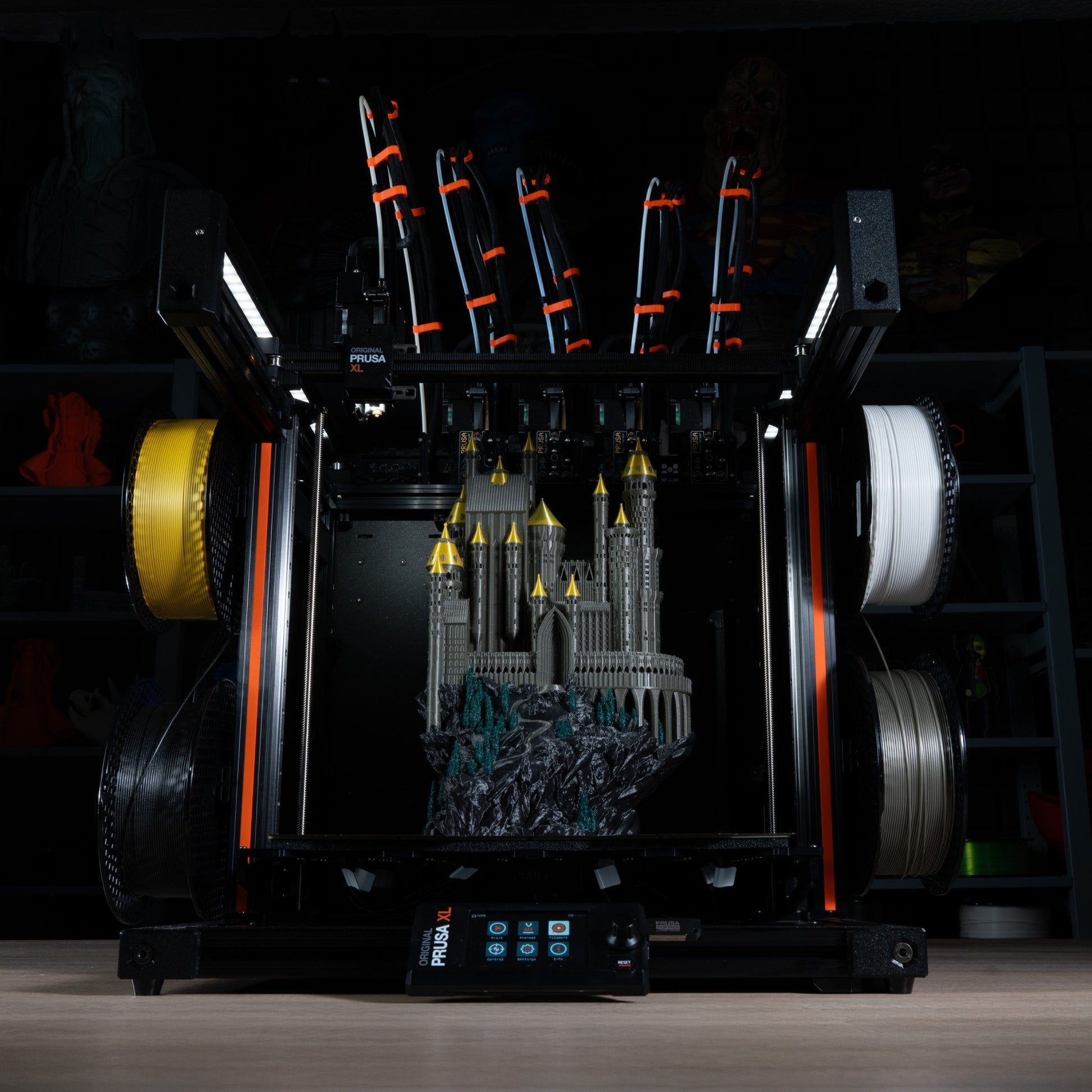

The Original Prusa XL's toolchanger technology fundamentally transforms multi-material 3D printing. Unlike traditional single-nozzle systems that waste filament during colour and material changes, the Prusa XL dedicates each toolhead to its own material. Keep up to five filaments loaded simultaneously and print complex multi-material objects faster with little to no waste.

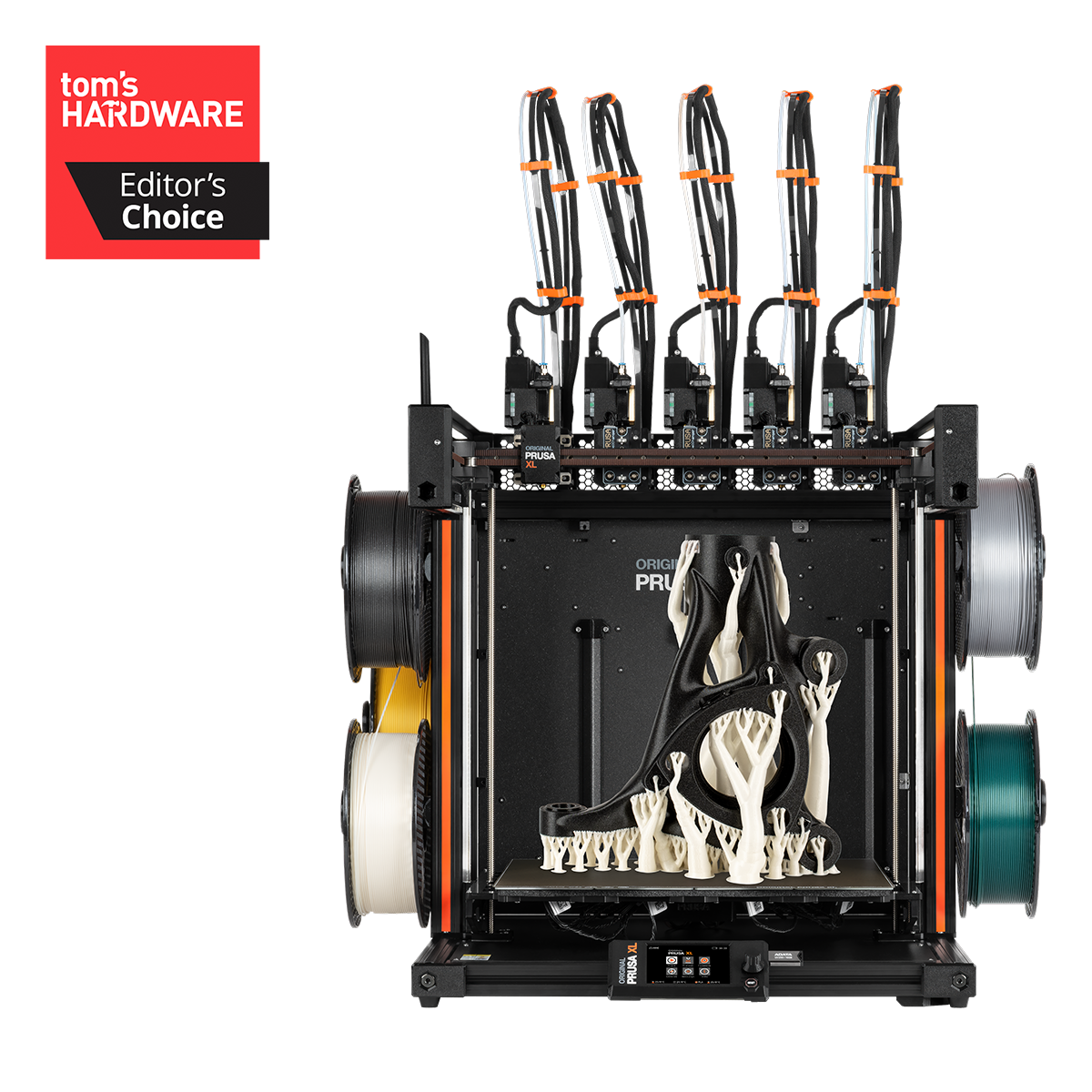

Original Prusa XL toolchanger mechanism close-up

Lightning-Fast Tool Changes

  • Zero-waste printing with wipe-to-infill and minimal purges
  • Material versatility — combine rigid, flexible, and soluble supports
  • Speed advantage on complex jobs
  • Scalable configuration — upgrade from 1 to 2 or 5 toolheads

Spool Join Technology

Spool Join automatically switches to another loaded spool when the current one runs out, enabling uninterrupted long prints. Load up to five 2kg spools and produce a 10kg model without intervention.

Original Prusa XL Spool Join feature

Massive 360×360×360mm Build Volume

Over four times the capacity of the MK4. Ideal for automotive components, architectural models, production tooling, and full-scale prototypes — with consistent accuracy across the entire area.

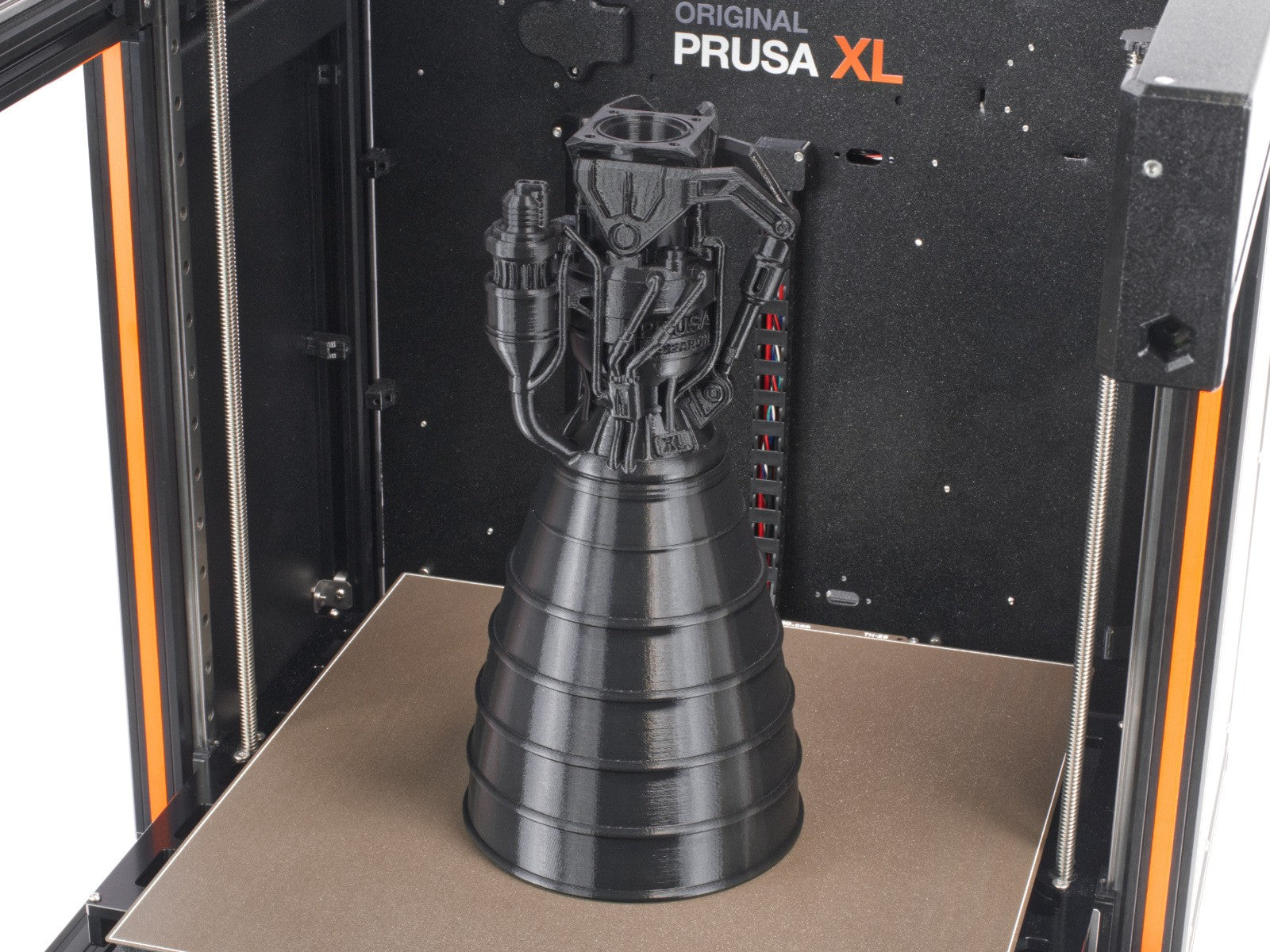

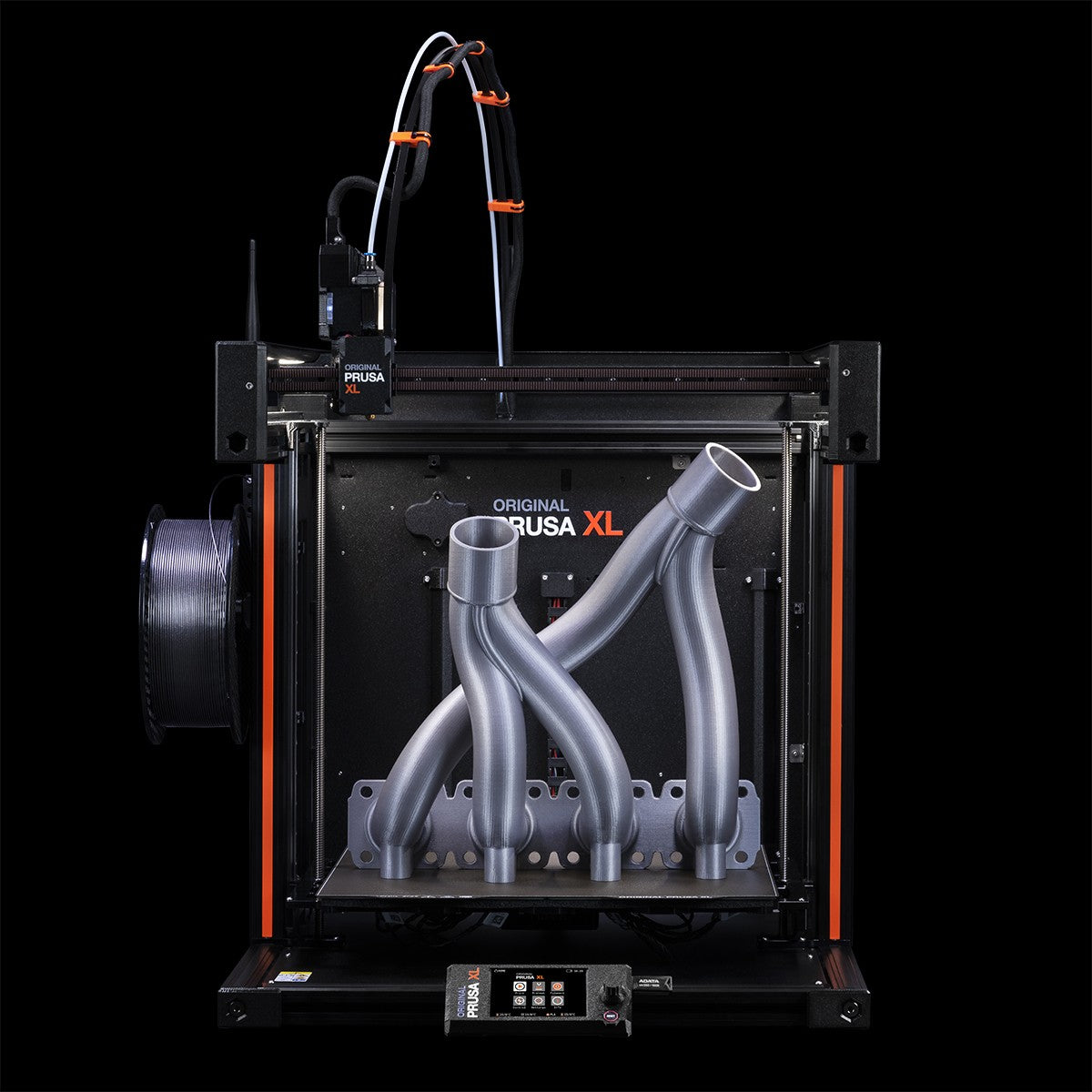

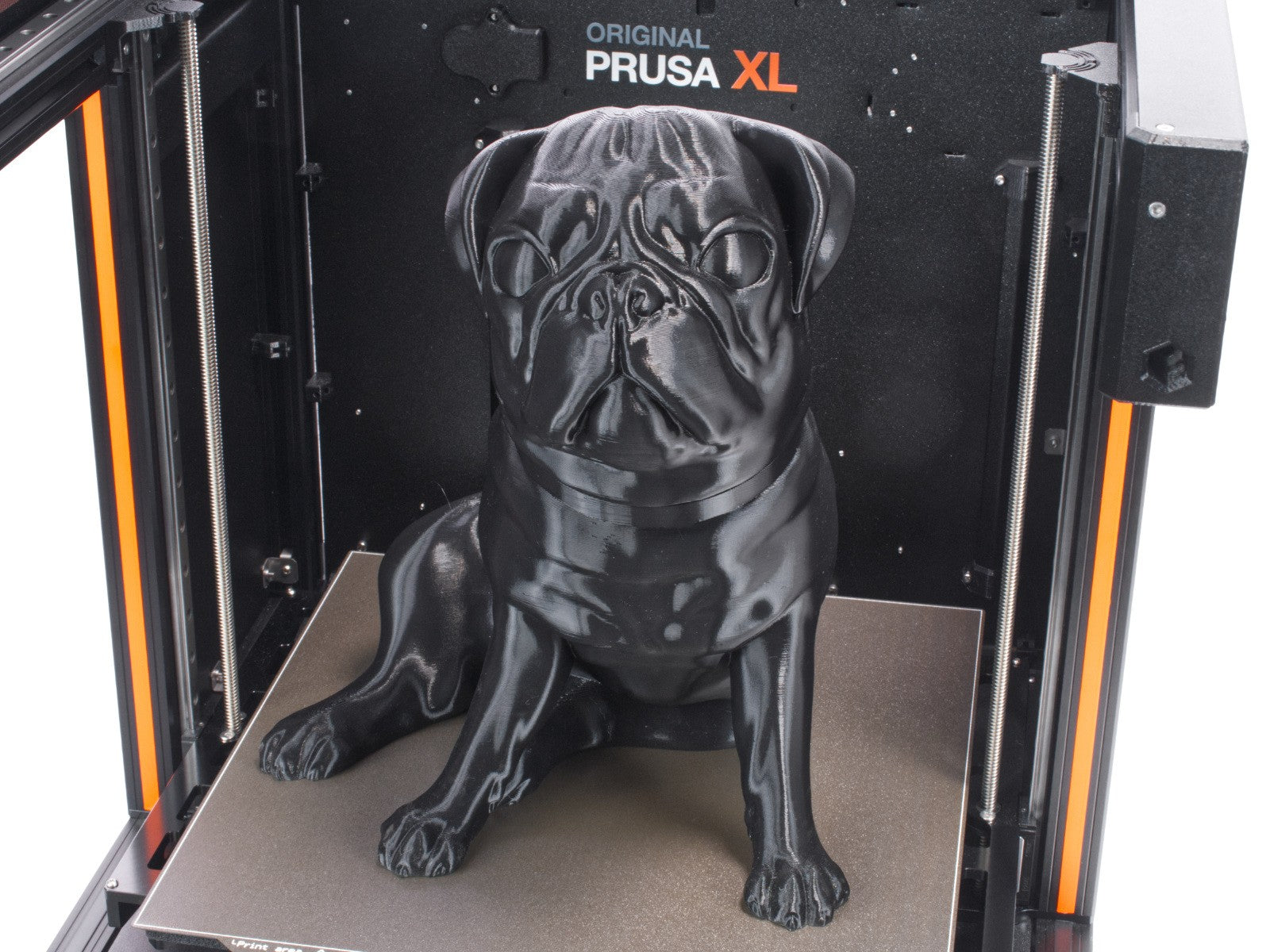

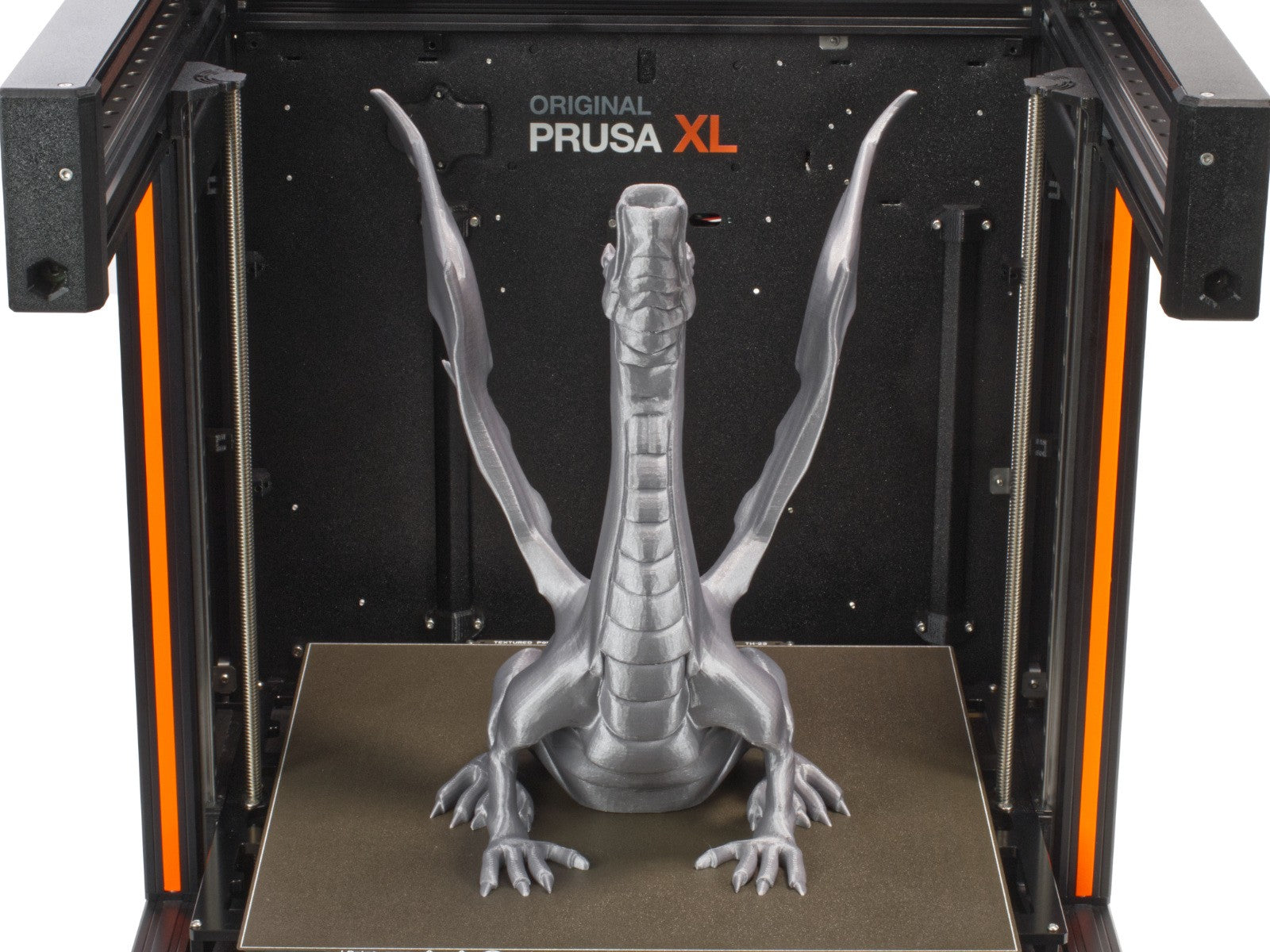

Original Prusa XL printing large precise parts

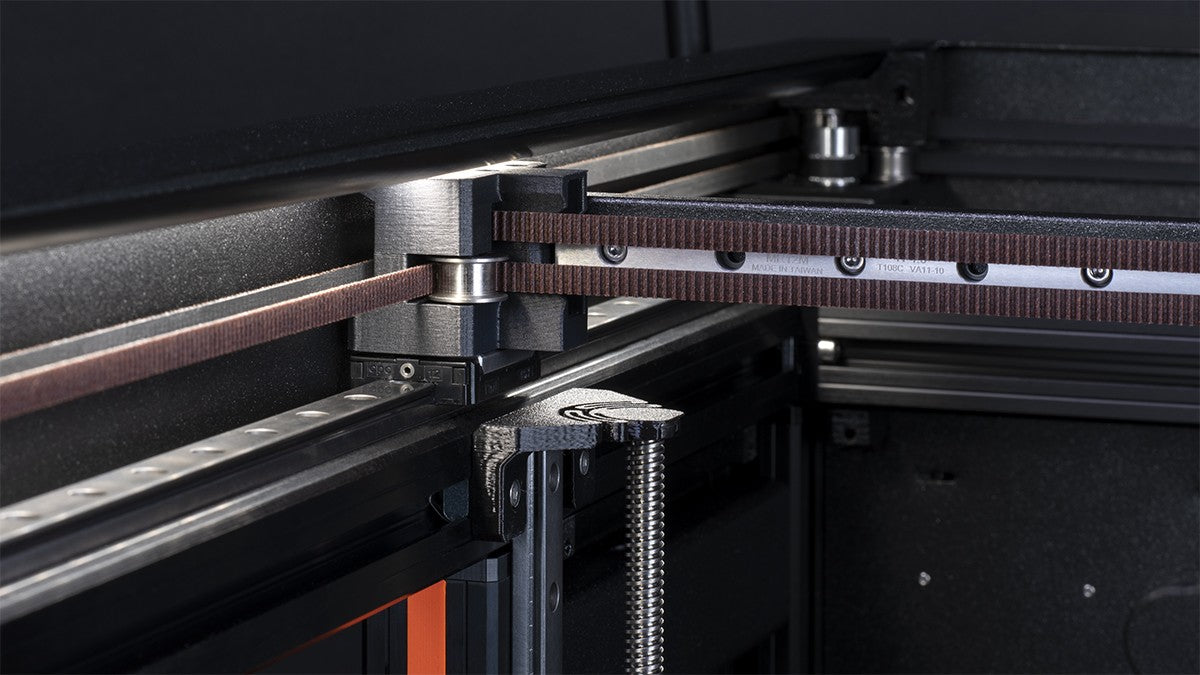

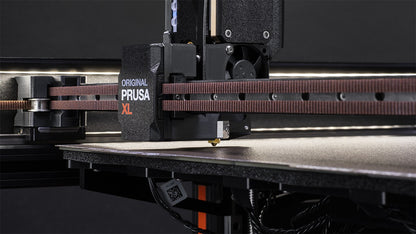

CoreXY Precision at Scale

CoreXY minimises vibrations and maintains precision across the large build space, delivering dimensional accuracy and surface finish that rivals smaller machines.

Advanced Motion Control

  • Input Shaper to reduce ringing at speed
  • Pressure Advance for clean corners
  • Phase Stepping for quiet operation
  • Stealth Mode for noise-sensitive environments

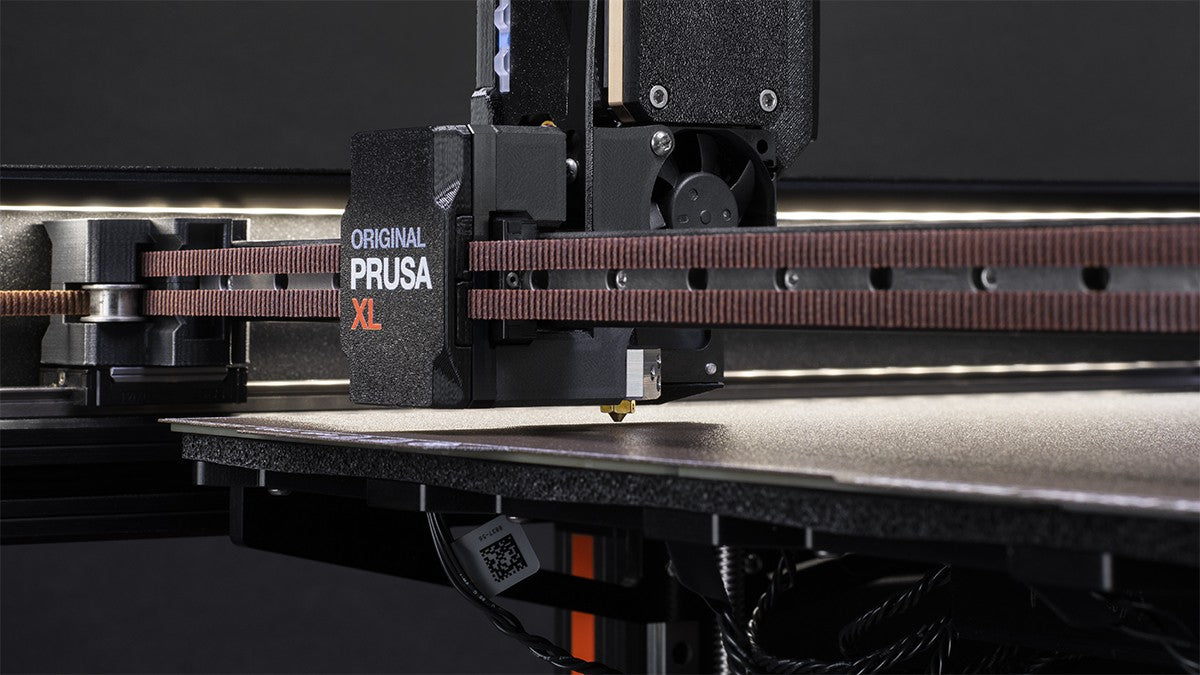

High-speed CoreXY printing results on Original Prusa XL

Perfect First Layer Every Time

Loadcell-based first layer sensing measures force directly for a pristine first layer on any sheet type across the full 360×360mm bed.

Perfect first layer demonstration on Original Prusa XL

Segmented Heatbed Technology

Sixteen individually controlled tiles prevent thermal deformation and improve flatness and thermal uniformity. Unused tiles can be switched off to save energy.

Original Prusa XL segmented heatbed tiles

Proven Double-Sided Print Sheets

Removable spring steel sheets with multiple textures to suit different materials.

Nextruder – Next Generation Direct Drive Extruder

Zero-backlash gearbox and large drive gear for consistent filament control, quick-change nozzles, and excellent flexible filament handling.

Material Compatibility

Handles PLA, PETG, ASA, ABS, TPU/TPE, Nylon, Polycarbonate, PP, PCCF, PVA, BVOH, and composites.

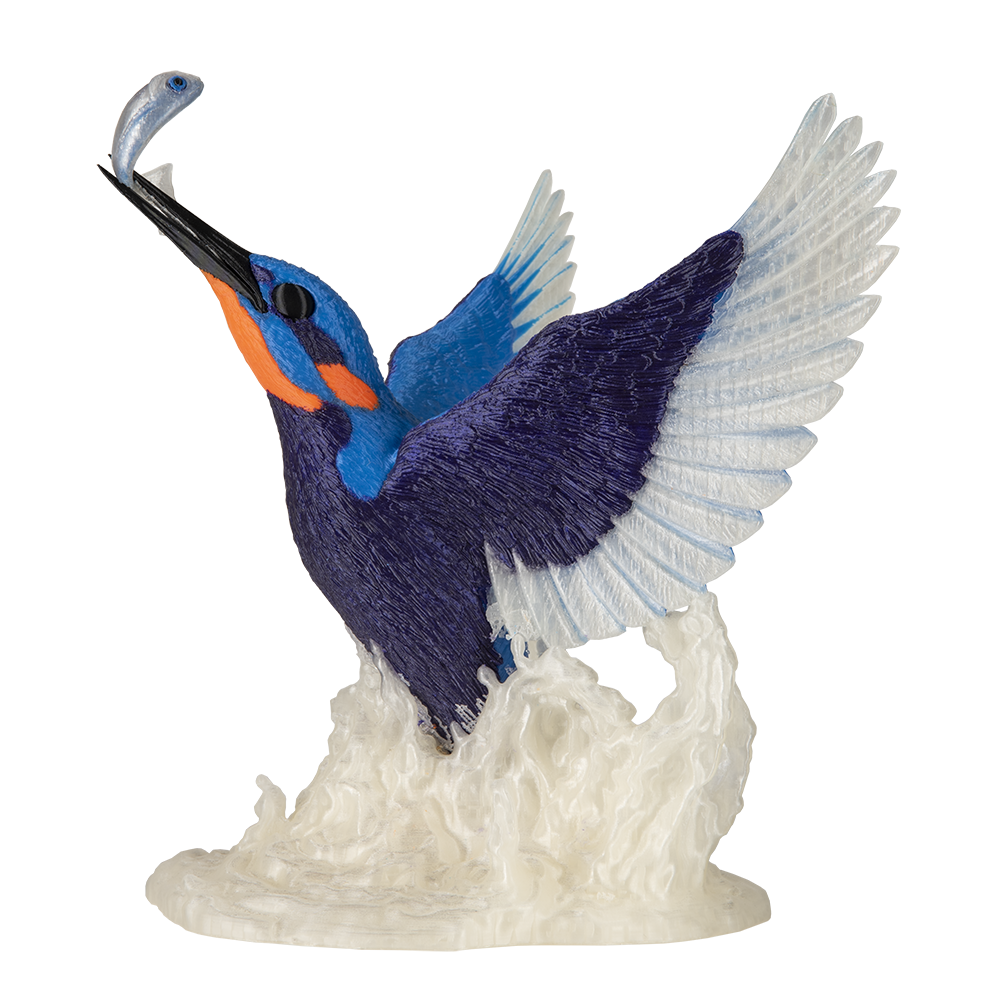

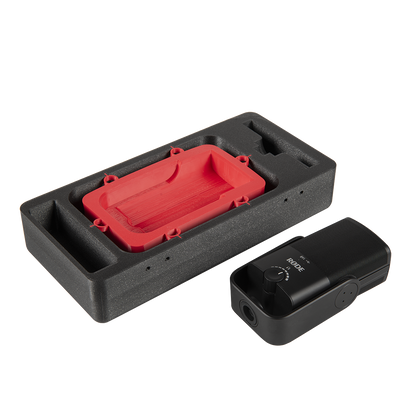

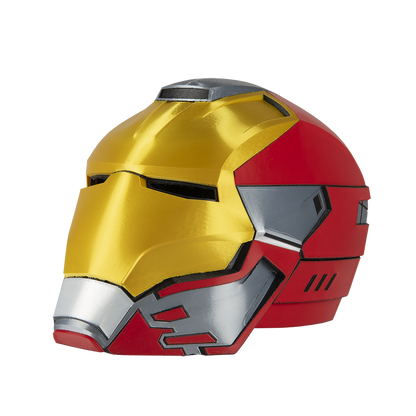

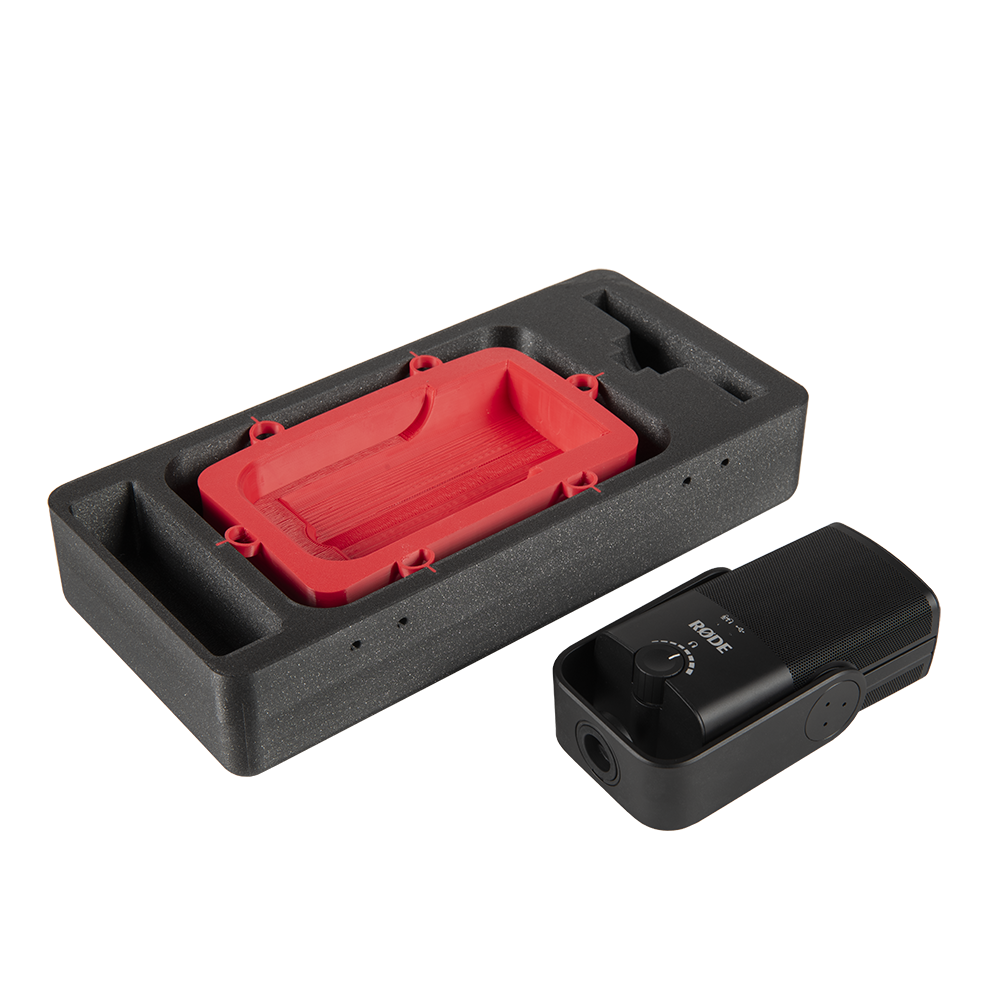

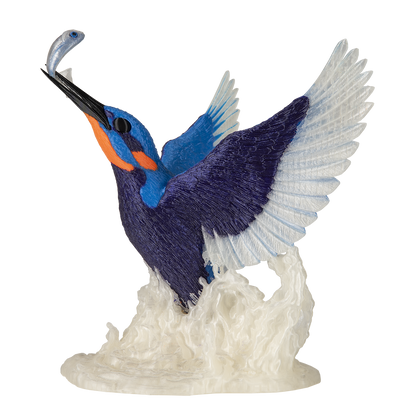

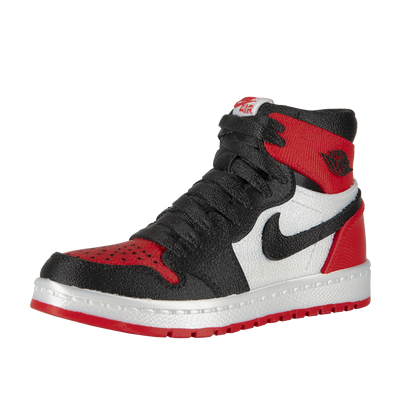

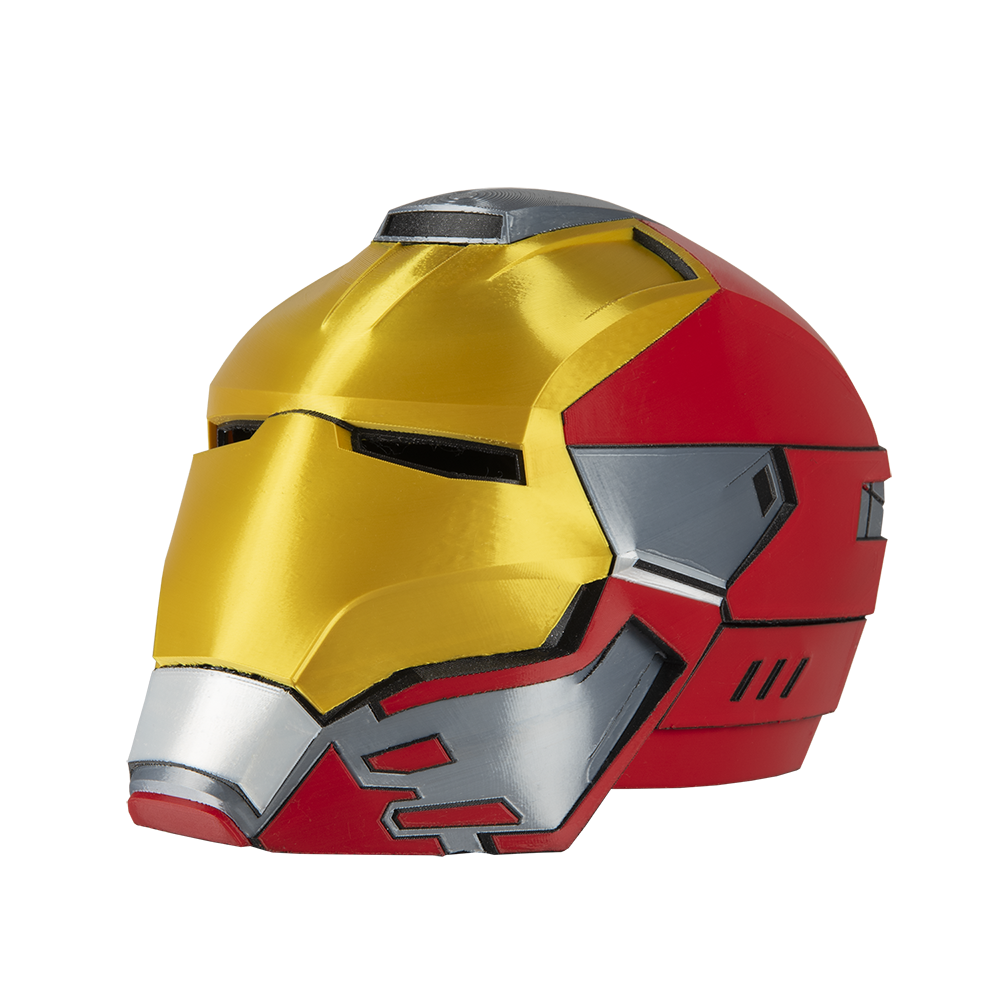

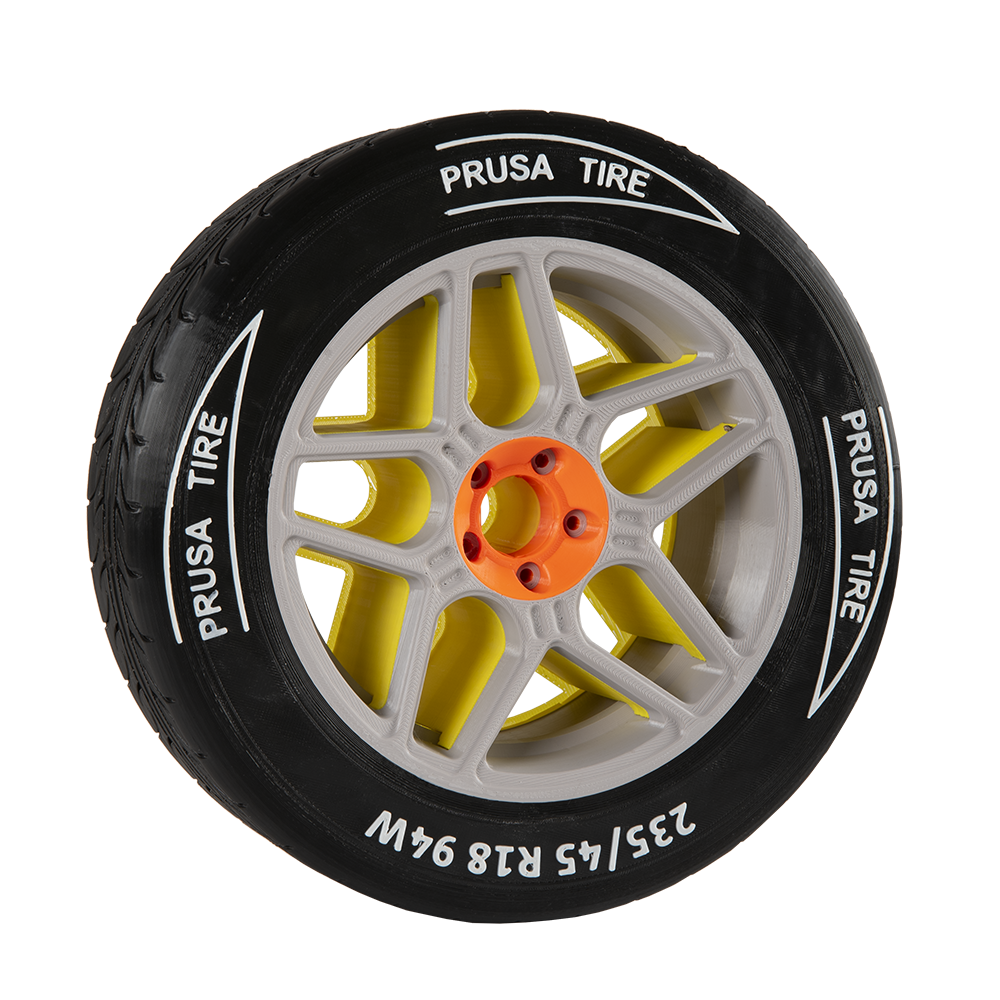

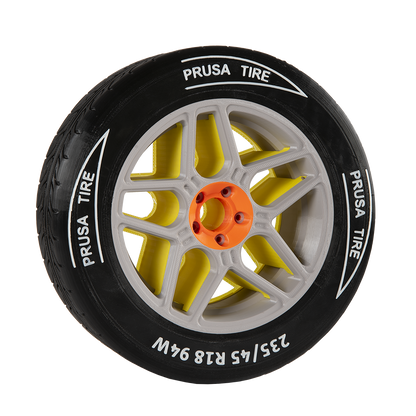

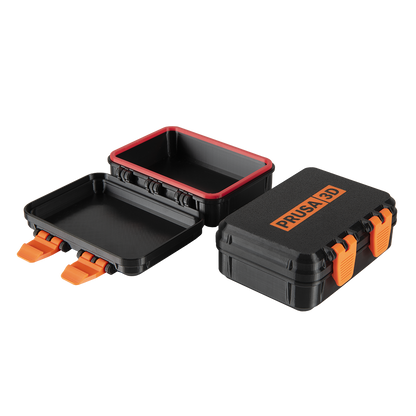

Original Prusa XL prints with a wide range of materials Combining flexible and rigid materials on Original Prusa XL

Smart Connectivity & Control

Prusa Connect Cloud Platform

Upload G-code via browser, schedule jobs, monitor via webcam, and manage multiple printers securely.

Original Prusa XL Wi-Fi and Prusa Connect dashboard

Colour LCD Touchscreen

4.3″ colour LCD with touch and rotary control, G-code previews, QR code docs, and Cancel Object.

Original Prusa XL colour LCD touchscreen UI

Australian Industry Applications

Engineering & Manufacturing

Functional prototypes, jigs, tooling, and end-use parts at scale. Multi-material enables rigid + flexible combos and soluble supports.

Common: PETG, ASA, PCCF

Automotive & Motorsport

Full-scale interior mockups, ducts, brackets, and custom components. Carbon-fibre reinforced materials for strength.

Common: ASA, PCCF, Nylon

Architecture & Construction

Large massing models and facade studies in one piece; integrate windows and cladding in a single print.

Common: PLA (smooth), PETG

Product Design & Development

Full-scale functional prototypes with overmoulded grips, seals, and soft-touch sections.

Common: PLA, PETG, TPU

Education & Research

User-friendly workflow and open-source firmware for advanced experimentation.

Common: PLA, PETG

Medical & Healthcare

Large anatomical models and training aids; combine rigid and flexible sections.

Common: PETG, TPU, PVA

Original Prusa XL Enclosure (Optional)

Essential for materials prone to warping. Provides stable chamber temps, HEPA filtration, and integrated control via the printer touchscreen.

Video Overview

Power-Loss Recovery

Hardware-based recovery stores the last extruder position and resumes precisely after an outage — even for network prints.

Original Prusa XL power-loss recovery resumes print

Open Source & Privacy Focused

Fully offline operation available with no limitations. Open firmware on GitHub; you control shared data when using Prusa Connect.

Original Prusa XL designed for offline use

Continuous Improvement Through Updates

Long-term firmware support and feature releases keep the platform improving over time.

Original Prusa XL actively updated with new firmware

Technical Parameters

View full parameters
Build Volume & Physical
Build Volume360 × 360 × 360 mm (14.17 × 14.17 × 14.17 in)
Printer Dimensions700 × 900 × 720 mm (27.6 × 35.4 × 28.3 in)
ArchitectureCoreXY
Toolchanger & Extruder
Toolheads1, 2, or 5 (upgradeable)
ExtruderNextruder, direct drive with Loadcell
Filament Diameter1.75 mm
Nozzle0.4 mm standard, quick-change
Layer Height0.10–0.30 mm (nozzle dependent)
Heatbed & Surfaces
HeatbedSegmented modular bed (16 tiles)
Print SurfaceRemovable double-sided spring steel sheets
Performance
Motion ControlInput Shaper, Pressure Advance
Phase SteppingYes (quiet operation)
Auto Bed LevellingLoadcell sensing (all surfaces)
Power-Loss RecoveryHardware-based
Spool JoinAutomatic spool switching
Connectivity & Control
ConnectivityWi-Fi (ESP), Ethernet, USB
CloudPrusa Connect (optional)
Display4.3″ colour LCD with rotary knob
Offline OperationFully supported
Software & Files
SlicerPrusaSlicer
File TypesG-code, STL, OBJ, 3MF
Materials
SupportedPLA, PETG, ASA, ABS, TPU/TPE, Nylon, PC, PP, PCCF, PVA, BVOH, composites
Vendor Lock-InNone — any 1.75 mm filament
Optional Accessories
EnclosureOriginal Prusa XL Enclosure (HEPA)
Toolhead UpgradesUpgrade kits to 2 or 5 heads

Frequently Asked Questions

What is the Prusa XL bed size?

360 × 360 mm with 360 mm Z height (total 360 × 360 × 360 mm), over four times the MK4’s volume.

Can I upgrade from 1 toolhead to 5 toolheads later?

Yes — purchase upgrade kits and install using the official documentation.

Do I need the Prusa XL enclosure?

Not for PLA/PETG/PCCF. Recommended for ABS, ASA, Nylon, PC, and PP; adds HEPA filtration.

Is the XL suitable for flexible filaments?

Yes — direct drive Nextruder handles TPU/TPE reliably for soft-touch parts.

Can the XL run completely offline?

Yes — full offline operation with no feature limitations.
