Formlabs Draft Resin V2 (Form 3) - 1L is the fastest-printing material in the Formlabs library, specifically designed for rapid prototyping and high-throughput model production on the Form 3 series. This reformulated version allows for printing up to four times faster than standard resins whilst maintaining high dimensional accuracy. Consequently, it is the ideal choice for Australian engineers and designers who require same-day iterations and functional models that do not compromise on the rigid mechanical properties expected from SLA technology.

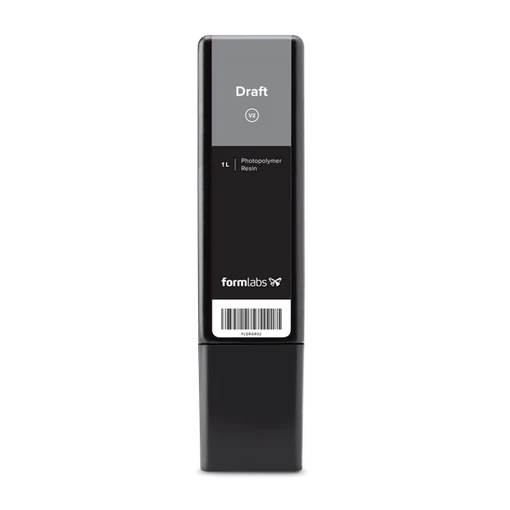

Formlabs Draft Resin V2 (Form 3) - 1L cartridge for rapid prototyping
Formlabs Draft Resin V2 (Form 3) - 1L cartridge designed for high-speed SLA printing.

High-Speed Prototyping with Formlabs Draft Resin V2 (Form 3) - 1L

The Formlabs Draft Resin V2 (Form 3) - 1L is engineered to achieve a Shore Hardness of 82D, providing the rigidity required for vacuum forming and initial fit testing. By utilising the 200-micron print setting, users can produce large-scale parts in a fraction of the time required by Grey or Clear resins. Furthermore, the material's low odour and easy-to-wash properties streamline the workshop workflow, allowing for faster post-processing and immediate evaluation of design iterations.

Comparison of 3D prints using Draft Resin V2 at 200 microns
Detailed prototypes printed at high speed using Draft Resin V2.

Technical Performance and Material Specifications

Whilst optimised for speed, the material maintains the mechanical integrity required for functional testing. Below are the properties for parts post-cured at 60°C for 5 minutes:

Mechanical PropertyValue (Post-Cured)
Shore Hardness82D
Ultimate Tensile Strength47 MPa
Tensile Modulus2.3 GPa
Flexural Modulus2.0 GPa
Heat Deflection Temp @ 0.45 MPa73°C
Shore Hardness scale comparing Formlabs materials
Shore Hardness comparison showcasing the 82D rigidity of Draft Resin V2.

Streamlined Workflow for Professional Studios

The Formlabs Draft Resin V2 (Form 3) - 1L enables a seamless transition from CAD to physical model. Parts are easily removed from the build platform and require minimal support cleanup due to the material's balanced strength. Because the resin is highly reactive to the 405 nm laser, it is essential to store the 1L cartridge in a cool, dry environment. This material is a staple for Australian dental labs and product design firms looking to maximise their daily print volume.

Orthodontic models printed in Formlabs Draft Resin V2
High-throughput dental and orthodontic models printed in Draft Resin V2.
