FlashForge Adventurer 5M 3D Printer – 600mm/s CoreXY Speed
CoreXY speed and precision at a price point schools, studios, and workshops can actually afford.

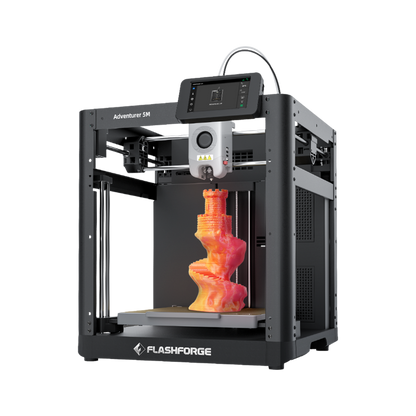

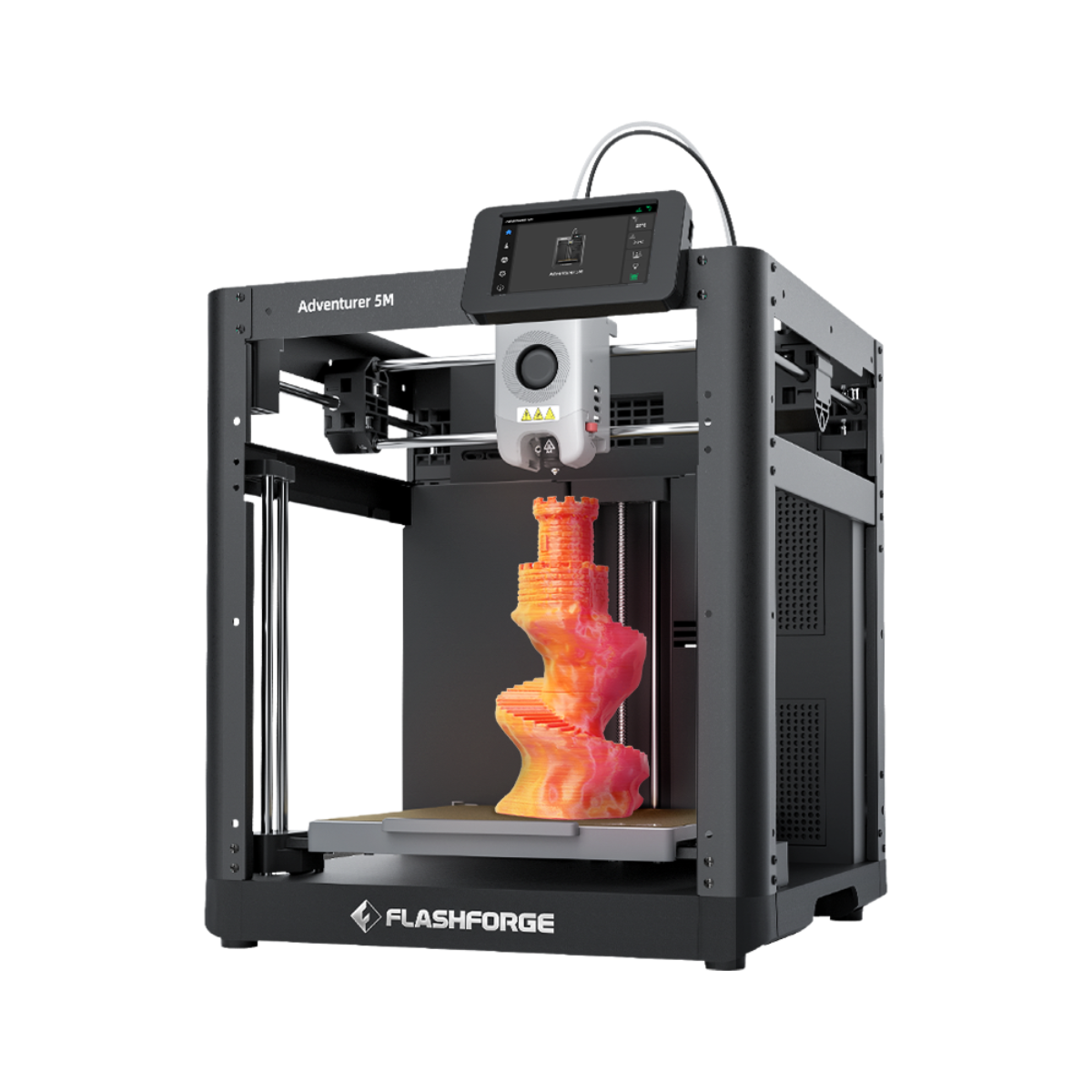

The Adventurer 5M brings industrial kinematics to the desktop without the industrial price tag. You get a true CoreXY motion system capable of 600 mm/s travel, 20,000 mm/s² acceleration with vibration compensation, quick-swap nozzles that change in under 30 seconds, and one-click auto-levelling across the entire 220 mm build area. The open-frame metal chassis keeps the footprint compact (363 × 376 × 413 mm) so it fits on a classroom bench or studio workstation, while the PEI-coated flex plate ensures PLA, PETG, and TPU parts release cleanly without glue or tape. Wi-Fi/Ethernet connectivity, filament runout detection, and power-loss recovery round out a platform built for reliable day-to-day prototyping.
Why The Adventurer 5M is the Best Value 600mm/s 3D Printer
CoreXY Advantage: True CoreXY motion delivers up to **6x faster prints** and smoother finishes than traditional bed-slingers.
CoreXY Motion & Vibration Compensation

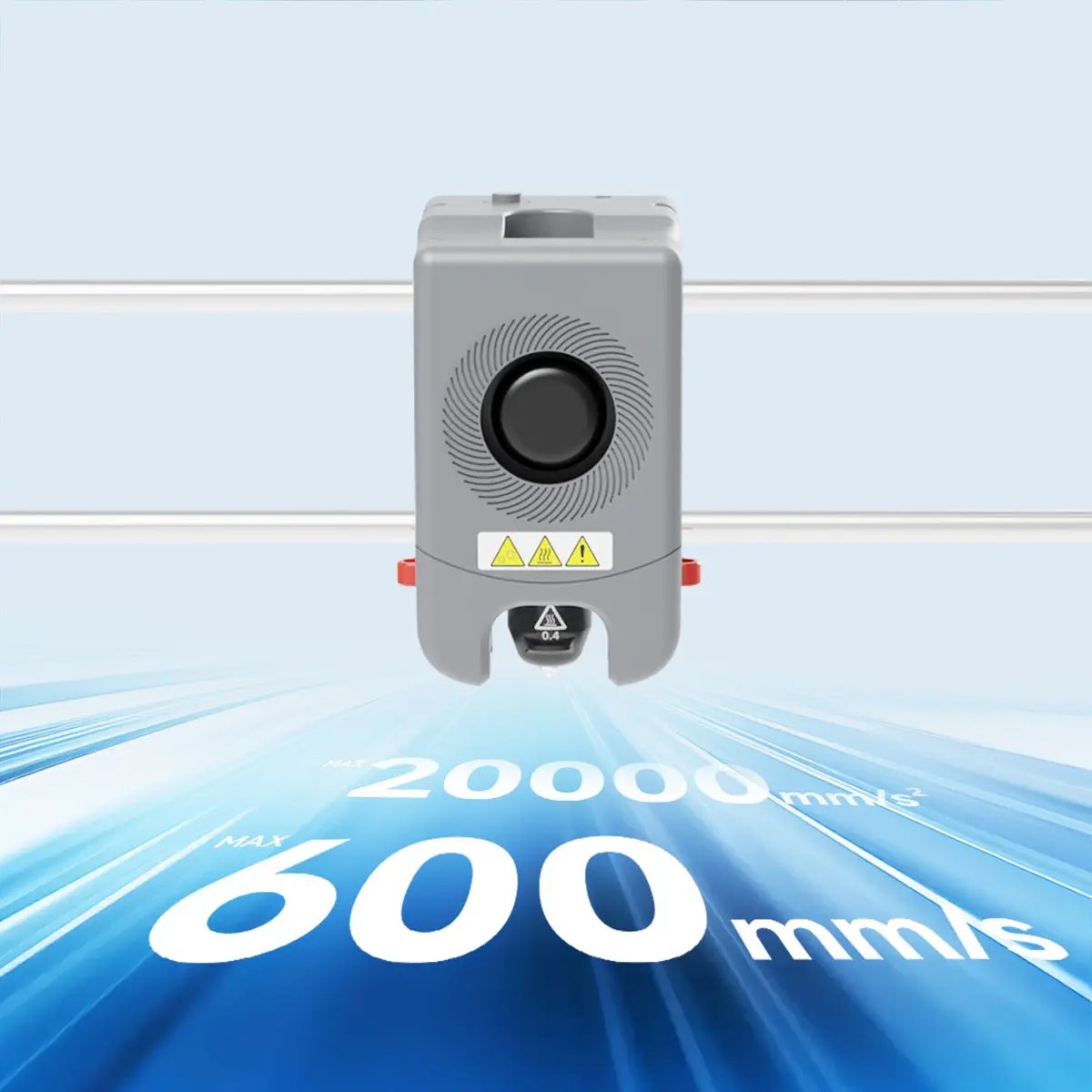

Twin belts drive X and Y from stationary motors, minimizing moving mass. Acceleration hits **20,000 mm/s²**, and built-in resonance compensation keeps walls smooth and ghost-free, even when infill screams along at 300 mm/s.
Intelligent Quick-Swap Nozzles
Swap between 0.4 mm (standard) and optional 0.6/0.8 mm high-flow nozzles in half a minute—no tools required. **The intelligent chip** loads the correct extrusion profile automatically, eliminating manual firmware changes.
One-Click Auto-Levelling & PEI Flex Plate
Achieve a flawless first layer, every time. A pressure sensor probes the bed, builds a mesh, and applies corrections in real time so first layers stick regardless of plate wear. The textured PEI sheet grips prints at temperature and releases with a flex once cool.

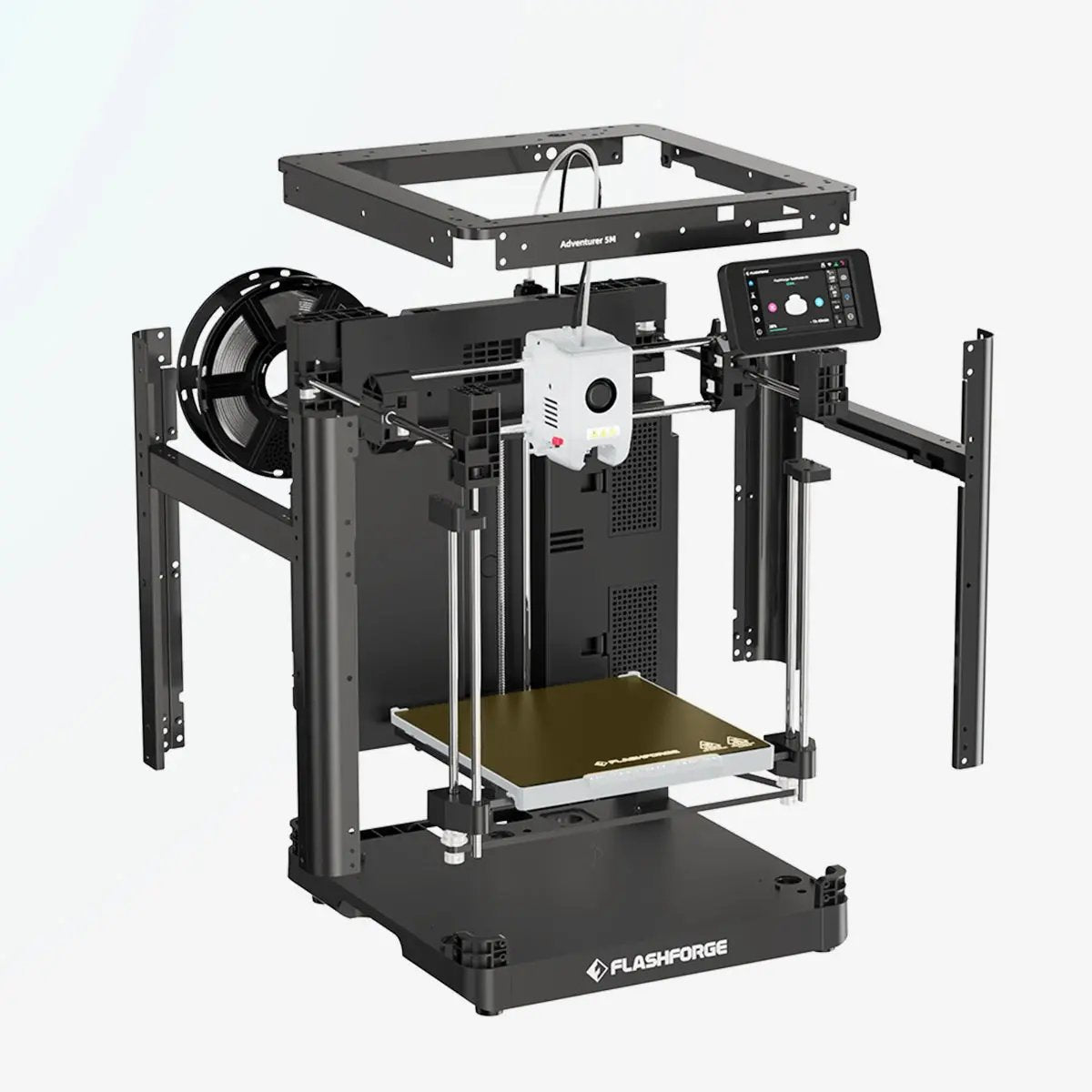

Open-Frame Design & Access
The open design provides easy access for students or makers to load filament, retrieve parts, and observe the build. **Note:** For printing engineering materials like ABS/ASA, we recommend adding an aftermarket enclosure or dryer to stabilize chamber temperatures and manage fumes.

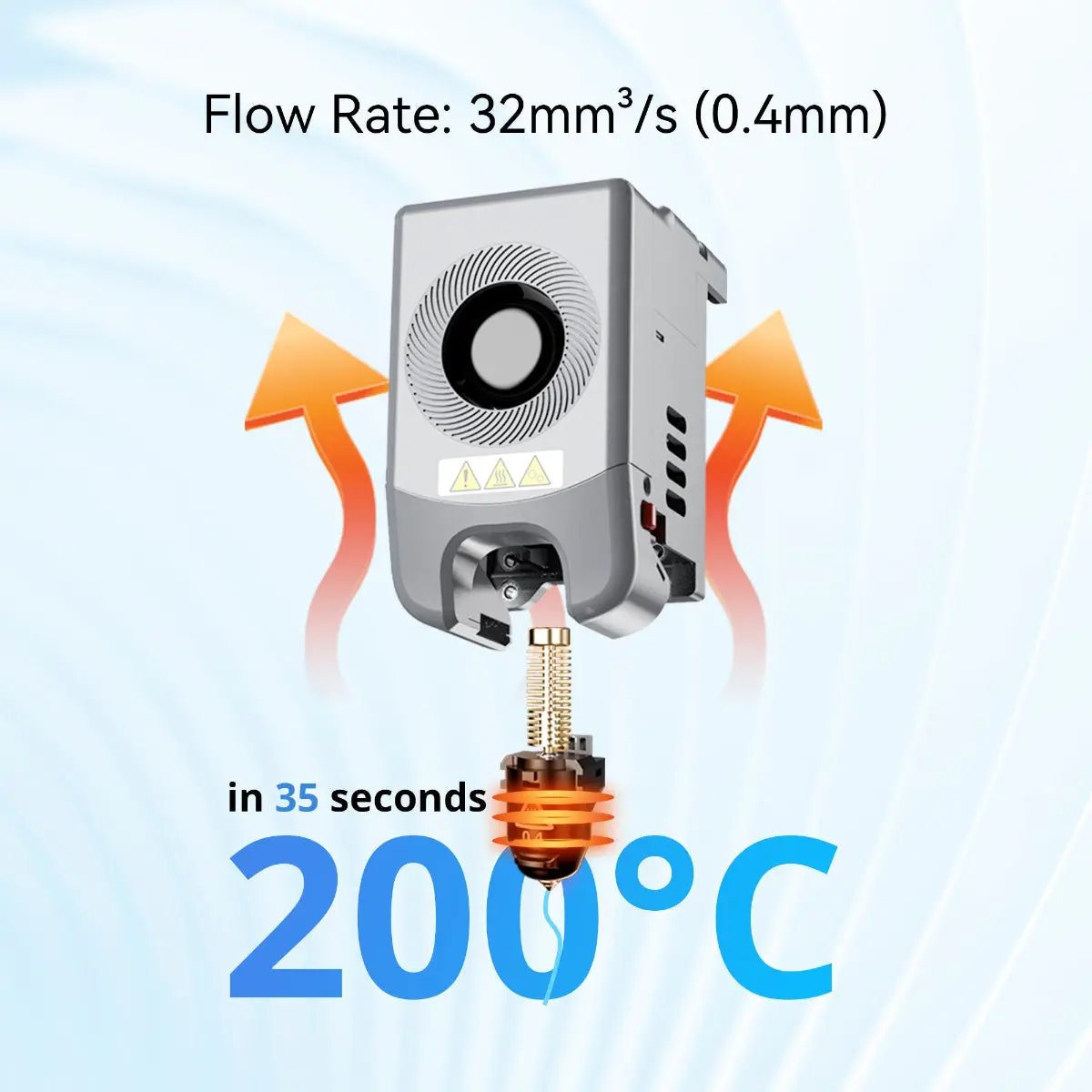

Versatile Material Range (280°C)
All-metal hot end reaches **280 °C** and the bed hits 100 °C, covering PLA, PLA-CF, PETG, PETG-CF, and TPU (95A) out of the box. ABS/ASA are possible with an enclosure or dryer to stabilise temperatures.
Why Buy the FlashForge Adventurer 5M from Add Labs (Australia)
- RCM Certified: Australian electrical compliance (AS/NZS Type I plug) guaranteed.
- Local Support: Technical support, warranty claims, and spare parts managed directly by our Sydney-based team.
- Fast Local Spares: Access to nozzles, PEI plates, and other parts from local Sydney stock for quick turnaround.
- Optional Enclosure Kit: We supply the official enclosure kit which can be bundled for printing ABS/ASA.
Australian Applications
STEM & Design Labs
Teach CAD-to-print workflow with one-click levelling and an open frame that makes demonstrations easy.
Product Studios
Iterate housings and fixtures overnight; swap to larger nozzles when you need draft parts in hours, not days.
Makerspaces
Quick nozzle changes, PEI flex plate, and touch-screen wizards keep communal printers productive and easy to supervise.
Print Farms
Deploy multiple units for the cost of one premium printer, run PLA/PETG jobs in parallel, and rely on power-loss recovery to save long prints.
Technical Parameters
View full specifications
| Manufacturer Part No. (MPN) | 10000894001 |
| Global Trade Item No. (GTIN) | [INSERT GTIN HERE] |

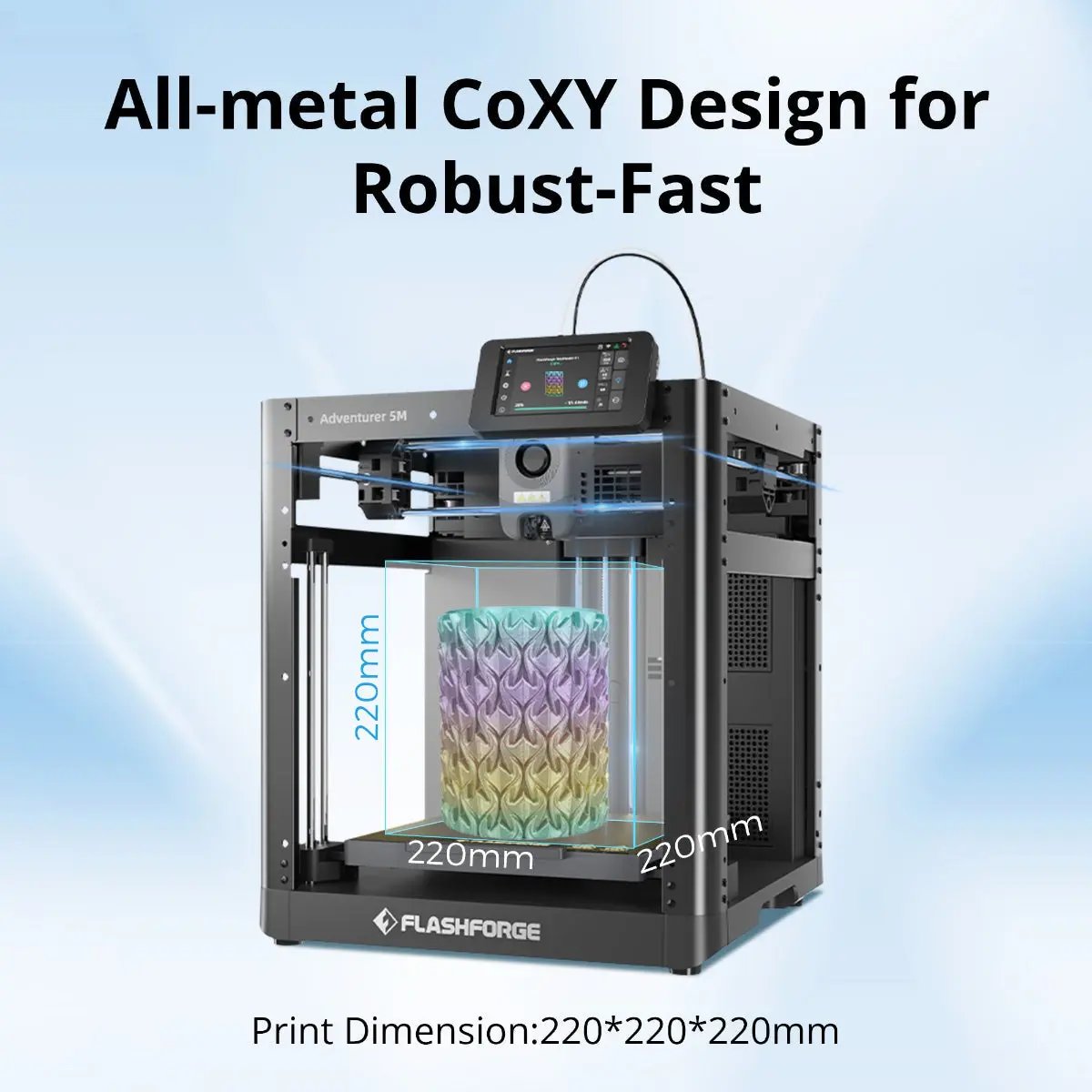

| Build Volume | 220 × 220 × 220 mm |
| Motion System | CoreXY aluminium chassis |
| Speed / Acceleration | Up to 600 mm/s travel, 20,000 mm/s² |
| Nozzle | 0.4 mm included; optional 0.6 / 0.8 mm quick-release (280 °C max) |
| Bed | PEI-coated flex steel, 100 °C max |
| Levelling | One-click automatic via pressure sensor |
| Materials | PLA, PLA-CF, PETG, PETG-CF, TPU (95A); ASA/ABS with enclosure |

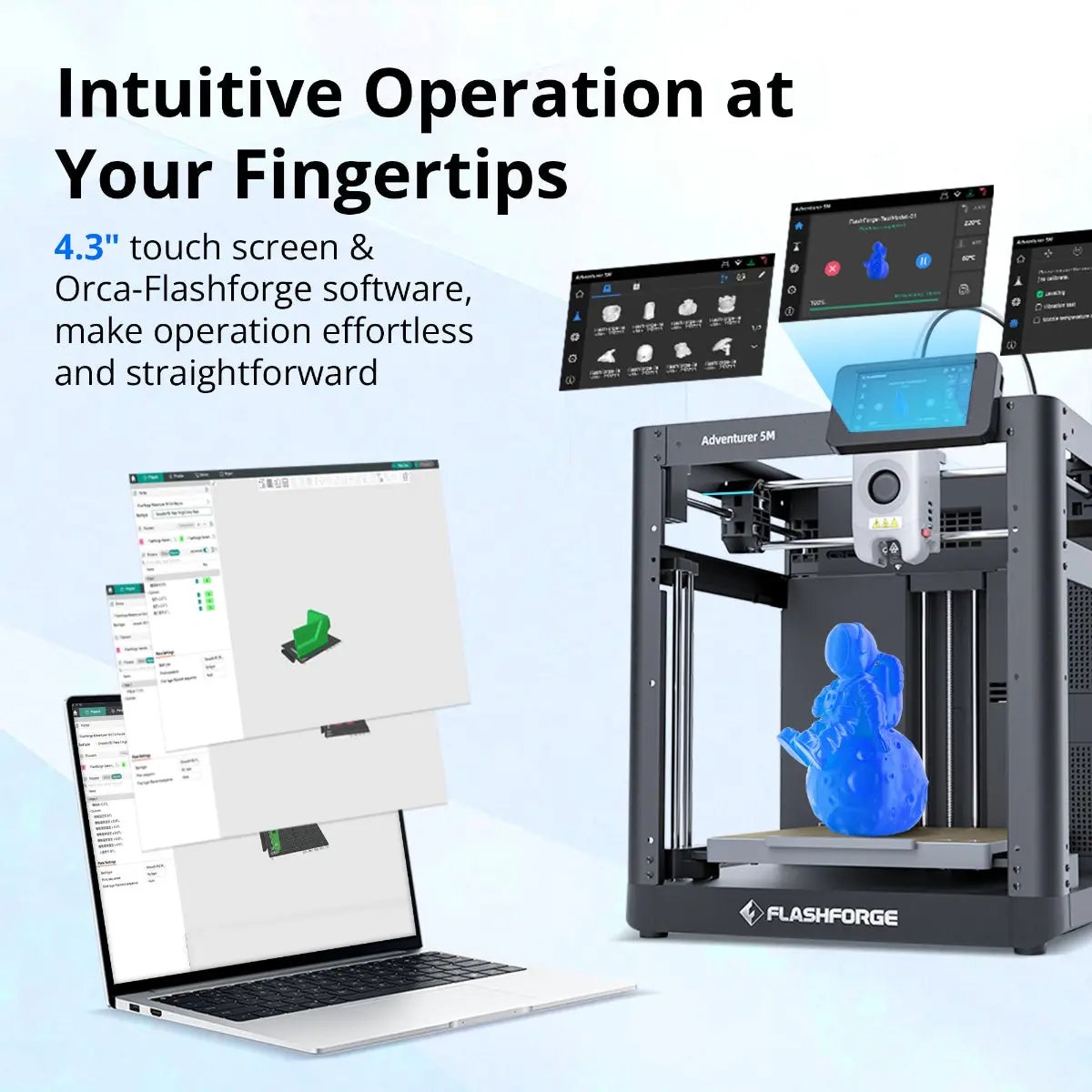

| Connectivity | Wi-Fi 2.4/5 GHz, Ethernet, USB; 4.3″ touchscreen |
| Power | 100–240 V AC, 50/60 Hz, 350 W, AU Type I plug (RCM) |
| Dimensions / Weight | 363 W × 376 D × 413 H mm; ~14 kg |
| Noise | ~50–55 dB (open frame) |
| Recovery Features | Filament runout detection; resume-after-power-loss |

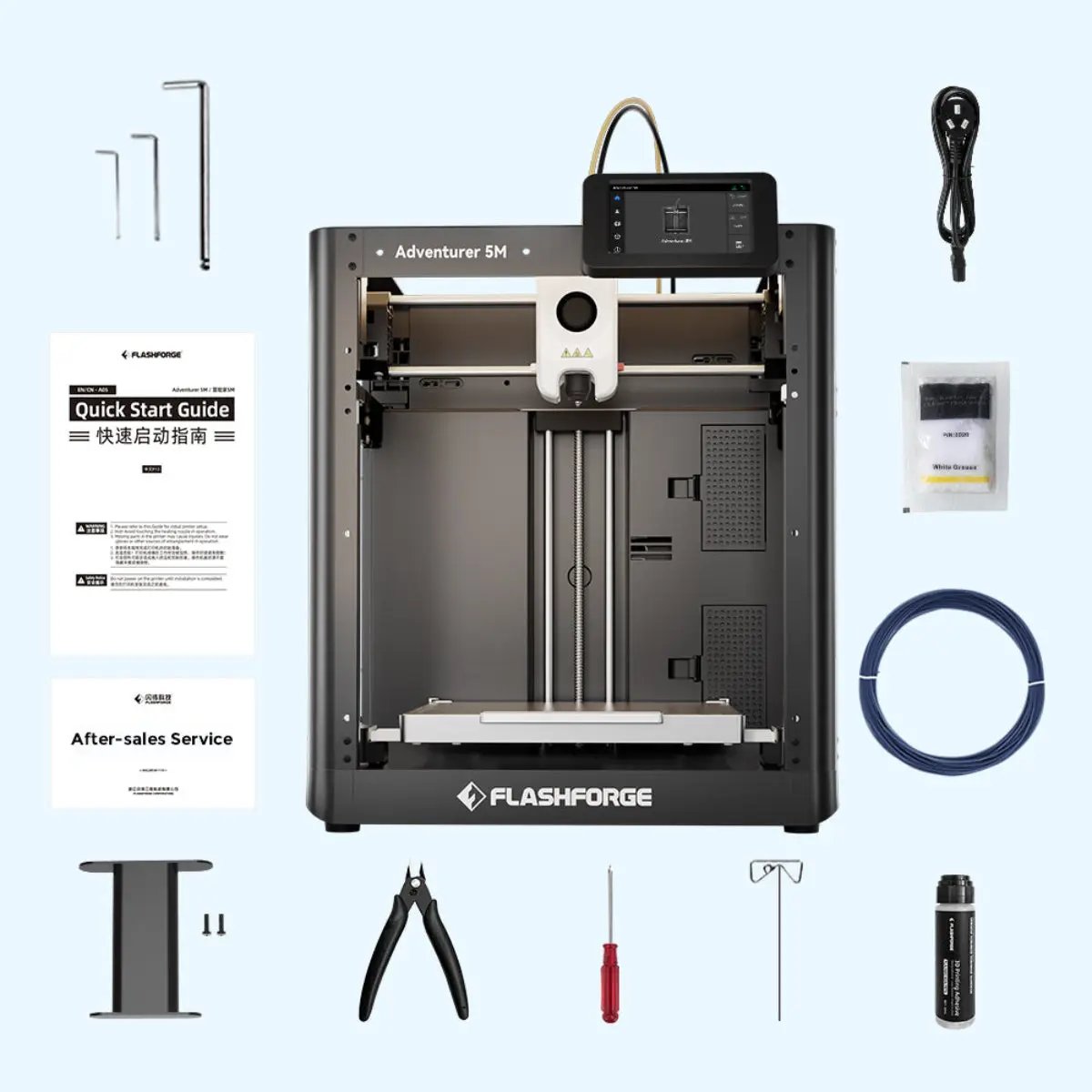

What’s in the Box
- FlashForge Adventurer 5M (assembled)
- PEI flex steel build plate
- 0.4 mm quick-release nozzle
- Sample PLA filament spool
- AU Type I power cable
- USB drive with manuals + FlashPrint
- Tool kit, filament cutter, cleaning needles
- Quick-start guide & warranty card
Frequently Asked Questions
How does the Adventurer 5M differ from the 5M Pro?
The 5M is open-frame and focuses on affordability. The 5M Pro adds a fully enclosed 50 °C chamber, HEPA/carbon filtration, and an onboard camera for remote monitoring.
Can I print ABS or ASA?
The hardware reaches the required temperatures, but you’ll need an enclosure or dryer to manage warping and fumes, as these materials require a stable, heated environment. AddLabs stocks compatible enclosures if you plan to run styrenics regularly.
Is it compliant with Australian power standards?
Yes—units sold through AddLabs include an RCM-certified PSU and AS/NZS Type I plug. Plug it straight into any 240 V outlet.
What slicer should I use?
FlashPrint 5 is included, but Cura, PrusaSlicer, and Orca profiles are widely available. The printer accepts standard G-code.
