EinStar

Einstar VEGA Handheld 3D Scanner

Einstar VEGA Handheld 3D Scanner

Regular price $0.00 AUD
Regular price Sale price $0.00 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

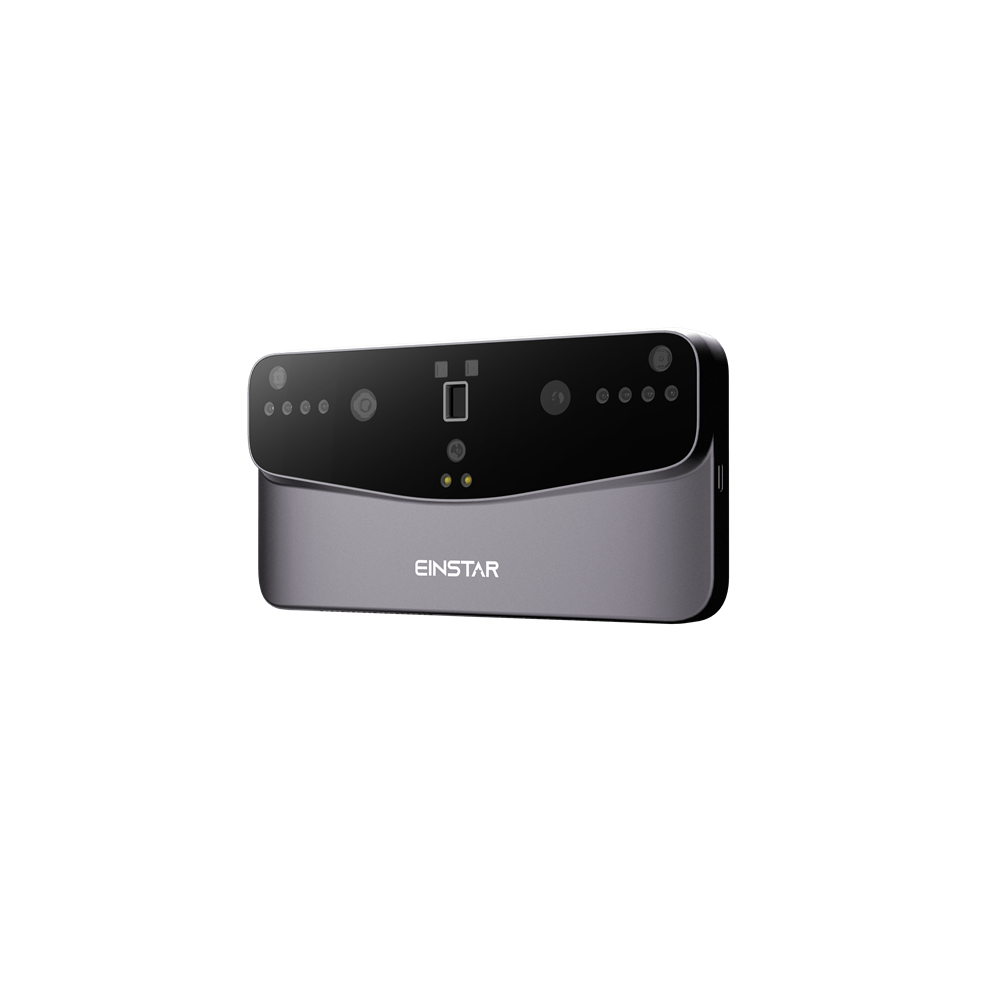

The Einstar VEGA is a budget-friendly, all-in-one 3D scanner designed for everyday users. It offers the high-quality performance of Shining3D’s technology in a compact, portable device. Despite its impressive features, it’s available at an exceptionally low price, making advanced 3D scanning accessible to a wider audience.

Key Features:

  • Lightweight and Portable: Designed to be easy to carry, making it perfect for travel.
  • High-Resolution MEMS Projector: Offers impressive detail with a resolution as fine as 0.05mm.
  • VCSEL Projector: Functions well even in direct sunlight, ensuring versatility in different lighting conditions.
  • High-Quality Imaging: Captures vivid, lifelike colors with its 48MP camera.
  • Smart Software: Provides a seamless user experience and ample storage for your scans.

EinStar Handheld 3D Scanner 1

EinStar Handheld 3D Scanner 2

EinStar Handheld 3D Scanner 3

EinStar Handheld 3D Scanner 4

EinStar Handheld 3D Scanner 5

EinStar Handheld 3D Scanner 6

EinStar Handheld 3D Scanner 7

EinStar Handheld 3D Scanner 8

EinStar Handheld 3D Scanner 9

EinStar Handheld 3D Scanner 10

EinStar Handheld 3D Scanner 11

EinStar Handheld 3D Scanner 12

EinStar Vega Specification:

Scan Mode:                                HD Mode                                                                                                                                    Fast Mode

Point Distance:                          HD Mode: 0.05mm~3mm                                                                                                      Fast Mode: 0.5mm~10mm

Working Distance:                     HD Mode: 100-250mm                                                                                                            Fast Mode: 350-1500mm

Align Mode:                                 Feature; Texture; Markers; Hybrid

Output Formats:                         ply; stl; obj; asc

Scanner Weight:                         Limited Edition: 643g                                                                                                               Regular Edition: 535g

CPU:                                             8-core CPU, 2.4GHz

Internal Hard Drive                    32GB eMMC + 512GB SSD

Interface:                                     Wi-Fi 6, USB Type C

Supplemental Light                  10

Operating Temperature:          -10~40℃

Packing Size:                             380*305*155mm

Battery:                                       Built-in 5000mAh;                                                                                                                      External power bank charging supported



Light Source:                                        HD Mode: Infrared MEMS                                                                                                      Fast Mode: Infrared VCSEL

Capture Frame:                                    HD Mode: Up to 15 fps                                                                                                            Fast Mode: Up to 20 fps

IR Camera Resolution:                        HD Mode: 2MP                                                                                                                         Fast Mode: 1.3MP

Color Camera Resolution:                 48 MP

Outdoor Scan:                                      Yes

Scanner Size:                                      180mm*95mm*26.5mm                                                                                                         (L*W*H)

RAM:                                                      32 GB LPDDR4 Memory

Touchscreen:                                       6.4″ 2K OLED

IMU:                                                       6 DoF

Operating Humidity Rage:                 0-90% RH (non-condensing)

Protection Grade:                               IP50

Power Charger:                                  65W fast Charging                                                                                                                  Supports PD/PPS Protocols

Supported OS:                                   No computer required for 3D scanning                                                                               operation;                                                                                                                                   StarVision (Data processing program on                                                                             PC) : Windows10/11 (64-bit); macOS                                                                                   Recommended PC configuration: Intel i7,                                                                           32 GB RAM; macOS 11.0 ( on Apple Chip)
