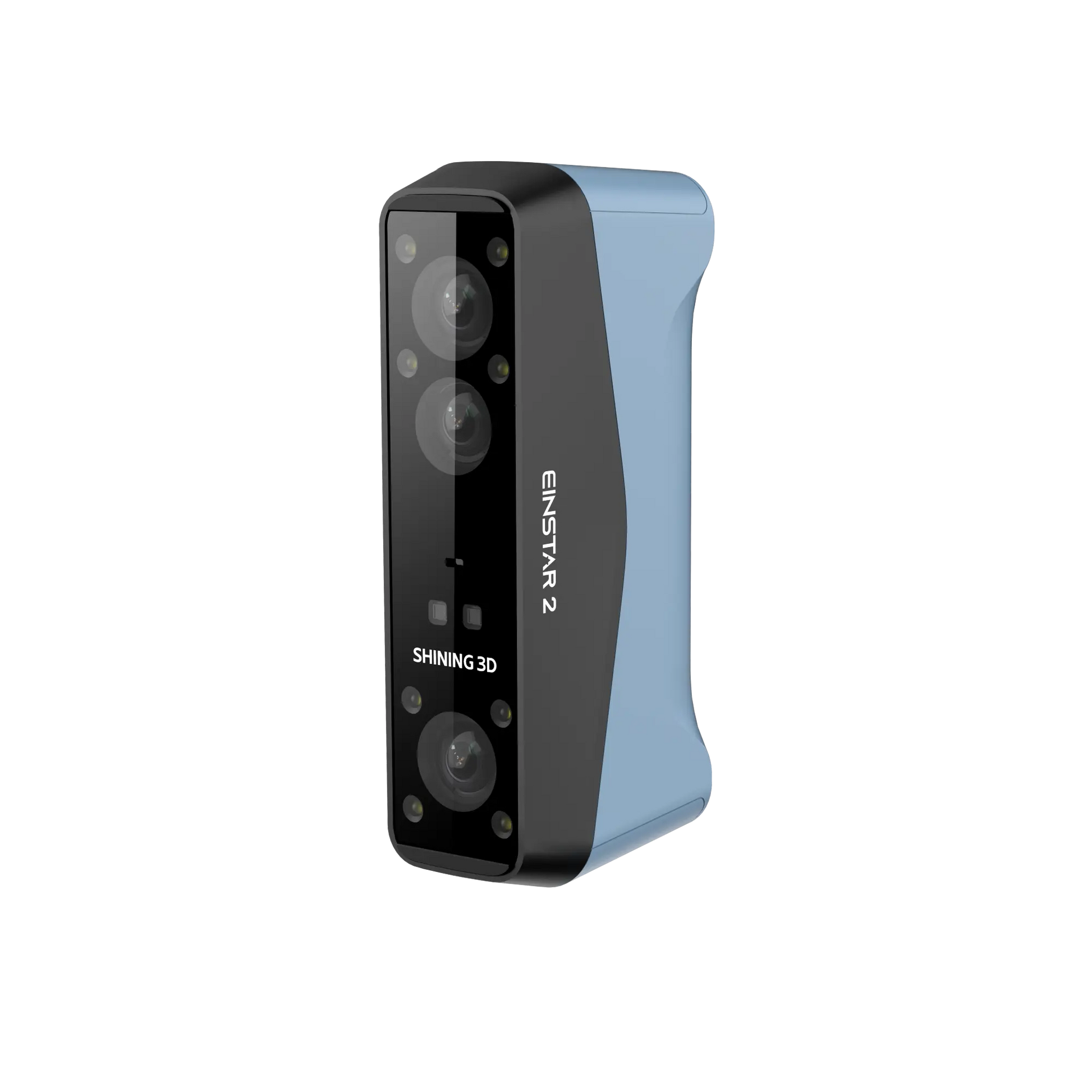

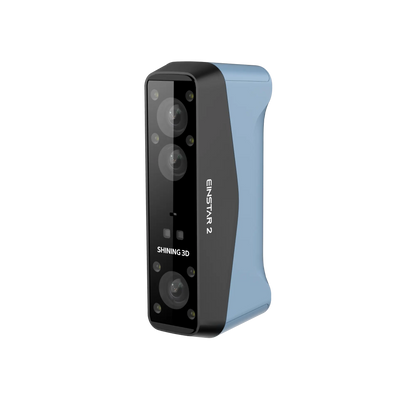

Shining 3D EINSTAR 2 Portable Wireless 3D Scanner
Still EINSTAR, Even Better – The Next Evolution in Accessible Professional 3D Scanning
The EINSTAR 2 represents a major leap forward in portable 3D scanning technology. Building on the success of the original EINSTAR, this wireless upgrade delivers smarter, lighter, and finer performance for Australian designers, engineers, artists, educators, and makers. Weighing just 420 grams with exceptional battery life, EINSTAR 2 combines professional-grade capabilities with true wireless freedom and an intuitive user experience.
🚀 Key Innovation: True wireless operation with built-in Wi-Fi, hybrid dual light source (17 parallel blue laser lines + IR VCSEL), genuine 5MP colour capture, and dramatically improved tracking – all in a lightweight 420g package that fits comfortably in your hand.
True Wireless Freedom – Scan Without Limits
Experience genuine wireless liberation with EINSTAR 2's built-in Wi-Fi module that requires no external hubs, dongles, or adapters. The integrated wireless connectivity provides stable real-time synchronisation to your PC, whilst the swappable battery system delivers up to 3 hours of continuous scanning per charge. With two batteries and a charger included, simply swap batteries to maintain uninterrupted scanning sessions. USB Type-C cable connection remains available as a backup option for stable operation if Wi-Fi interference occurs.

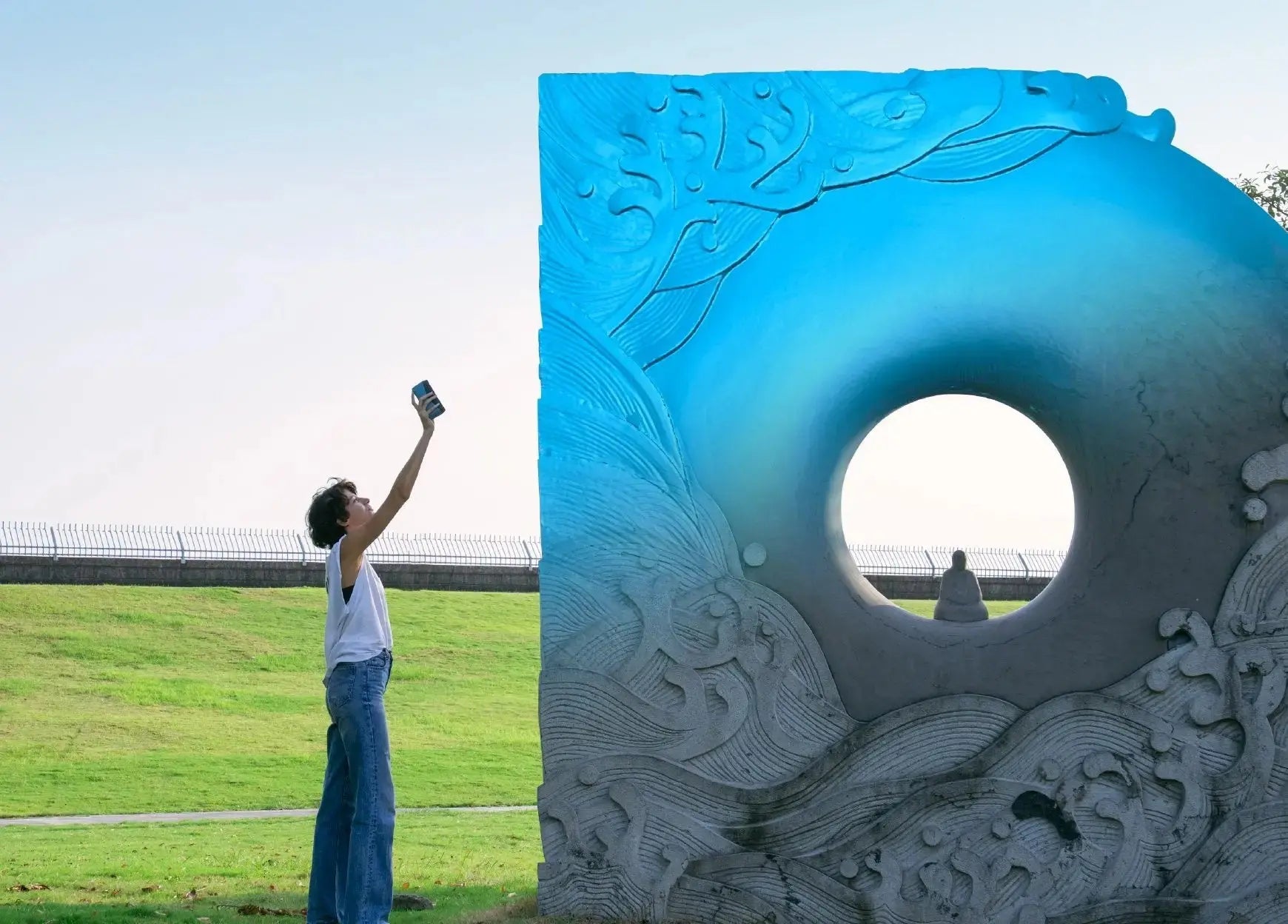

At just 420 grams with battery installed, EINSTAR 2 allows creators to move seamlessly between workshops, art studios, client sites, or outdoor locations without cable constraints or setup complexity.
Hybrid Dual Light Source Technology
EINSTAR 2's cutting-edge hybrid scanning system adapts intelligently to diverse scanning scenarios through two complementary light sources, each optimised for specific applications:

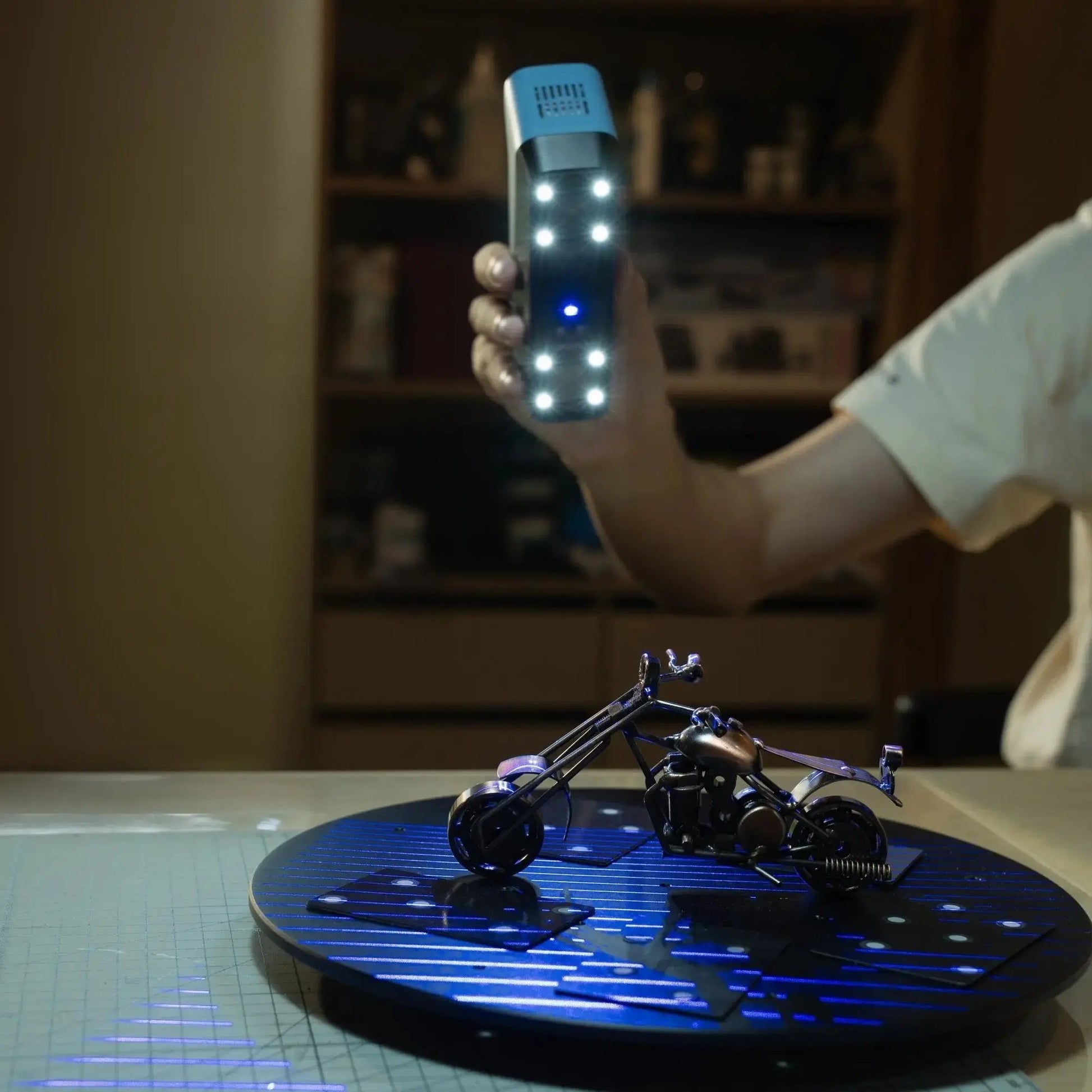

17 Parallel Blue Laser Lines (Laser HD Mode)
- 17 Blue Laser Lines: More than double the standard 7-line configuration, striking the optimal balance between speed and detail quality
- 2,800,000 Points Per Second: Fast, high-resolution scanning with 0.05-10mm resolution range
- Extended Coverage: Rapidly captures large surfaces without sacrificing fine detail, ensuring superior edge definition and exceptional feature clarity
- Material Versatility: Handles black and reflective surfaces directly without spray coating – perfect for automotive components, carbon fibre, glossy finishes, and chrome
- High-Efficiency Reverse Engineering: Produces clean, high-fidelity 3D models directly from the scanner for professional workflows
- Outstanding Outdoor Performance: Reliable operation in bright light up to 110,000 Lux
Infrared VCSEL (IR Rapid Mode)
- Enhanced Tracking Technology: Significantly upgraded tracking capability seamlessly scans challenging subjects like human forearms without additional assistance

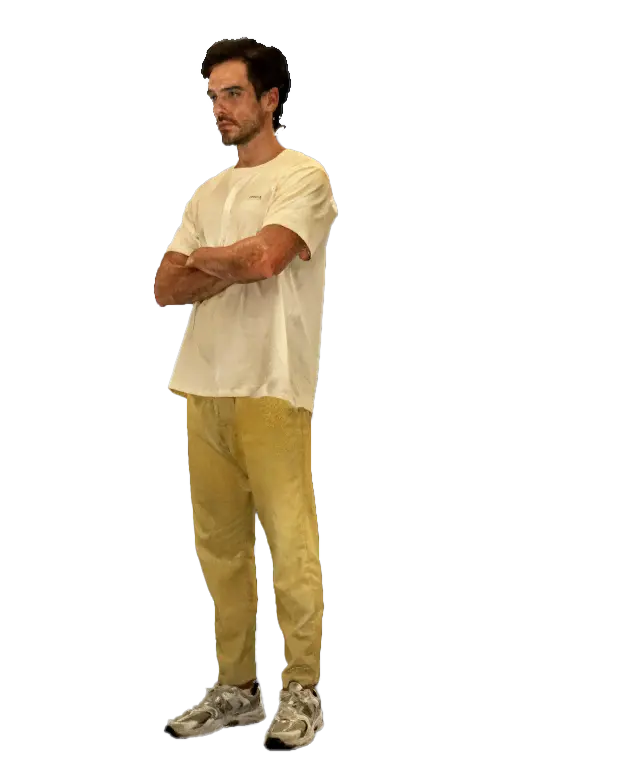

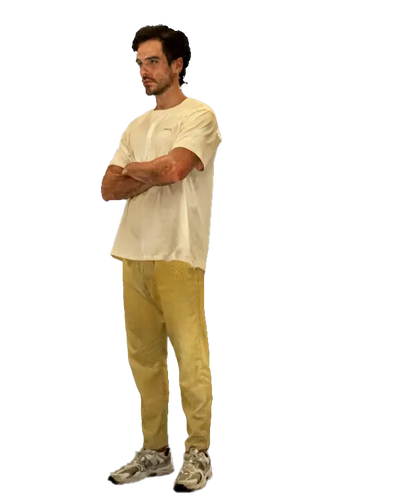

- Full-Body Scanning: Capture complete human subjects safely from head to feet in approximately 60 seconds
- High Efficiency: 1,440,000 points per second for medium to large objects
- Cleaner Point Clouds: Delivers superior data quality with consistent, high-fidelity output
- Marker-Free Operation: Scan feature-rich objects without surface preparation or tracking targets
- Hybrid Alignment: Combines texture, feature, and marker tracking for maximum versatility across diverse scanning scenarios
- Strong Sunlight Performance: Functions effectively outdoors up to 70,000 Lux, even in harsh lighting conditions
Versatile Marker-Free Scanning
Skip the time-consuming marker placement process. EINSTAR 2's advanced feature recognition technology aligns scan data automatically on feature-rich objects, dramatically simplifying your workflow and accelerating results. The hybrid alignment system intelligently adapts to your specific scanning scenario, combining texture, feature, and marker tracking modes for maximum flexibility. Marker-based alignment remains available for objects with minimal surface detail when required.
Incredible Versatility – From Tiny Details to Large Scenes
EINSTAR 2 handles an extraordinary scanning range from 5mm miniature objects to expansive 10-metre scenes. Switch seamlessly between Laser HD mode for small to medium objects requiring fine detail, and IR Rapid mode for large objects and expansive areas. This exceptional versatility allows EINSTAR 2 to tackle virtually any scanning challenge with confidence.

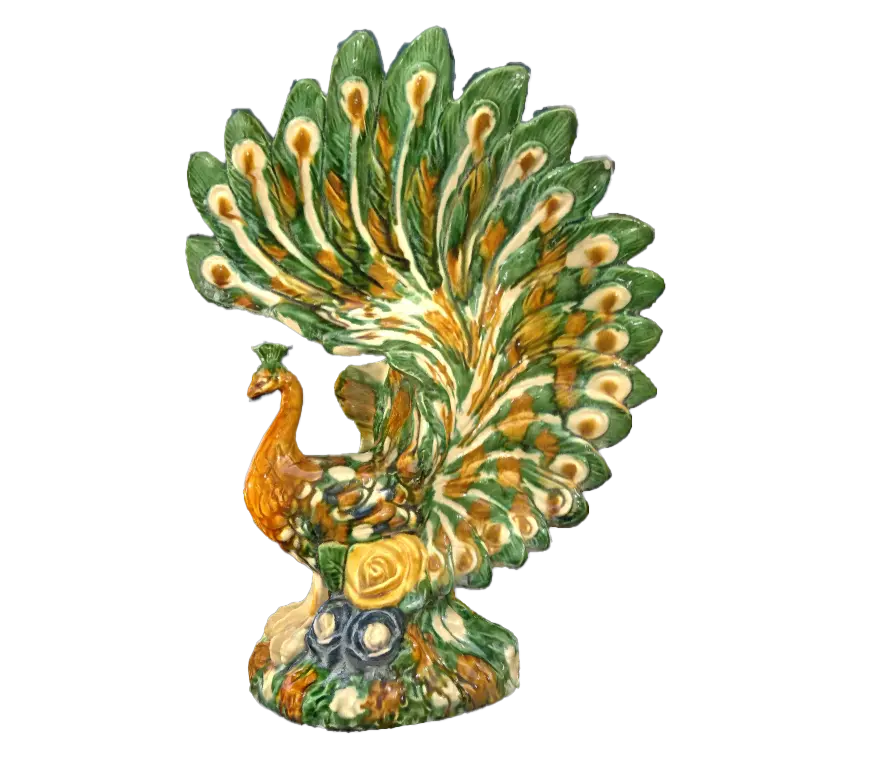

Genuine 5MP Colour Capture
The dedicated built-in 5MP RGB colour camera captures vivid, realistic textures that bring your 3D models to life. Advanced texture mapping algorithms process image data intelligently to deliver genuine high-fidelity colour resolution with minimal loss. The result is photorealistic textures with sharp details and authentic colours – perfect for digital art, customisation projects, AR/VR applications, product visualisation, classic car restoration, and creating digital archives where authentic colour is just as critical as geometry.

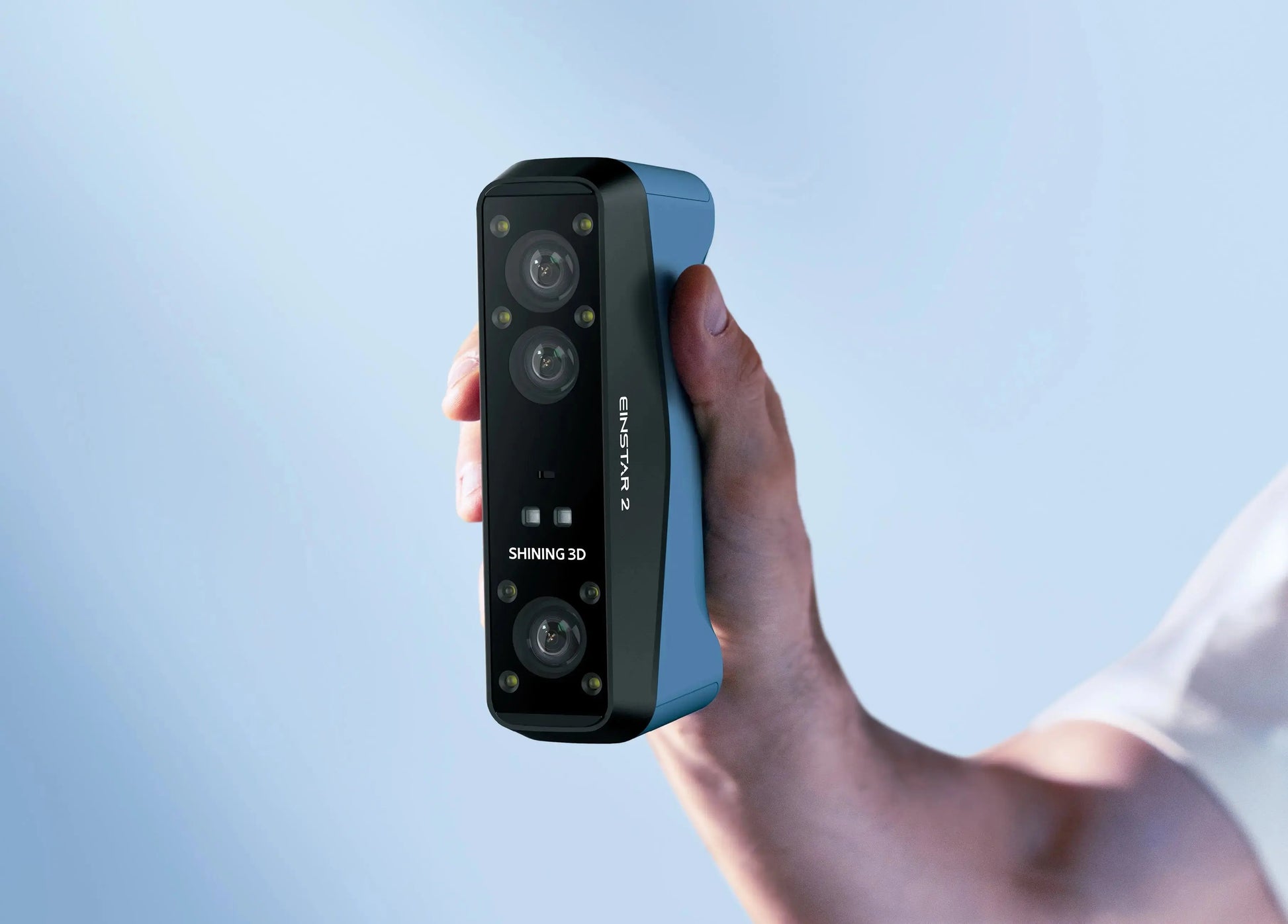

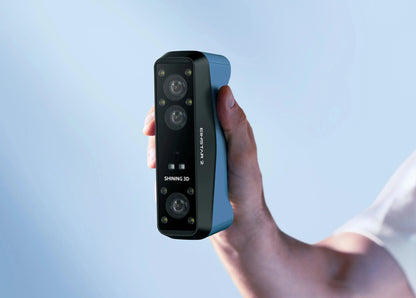

Professional Performance in a Pocket-Sized Package
Don't let the compact dimensions fool you. EINSTAR 2's sleek, refined build quality delivers reliable professional scanning performance scan after scan, with capture speeds up to 90 frames per second using marker alignment for smooth, real-time tracking. The lightweight design fits comfortably in your hand or pocket, enabling unprecedented mobility and workflow efficiency.
EXStar Hub Software Platform
EXStar Hub is an intuitive software platform designed specifically for EINSTAR 2 and EINSTAR Rockit scanners. The unified interface streamlines workflows through reduced system load and dramatically improved performance, delivering faster scanning speeds, greater mobility, and lower operating costs. With enhanced visuals, simplified controls, and powerful tools for model processing and optimisation, EXStar Hub provides step-by-step guidance through the complete 3D scanning process – from capture to final output.
Australian Industry Applications

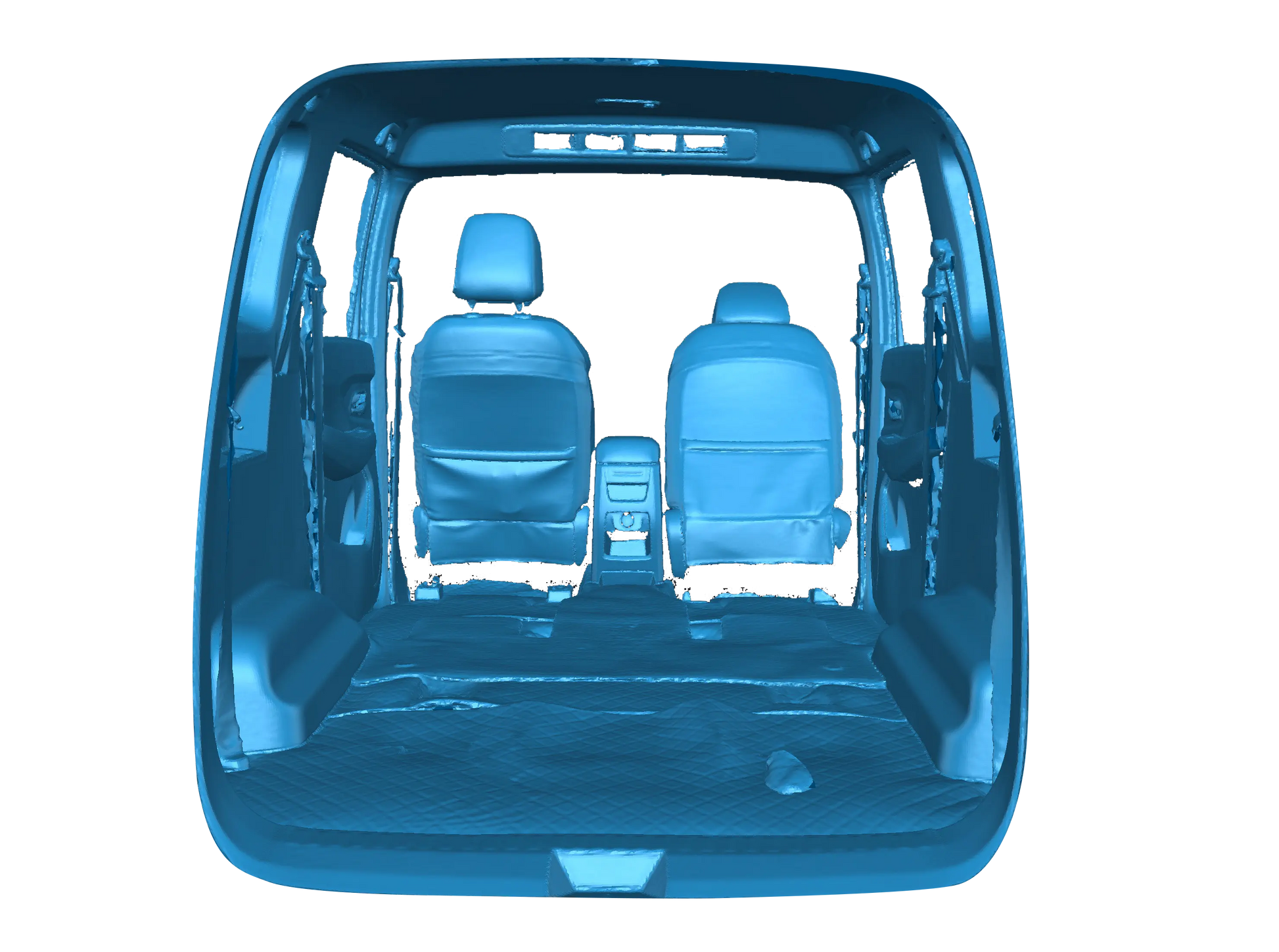

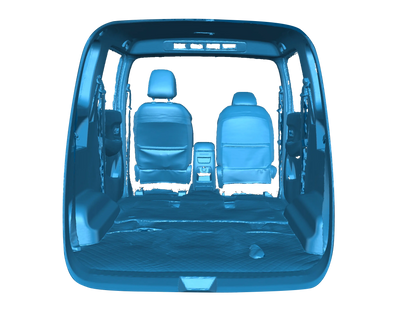

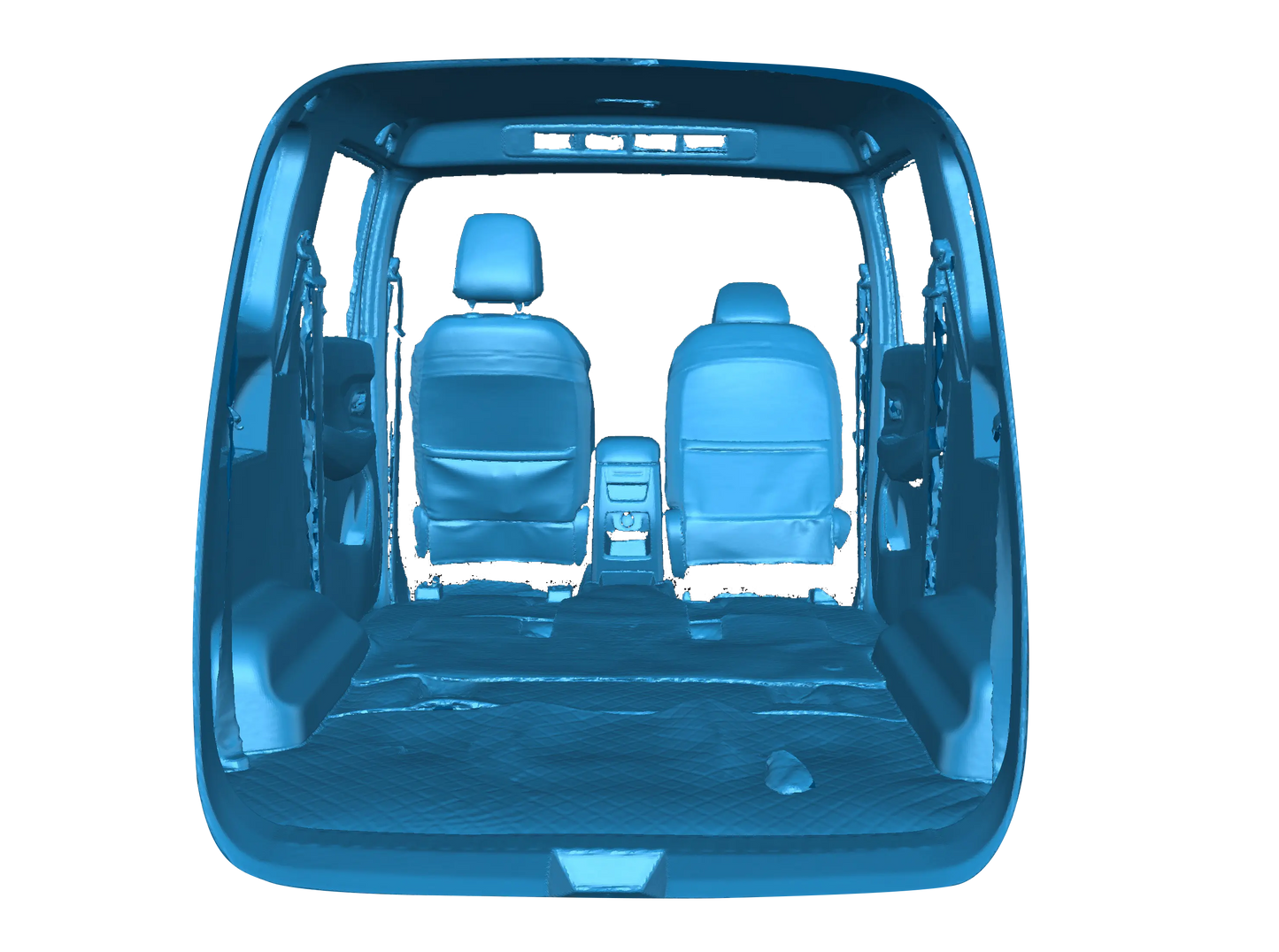

Automotive Customisation & Modification
EINSTAR 2 offers strong adaptability for Australian automotive workshops and customisation specialists. Its affordability and flexibility make it an ideal choice for budget-conscious applications, particularly for scanning and modifying medium to large parts. Rapidly capture high-quality 3D data for exterior body kits, interior trim modifications, dashboard components, and accessory design. The wireless design brings unprecedented portability to the workshop or client site. Effortlessly scan diverse materials – from matte plastics and carbon fibre to glossy paint finishes and chrome trim – without spray coating.

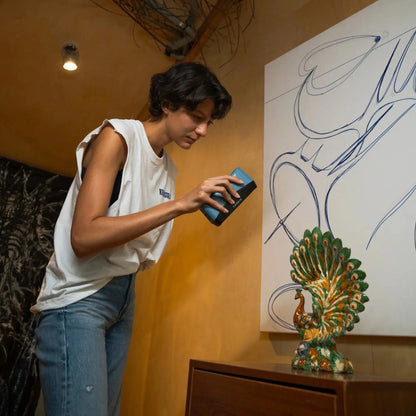

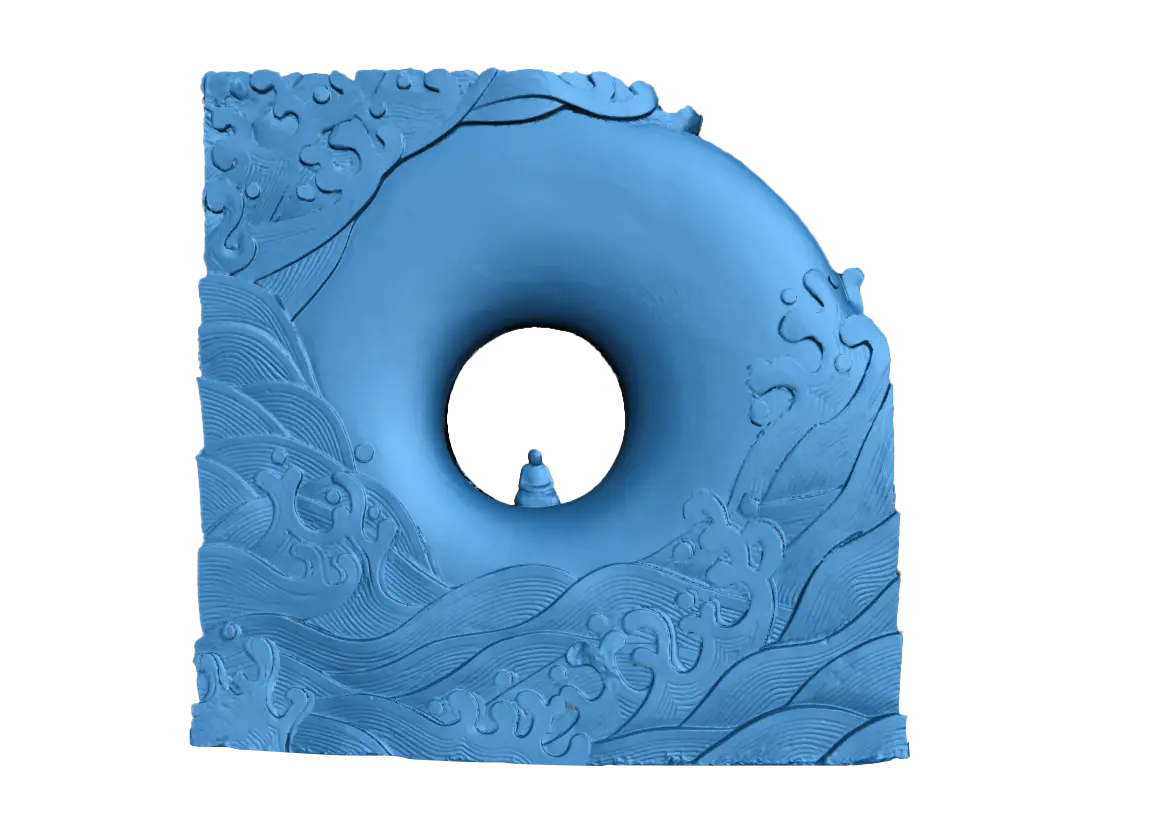

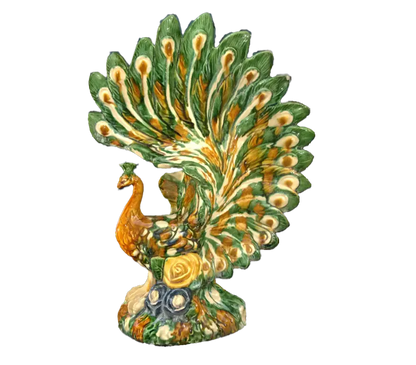

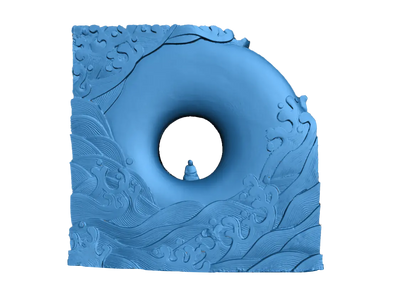

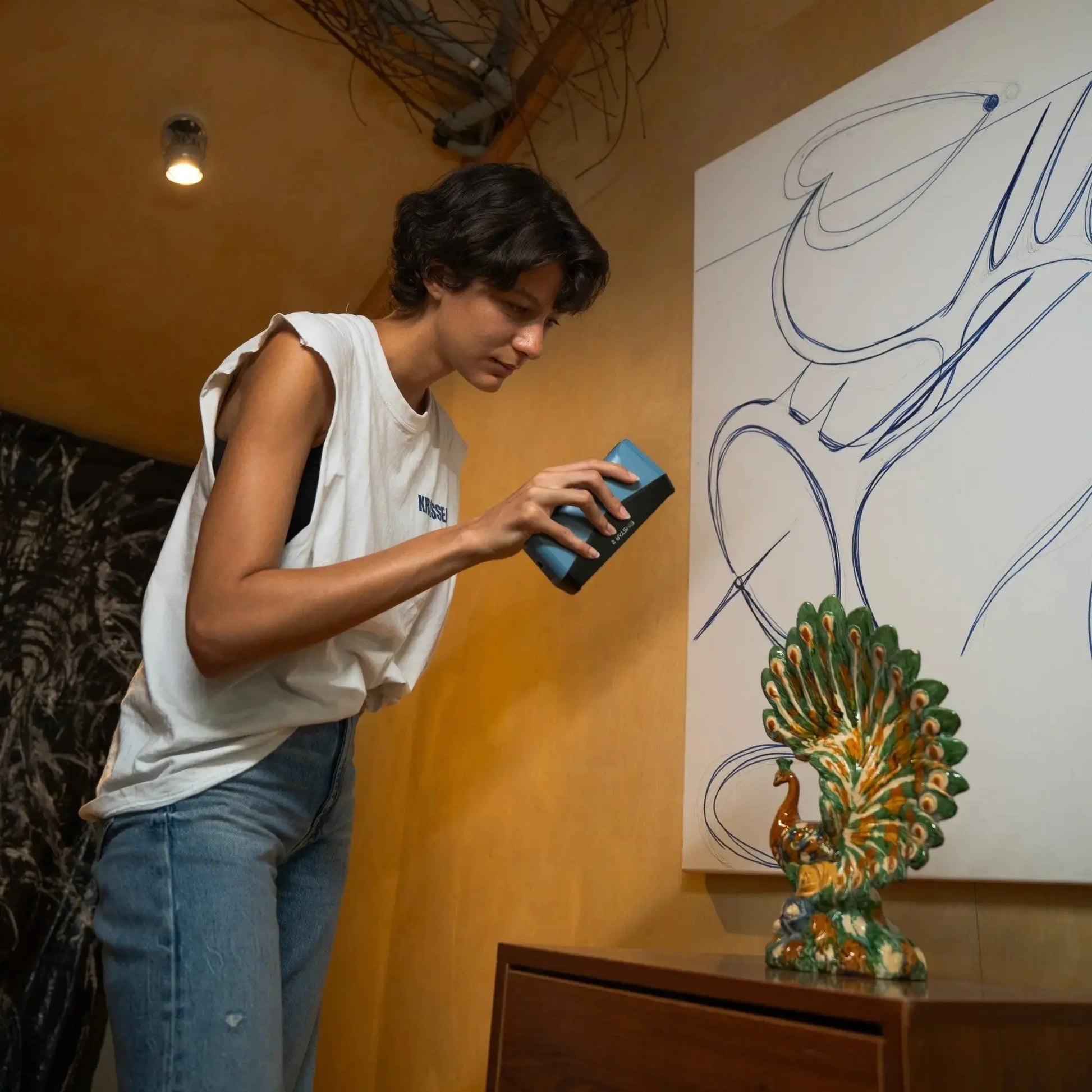

Cultural Heritage & Art
EINSTAR 2 is perfect for cultural creation and art customisation, offering smooth scanning and high data fidelity. Document and preserve Australia's cultural treasures with exceptional flexibility – from monumental outdoor sculptures and Indigenous artifacts to intricate gallery pieces and historical objects. The ability to capture full-colour scans with texture alignment ensures detailed and vibrant reproductions. The wireless design and excellent outdoor performance make EINSTAR 2 ideally suited for capturing intricate artwork and cultural artifacts in varied environments, creating immersive AR/VR experiences, detailed archival records, and museum digitisation projects.
Education & Research
EINSTAR 2 enhances efficiency in research and education by seamlessly integrating with digital archiving and 3D printing processes. The combination of intuitive software, low learning curve, and exceptionally lightweight operation allows students and researchers to focus on their projects rather than complex technical setups. It enables easy scanning and digitisation of objects, making it ideal for educational projects and research that require high-quality models. EINSTAR 2 generates professional-grade, high-resolution data ready for analysis and application – an ideal partner for beginners whilst fostering innovation in academic research across Australian universities and institutions.
Product Design & Prototyping
Accelerate your design process with rapid 3D capture of existing products, prototypes, design inspirations, and physical mock-ups. The portable form factor and true wireless freedom enable scanning wherever creativity strikes – in the workshop, at client meetings, in the field, or at trade shows.
Digital Content Creation
Content creators, game developers, and digital artists can rapidly capture real-world objects, environments, and characters for integration into digital projects. The photorealistic 5MP texture capture enhances visual fidelity and realism, whilst the full-body scanning capability opens new possibilities for character creation and digital human assets.
Technical Specifications
| Scanning Modes | |
| Light Sources | Blue Laser (17 parallel lines) | IR VCSEL |
| Scan Modes | Laser HD | IR Rapid |
| Performance | |
| Resolution | Laser HD: 0.05-10mm | IR Rapid: 0.2-10mm |
| Scanning Speed | Laser HD: 2,800,000 points/s | IR Rapid: 1,440,000 points/s |
| Frame Rate | Up to 90 fps (with marker alignment) |
| Working Distance | Laser HD: 100-600mm | IR Rapid: 160-1400mm |
| Maximum FOV | Laser HD: 490 × 580mm | IR Rapid: 1170 × 1385mm |
| Scanning Range | From 5mm miniature objects to 10m expansive scenes |
| Minimum Scan Volume | Laser HD: 10 × 10 × 10mm | IR Rapid: 50 × 50 × 50mm |
| Features | |
| Alignment Modes | Laser HD: Global Marker/Markers/Features/Hybrid IR Rapid: Global Marker/Markers/Features/Texture/Hybrid |
| Colour Capture | Built-in 5MP RGB colour camera with genuine high-fidelity texture resolution |
| Outdoor Performance | Laser HD: Up to 110,000 Lux | IR Rapid: Up to 70,000 Lux |
| Physical Specifications | |
| Weight | 420g (with battery) |
| Battery Life | Up to 3 hours per battery (2 batteries included) |
| Connectivity & Software | |
| Connectivity | Built-in Wi-Fi module (no hub required) | USB Type-C backup |
| Software | EXStar Hub (included) |
| Output Formats | STL, OBJ, PLY, 3MF, ASC |
| Laser Classification | Class 2 (eye-safe) |
PC System Requirements
To ensure optimal performance, particularly for marker-free laser scanning, your PC should meet these specifications:
Minimum Requirements
- Operating System: Windows 11 Professional 22H2 (64-bit)
- Processor: 13th Gen Intel Core i7-13700H or equivalent/higher
- RAM: 32GB DDR5 dual-channel
- Graphics Card: NVIDIA GeForce RTX 3060 Laptop GPU or higher
- VRAM: 6GB or higher
- Interface: USB 3.0 port
Recommended for Marker-Free Laser Scanning
- RAM: 64GB or higher DDR5 dual-channel
Important: For smooth marker-free laser scan experiences, 64GB RAM is strongly recommended. The increased memory capacity significantly improves real-time processing performance and workflow efficiency.
What's Included
- EINSTAR 2 3D Scanner
- EXStar Hub Software (perpetual licence)
- 2 × Rechargeable batteries (up to 3 hours runtime each)
- Battery charger
- USB Type-C connection cable
- Calibration accessories
- Protective carry case
- Quick start guide and documentation
Optional Add-Ons
EXModel Personal Software
Enhance your scanning workflow with EXModel Personal, seamlessly integrated with EXStar Hub. Transfer scan data with a single click and access professional mesh editing capabilities:
- Intuitive mesh editing tools for reducing data size whilst maintaining accuracy
- Fill holes and remove outliers to create watertight meshes for 3D printing
- Primitives extraction (planes, cylinders, cones, spheres)
- 3D sketching and fill surface tools
- Constrained 2D sketching with dimensioning and constraints
- Comparison and analysis functions for quality verification
- Export formats: STL, OBJ, PLY, and CAD as STL
Note: EXModel Personal is designed for personal and educational use. For commercial applications, EXModel Pro is required.
Frequently Asked Questions
Who is EINSTAR 2 designed for?
EINSTAR 2 is ideal for product designers, automotive engineers, 3D artists, makers, educators, researchers, and hobbyists. Typical applications include automotive part scanning and modification, digital art creation, AR/VR content production, cultural heritage documentation, full-body scanning for character creation, educational projects, and scanning outdoor objects such as statues and sculptures.
How is EINSTAR 2 different from the original EINSTAR?
EINSTAR 2 introduces a new Laser HD mode with 17 parallel blue laser lines for capturing finer details on small objects whilst maintaining speed for larger surfaces. It can handle reflective surfaces without spray coating. The IR Rapid mode features significantly enhanced tracking capability – seamlessly scanning challenging subjects like human forearms without additional assistance. The true wireless design with built-in Wi-Fi offers greater flexibility and mobility. Additionally, the new EXStar Hub software delivers dramatically faster processing speeds and many refined features compared to the original.
Does EINSTAR 2 require markers for scanning?
No, EINSTAR 2 supports marker-free scanning in both Laser HD and IR Rapid modes, using advanced feature recognition and hybrid alignment for automatic data registration. This significantly simplifies workflow and improves efficiency. The hybrid alignment system intelligently combines texture, feature, and marker tracking modes to adapt to different object types. Marker-based alignment remains available for objects with minimal surface features when required.
Can EINSTAR 2 scan outdoors or in bright lighting conditions?
Yes, EINSTAR 2 is specifically designed for excellent outdoor scanning capabilities. Laser HD mode operates reliably in bright light up to 110,000 Lux, whilst IR Rapid mode functions up to 70,000 Lux with strong performance even in harsh sunlight. This makes EINSTAR 2 suitable for scanning large objects in daylight, under workshop lighting, or in varied environmental conditions.
How long does the battery last?
Each rechargeable battery provides up to 3 hours of continuous scanning. With two batteries included and a charger, you can use one battery whilst charging the other, enabling extended scanning sessions without power interruptions or cable constraints.
Is the 5MP texture resolution genuine?
Yes, absolutely. EINSTAR 2 features a dedicated built-in 5MP RGB colour camera for texture capture. The advanced texture mapping algorithm intelligently processes image data with minimal resolution loss, ensuring the final 3D model achieves genuine high-fidelity 5MP texture resolution. This delivers photorealistic textures with sharp details and accurate colours, significantly enhancing the realism of your digital models.
What connectivity options are available?
EINSTAR 2 features a built-in Wi-Fi module for true wireless operation without requiring external hubs, dongles, or adapters. The Wi-Fi module provides stable real-time synchronisation to your PC. USB Type-C cable connection is also available as a backup option for stable operation if Wi-Fi interference occurs.
What size objects can EINSTAR 2 scan?
EINSTAR 2 offers incredible versatility, handling objects from 5mm miniature parts to expansive 10-metre scenes. The Laser HD mode is optimised for small to medium objects (minimum scan volume 10 × 10 × 10mm), whilst IR Rapid mode excels at medium to large objects and expansive areas (minimum scan volume 50 × 50 × 50mm). This exceptional range makes EINSTAR 2 suitable for virtually any scanning application.
Australian Support & Warranty
EINSTAR 2 is backed by comprehensive 12-month manufacturer warranty and Australian technical support. Professional guidance and application assistance available to ensure you achieve optimal results from your investment.
Why Choose EINSTAR 2?
EINSTAR 2 represents the next evolution in accessible professional 3D scanning technology. By combining true wireless freedom, hybrid dual light source versatility, dramatically improved tracking, genuine portability, and professional-grade performance, EINSTAR 2 eliminates traditional barriers to high-quality 3D scanning. The innovative 17 parallel laser line configuration strikes the perfect balance between speed and detail, whilst the enhanced IR mode delivers cleaner point clouds with exceptional tracking capabilities.
Whether you're an automotive specialist, digital artist, cultural heritage professional, educational institution, or creative maker, EINSTAR 2 delivers the scanning capabilities you need with the freedom, simplicity, and performance you demand. From capturing tiny screws to scanning entire van interiors, from indoor setups to outdoor explorations – EINSTAR 2 handles it all with serious results and zero serious experience required.
Ready to experience the next generation of 3D scanning? Contact Add Labs today to discover how EINSTAR 2 can revolutionise your 3D workflow and unlock new creative possibilities.
