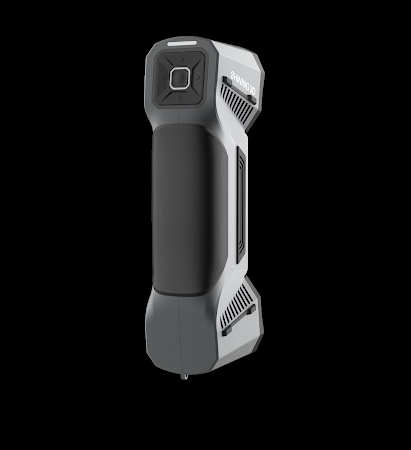

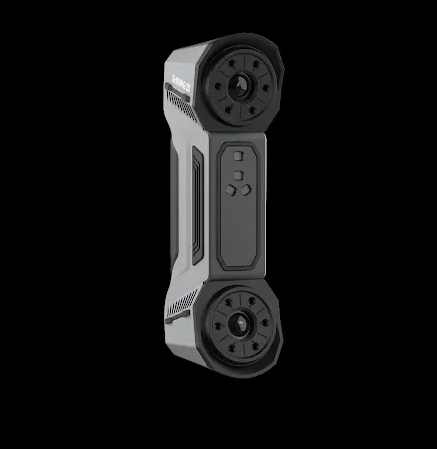

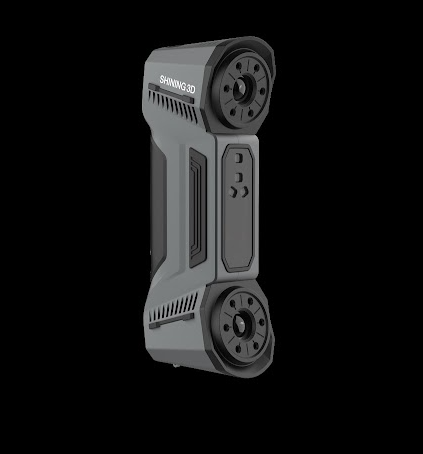

Shining3D FreeScan Combo and Combo Plus 3D Scanner with Scan Software

Shining3D FreeScan Combo and Combo Plus 3D Scanner with Scan Software

Type
View full details

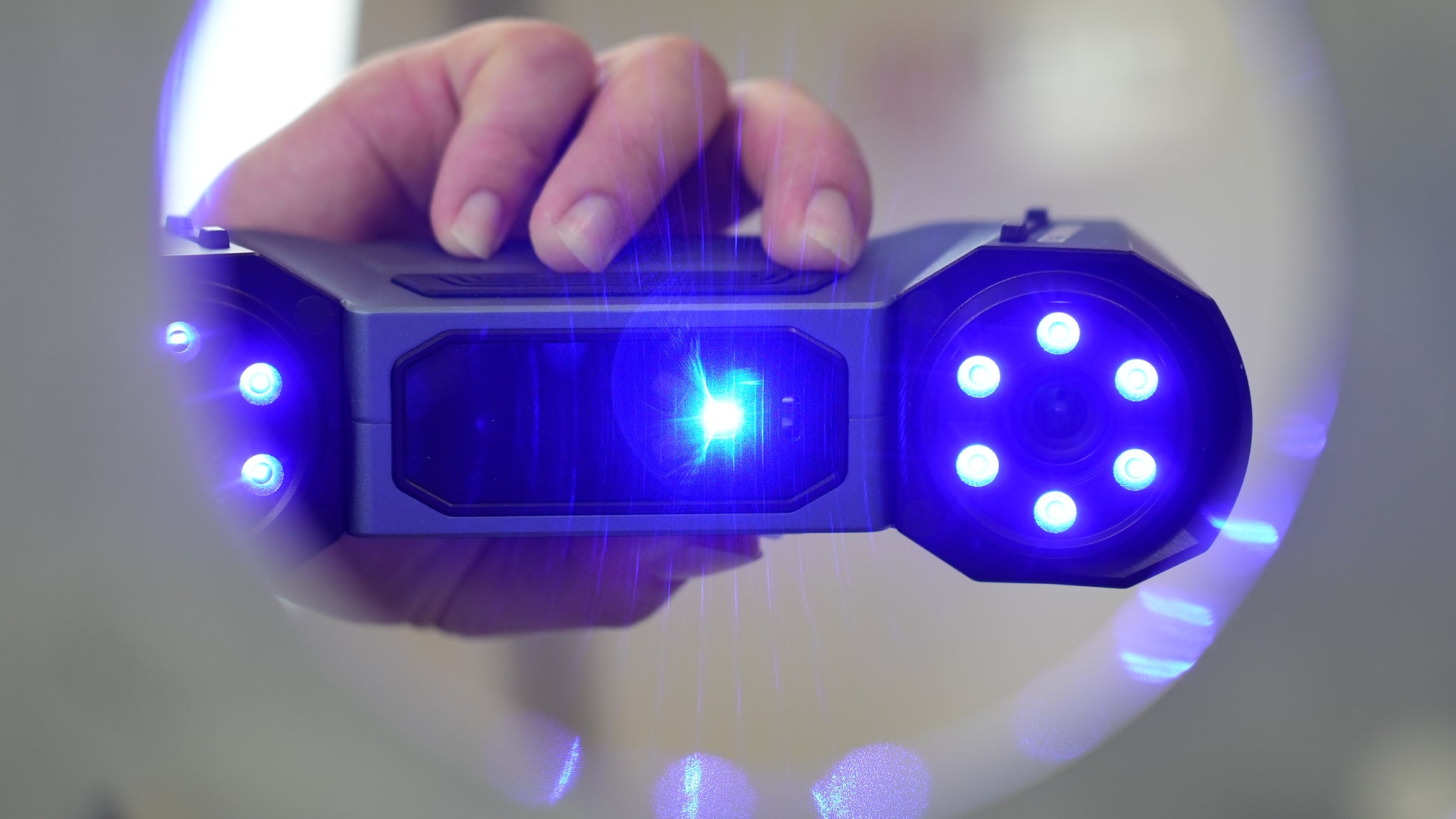

Hybrid Light Source and Multifunctional Handheld 3D Scanner
DELIGHT THE METROLOGY SCANNING

The FreeScan Combo and  Combo Plus , with a small size of
193 x 63 x 53mm and weighed only 620g, has dual
light sources: blue laser and infrared VCSEL.
Being a lightweight and portable metrology
scanner , it is equipped with four working modes:
multiple lines scanning, single line scanning, fine
scanning, infrared scanning.

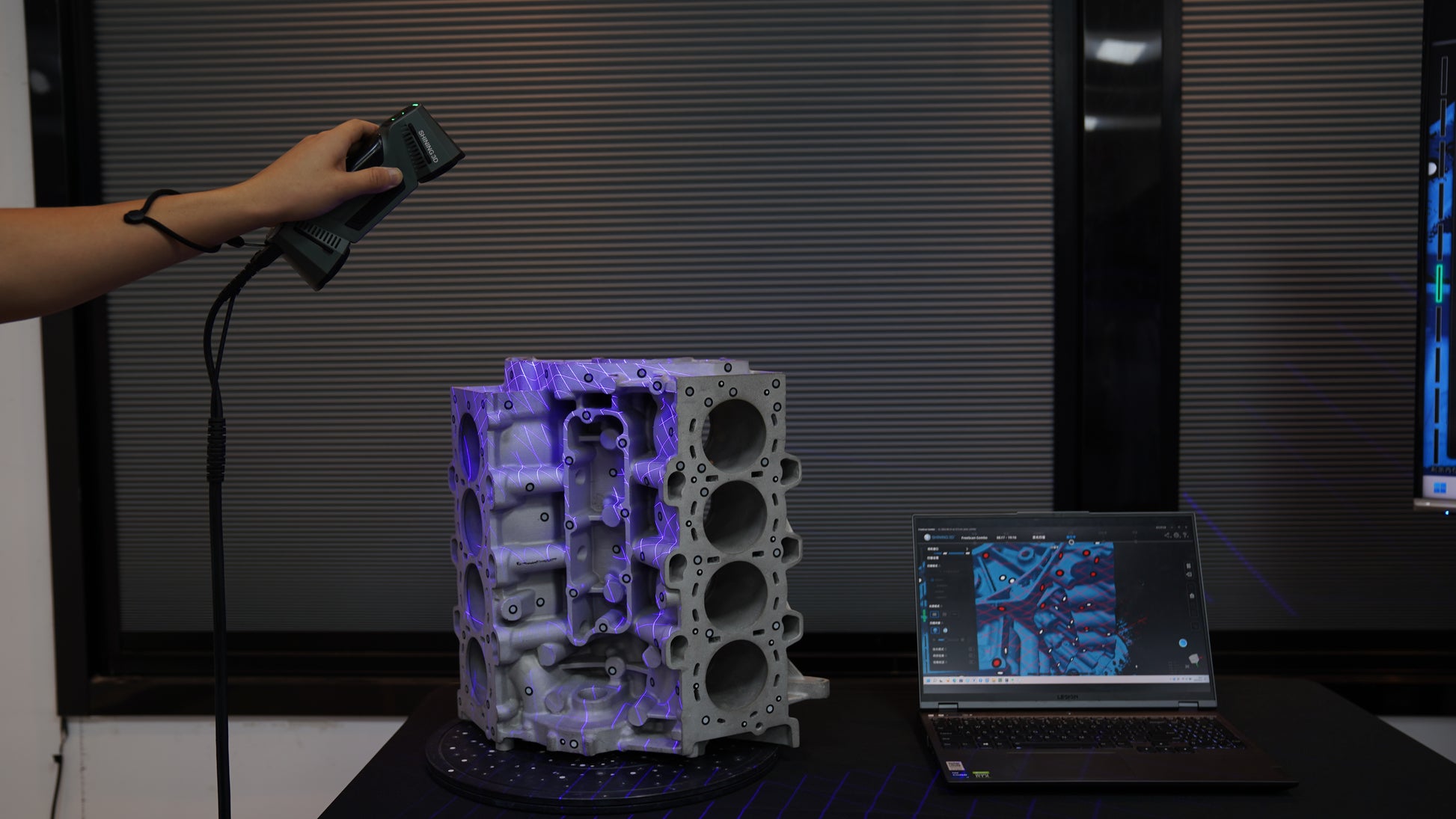

It can be used to achieve metrology-grade
precision inspection, reverse design, additive
manufacturing, and other applications in many

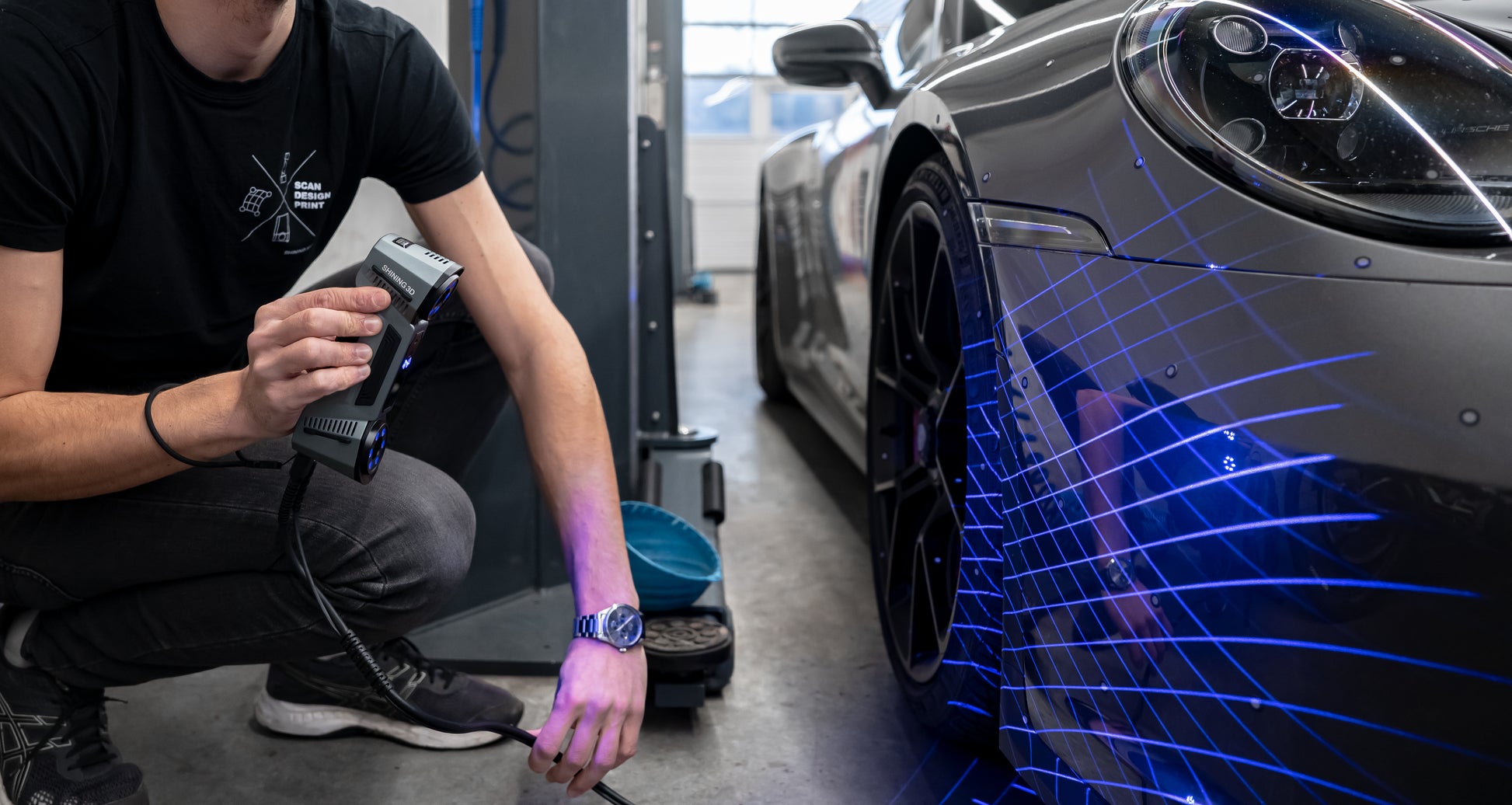

manufacturing sectors, including the automotive
industries, aerospace, rail transportation, heavy
industries, mould manufacturing, casting and
foundry and medical industries.

SCAN SPEED

Combo - 1.8 million points/sec

Combo Plus - 3.6 million points/sec

LIGHT SOURCE
Blue laser + Infrared VCSEL

ACCURACY
Up to 0.02mm

WEIGHT
620g


COMPACT SIZE
193mm × 63mm × 53mm

BLUE LASER + INFRARED LIGHT
An innovative combination of blue laser and infrared light sources meets the needs
of diverse industrial 3D scanning scenarios.

4 SCANNING MODES,
MULTIPLE SCAN CHOICES

Combo - 26 laser lines for global scanning

Combo Plus - 50 laser lines for global scanning

7 parallel blue laser lines for fine scanning details
1 single blue laser line to obtain deep hole data

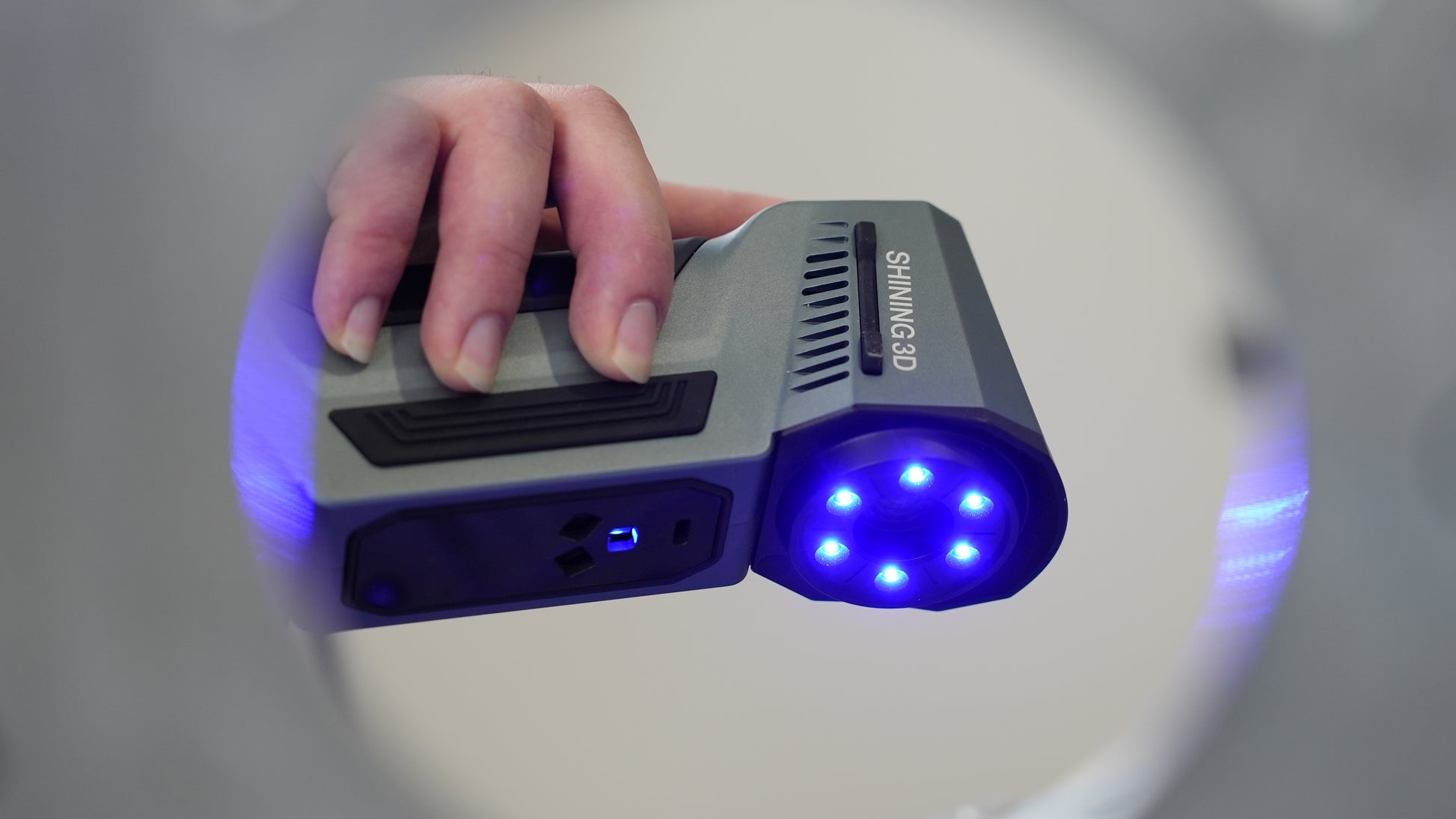

Infrared light source scanning fast and without markers.

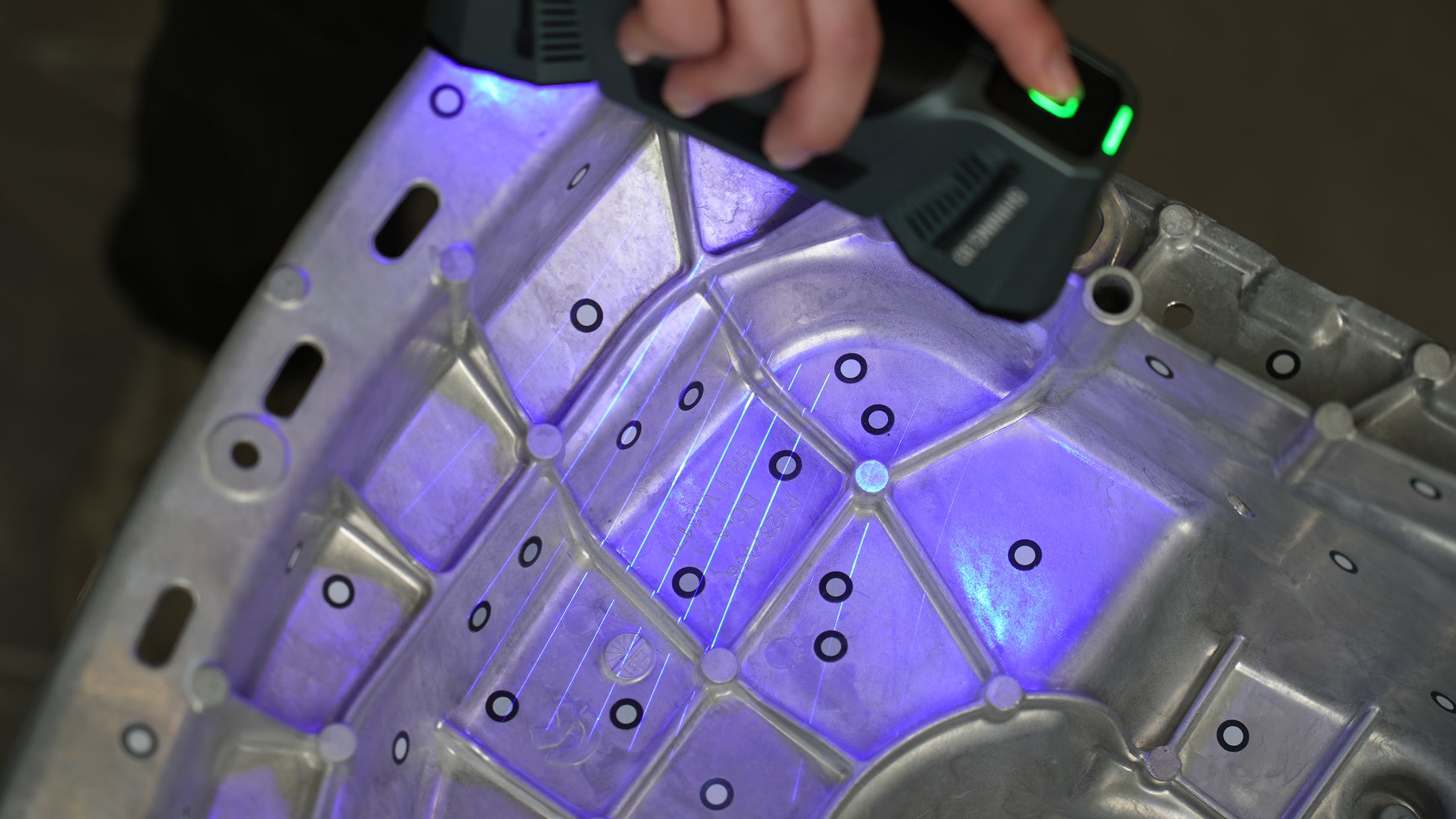

Global scanning, smooth and efficient
No fear of black or reflective surface

A WISE CHOICE FOR
METROLOGY APPLICATION
Metrology-grade accuracy, the accuracy under
laser scanning mode can achieve up to 0.02mm

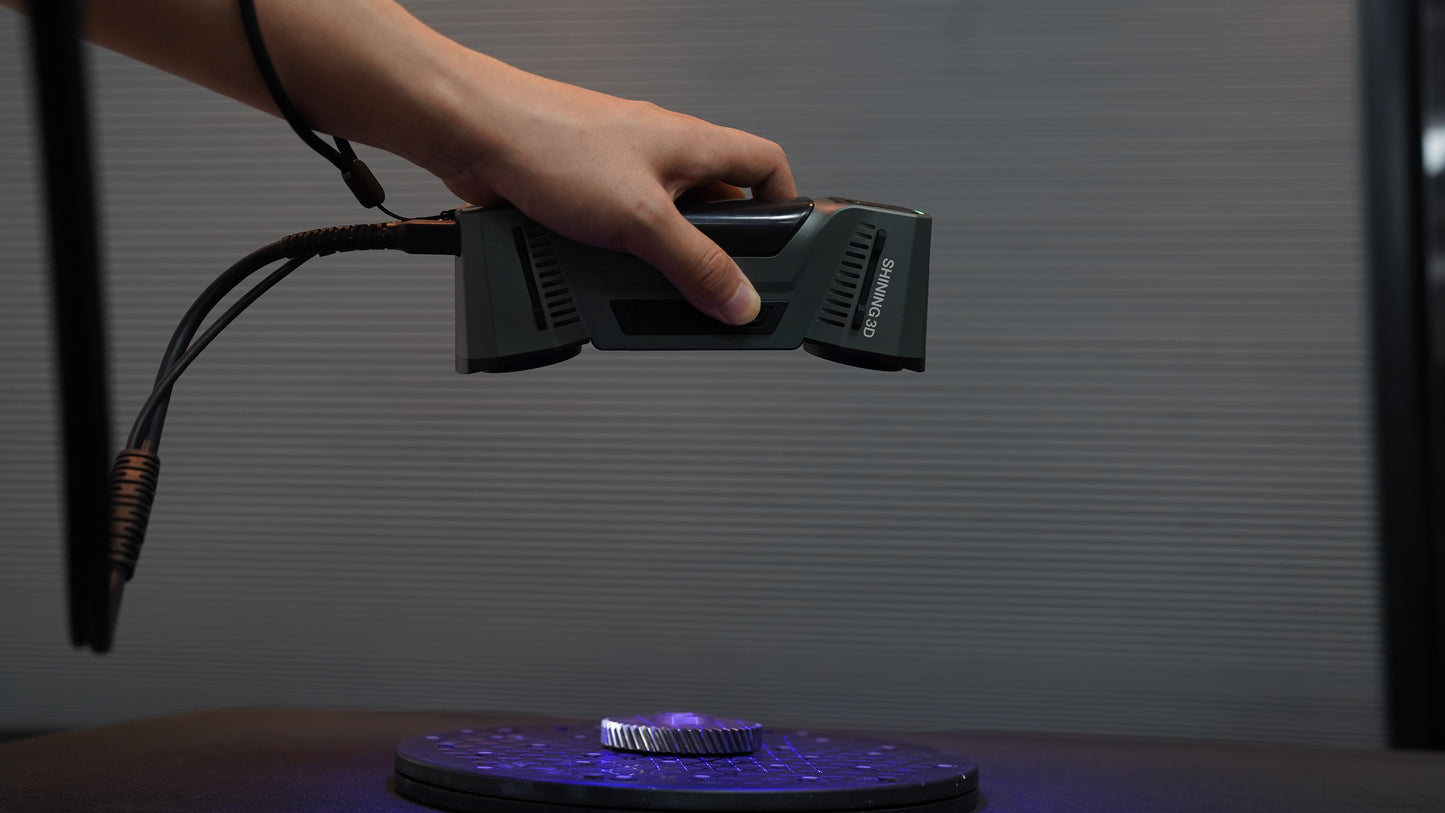

PRECISE AND FINE DETAIL
SCANNING
Smaller scanning area with 7 parallel laser lines.
