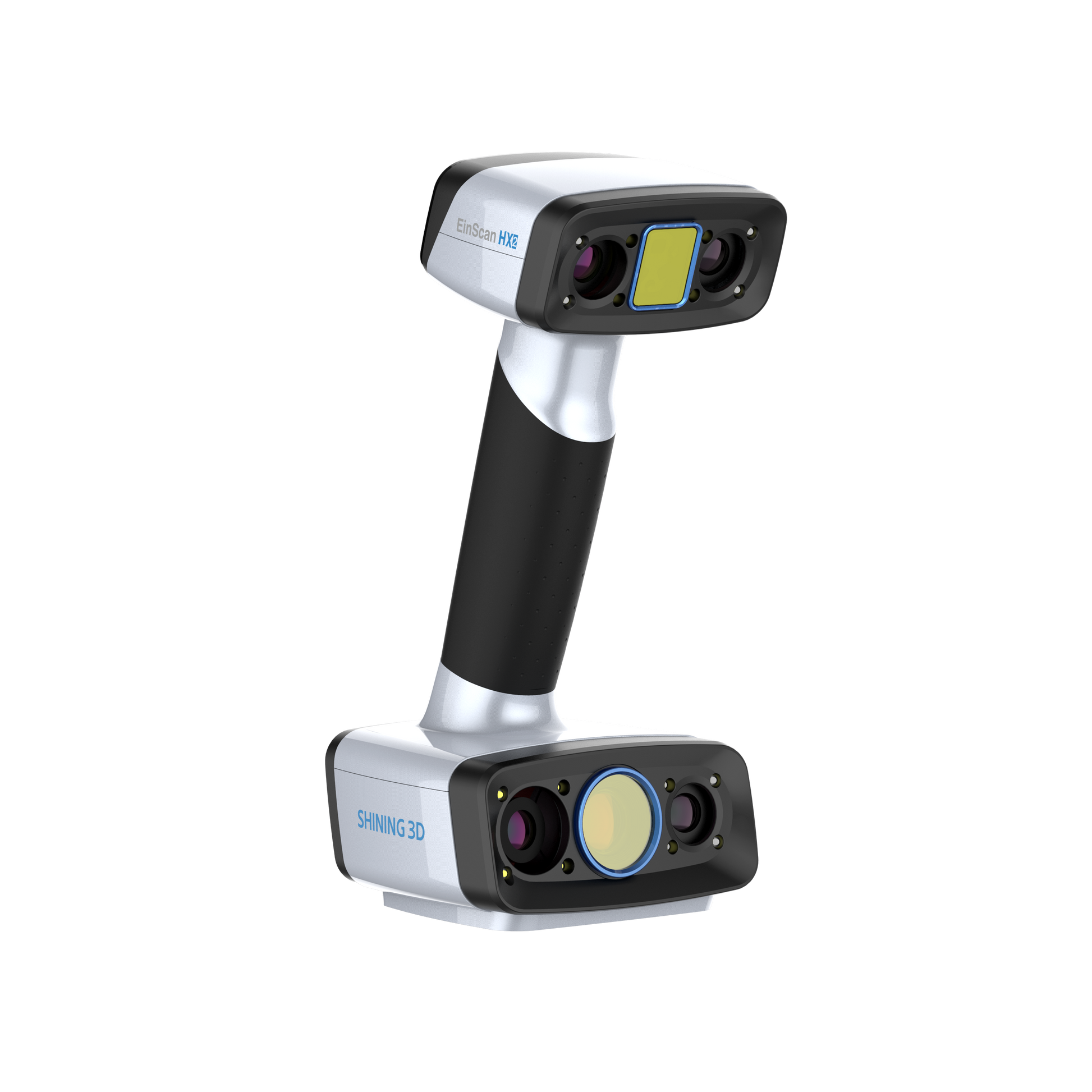

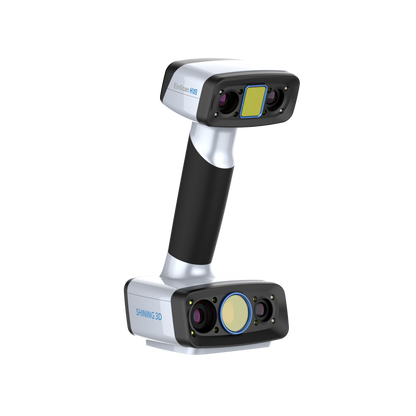

Shining3D EinScan HX2 Handheld 3D Scanner

Shining3D EinScan HX2 Handheld 3D Scanner

View full details

Online Demonstrations available - 02 9161 4164 | sales@addlabs.au

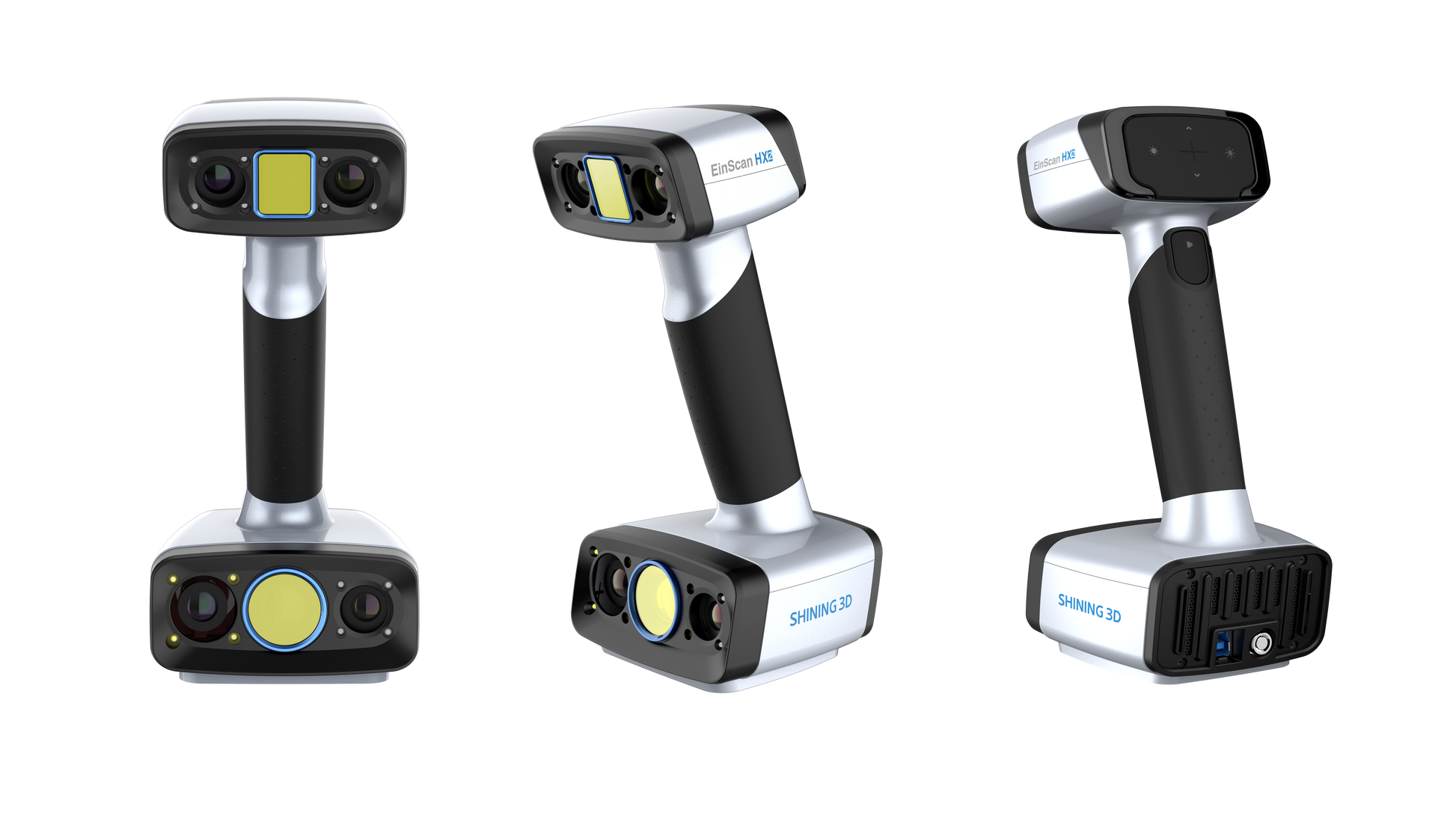

Introducing The EinScan HX2 3D Scanner

A Hybrid and Versatile Solution



What's new

  • 13 Crossed blue laser lines
  • Speed up to 1,600,000 points per second, 120FPS
  • Hybrid Blue Laser & LED Light
  • Accuracy up to 0.04 mm with markers
  • Portable & Easy Operation



13 Crossed Blue Laser Lines

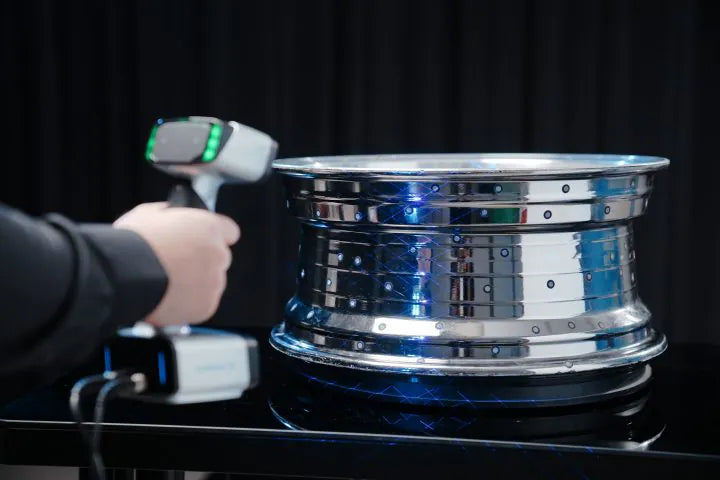

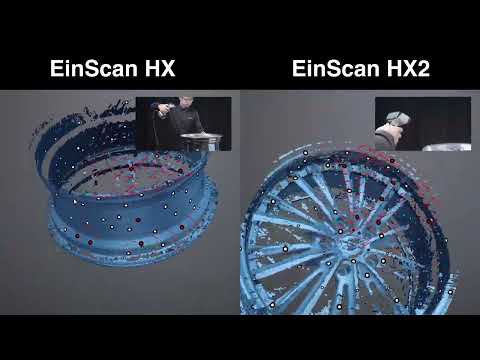

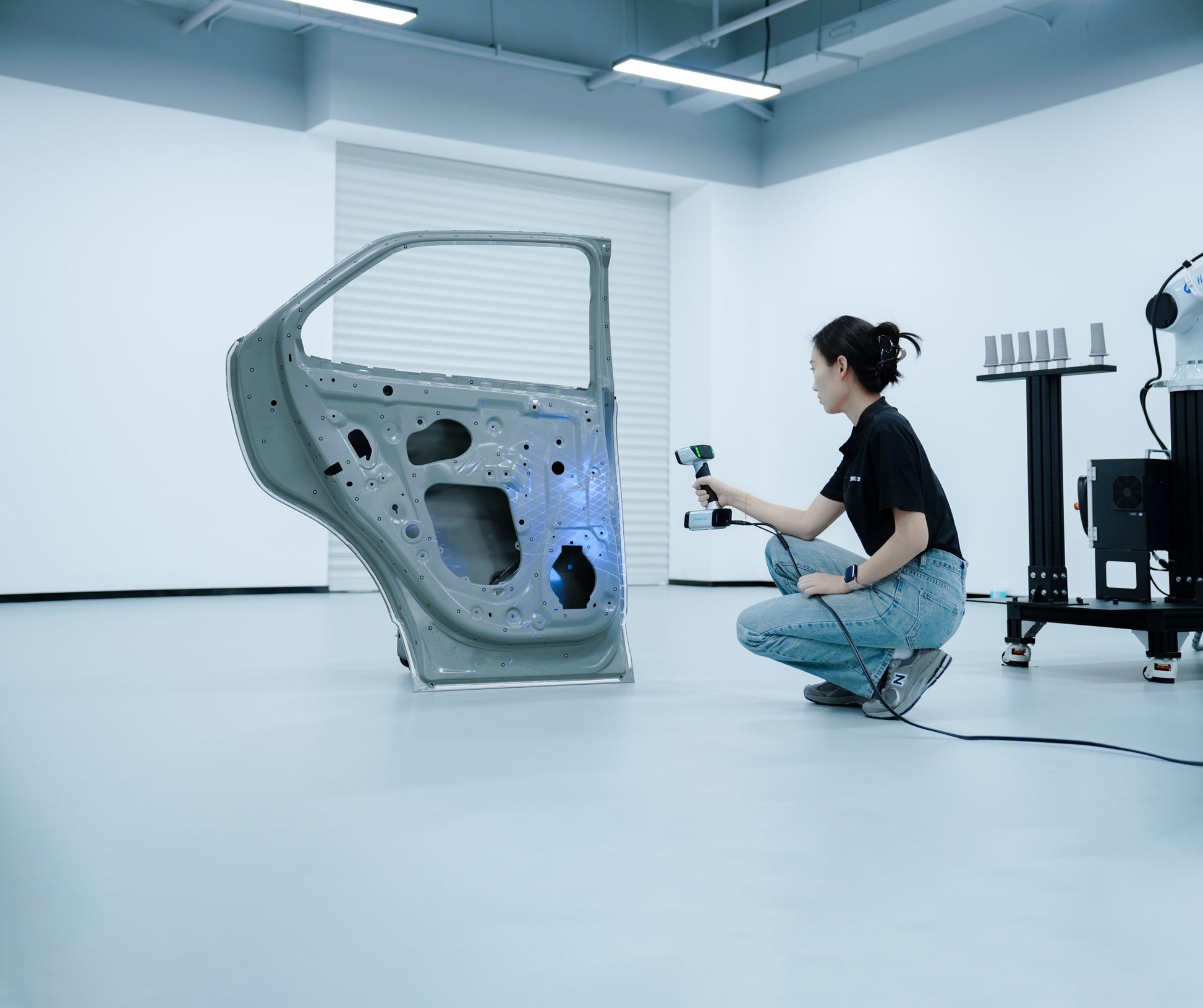

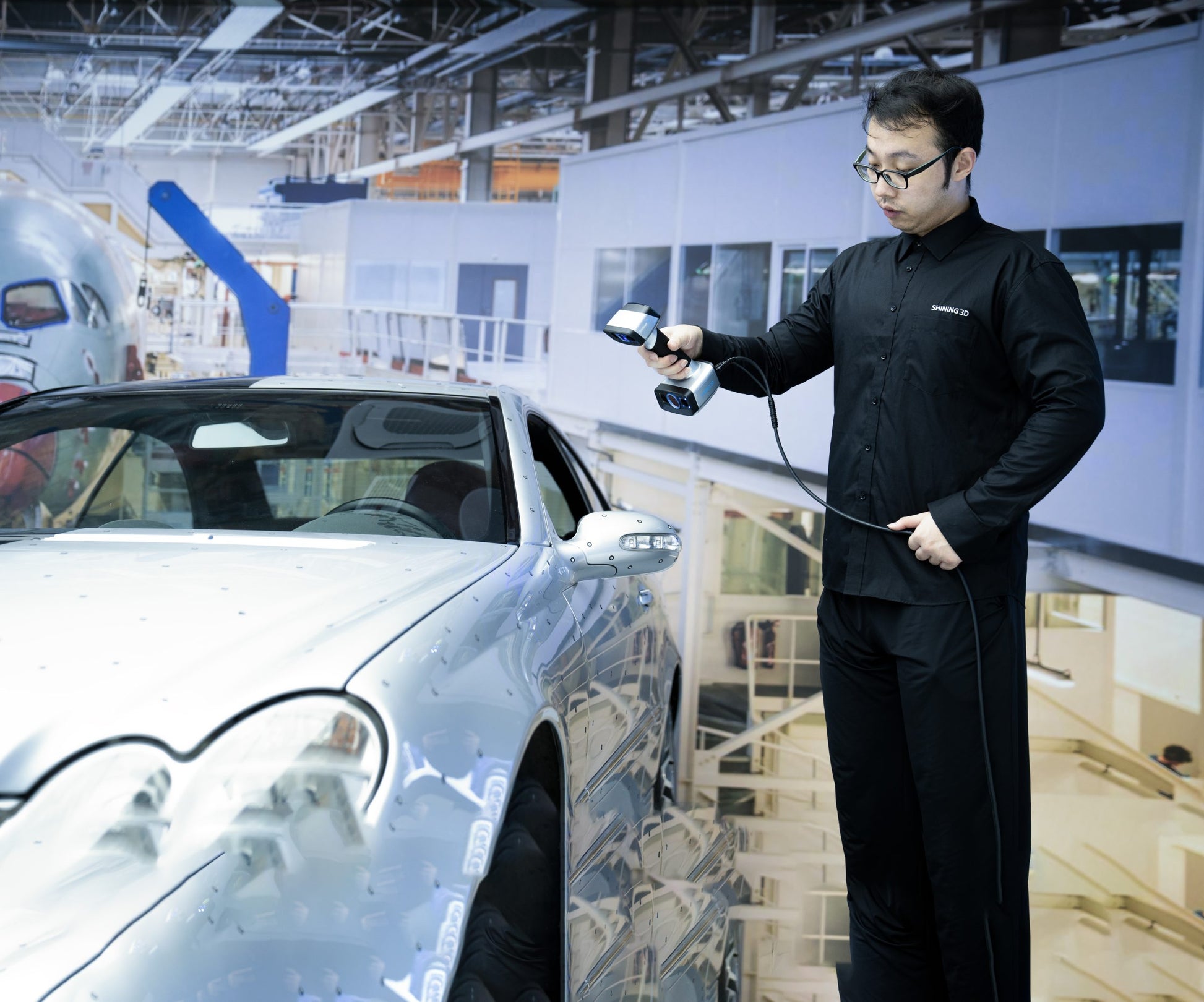

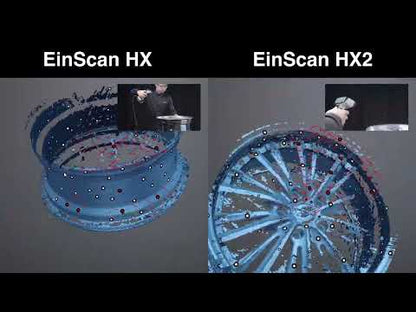

The EinScan HX2 improves on its predecessor with 13 crossed blue lines and a frame rate of 12. FPT, enhancing scan detail and speed.  Its hybrid laser and blue LED technology ensure high accuracy and versatility, making it ideal for automotive, mould manufacturing, research, education, art and culture applications.



High Efficiency

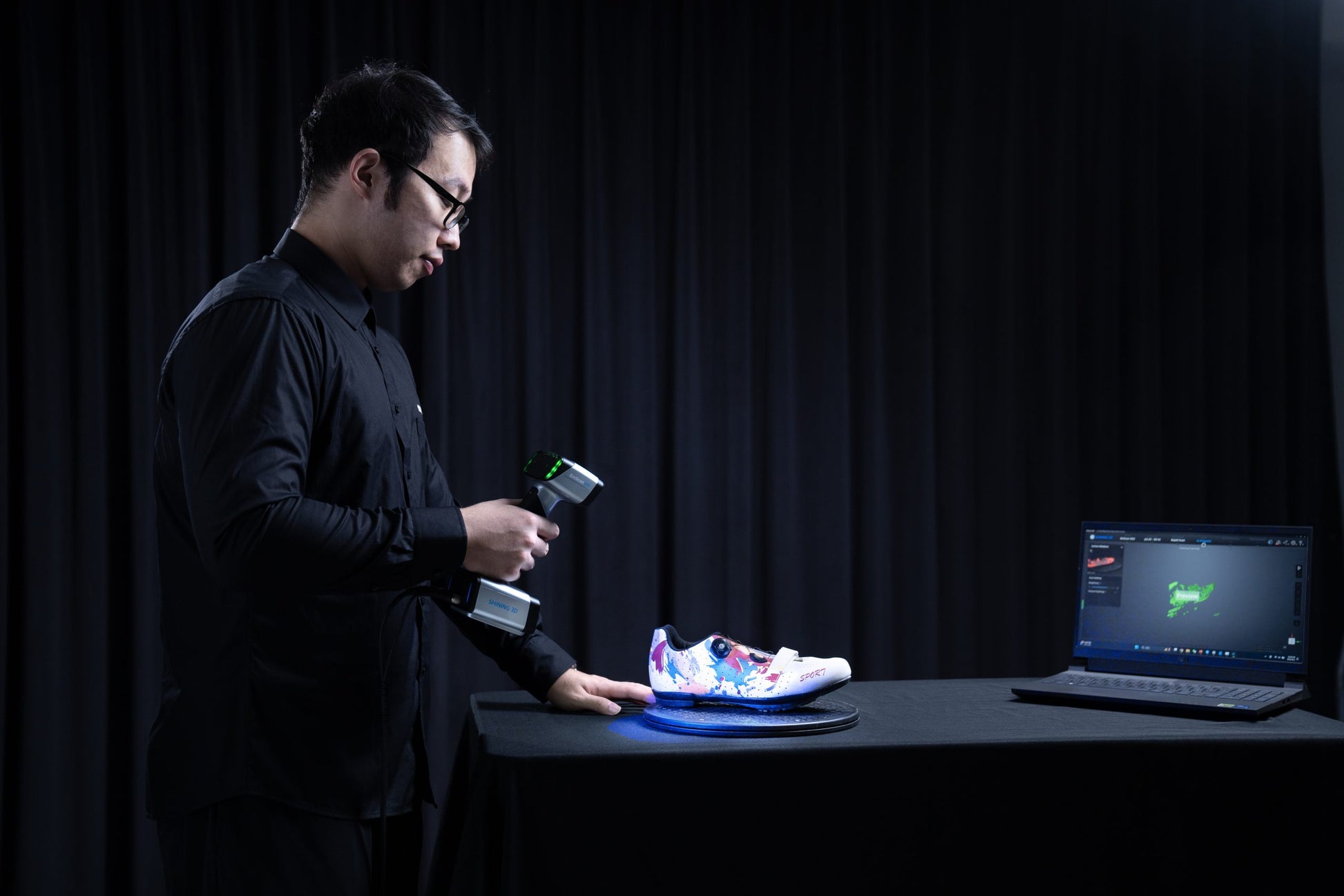

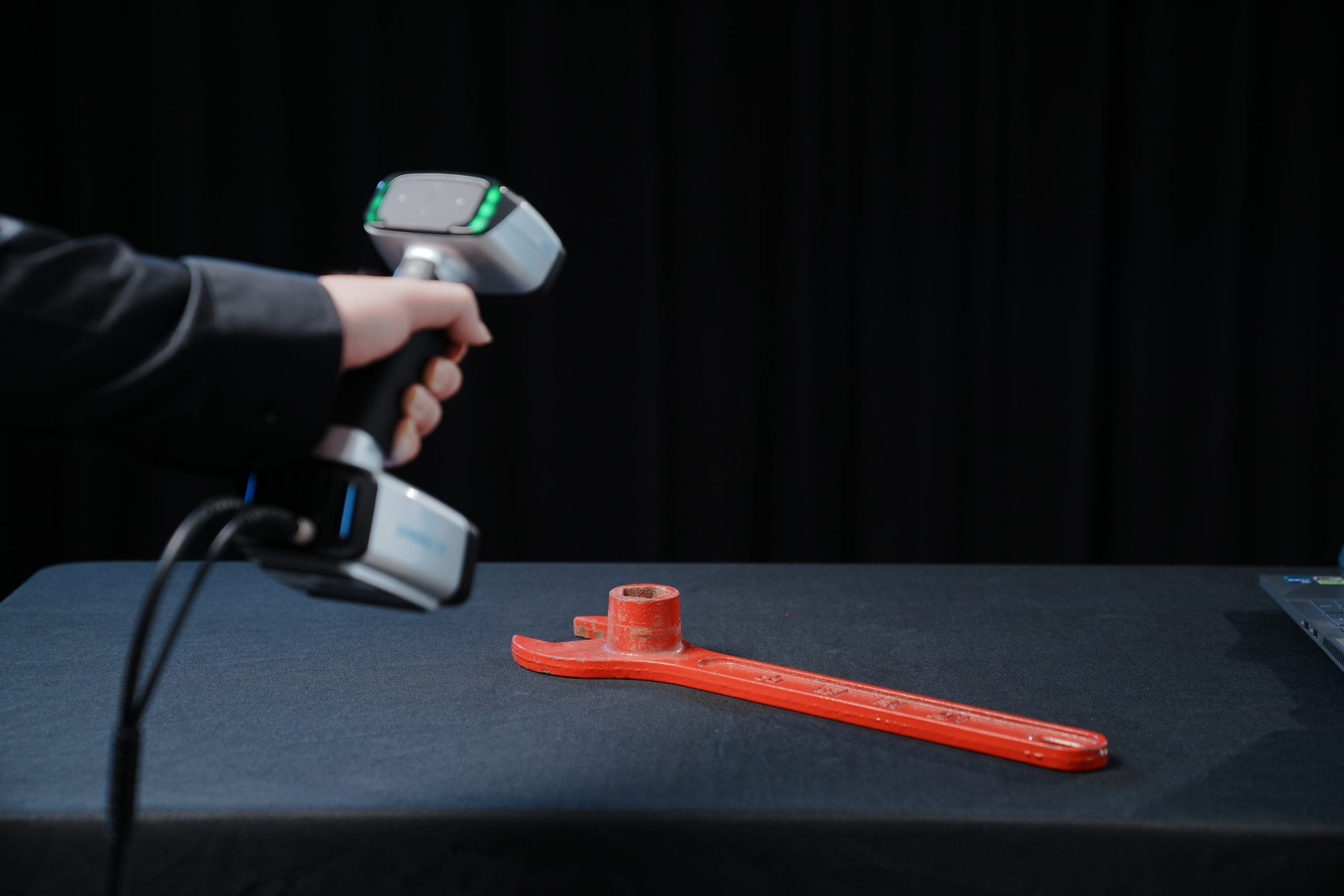

The EinScan HX2 delivers unparalleled efficiency with its laser scan mode, achieving up to 1,600,000 points per second and a frame rate of 120 FPS.  This rapid scanning capability is ideal for reverse engineering, CAD/CAM, 3D printing applications. It captures detailed scans of most objects within minutes, maximizing productivity and streamlining your 3D scanning projects for superior results.

Laser Scan:

13 Crossed Blue Laser Lines with up to 0.04mm scan accuracy.

Scan Speed: 1,600,000 points/s, 120 FPS

Rapid Scan:

Blue LED with up to 0.05mm scan accuracy.

Scan Speed: 1,200,000 points/s, 20FPS



3D Scanning Workflow:

3D Scan

  • Capture Surface Data
  • Alignment
  • Mesh Improvement
  • Export to STL, OBJ

MESH TO CAD

  •  ExModel or Quicksurface
  • Reconstruct to parametric
  • Export as STEP

CAD

  •  Import 3D CAD
  • SolidWorx, SolidEdge, Fusion 360, Investor



What’s in the Box

EinScan HX2

Power Adapter

Power Cable

Calibration board

Calibration board support

Markers

Marker removal tool

USB drive
