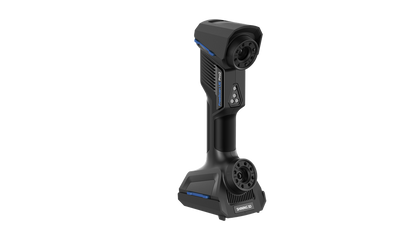

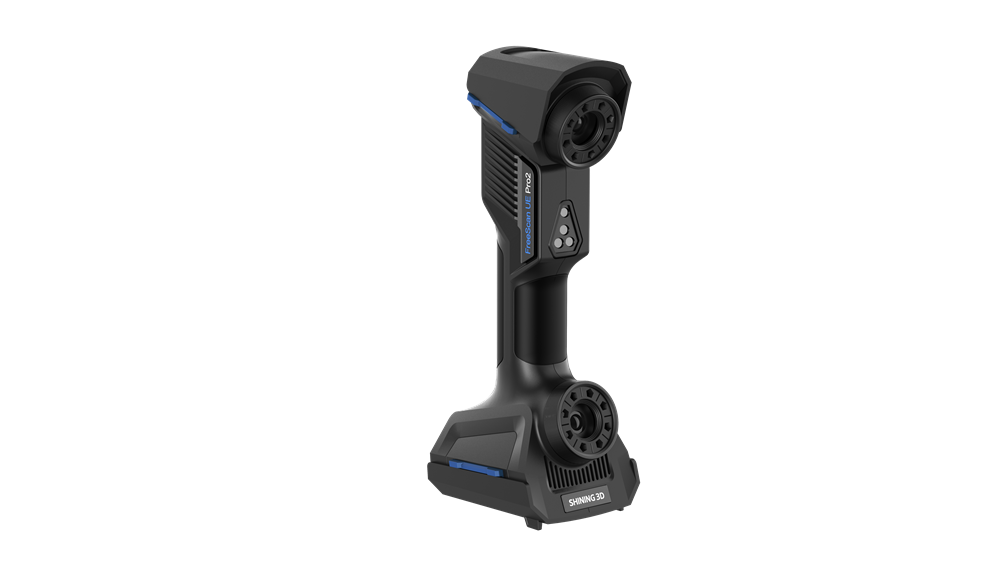

FreeScan UE Pro2 Handheld 3D Scanner

FreeScan UE Pro2 Handheld 3D Scanner

Regular price $0.00 AUD
Regular price Sale price $0.00 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Software Add-On (Optional)
View full details

The FreeScan UE Pro2 is wireless. A lightweight, portable 3D scanner ideal for fieldwork and tough environments.  it features an integrated wireless module for easy data transmission and a rapid scan speed of up to 3,460,000 points per second, doubling the efficiency of its predecessor.

Key Features:

  • Wireless Data Transmission: Cable-free data transfer with integrated wireless module.

  • Ultra-Fast Scan Speed: Up to 3,460,000 points per second for efficient task completion.

  • Embedded Computing Module: Enhances data capture and processing, reducing scanning time and computer workload.

3 Functions for Versatile Applications


  • High-speed scanning: 50 laser lines
  • Detail scanning: 7 parallel laser lines
  • Deep hole scanning: 1 laser line

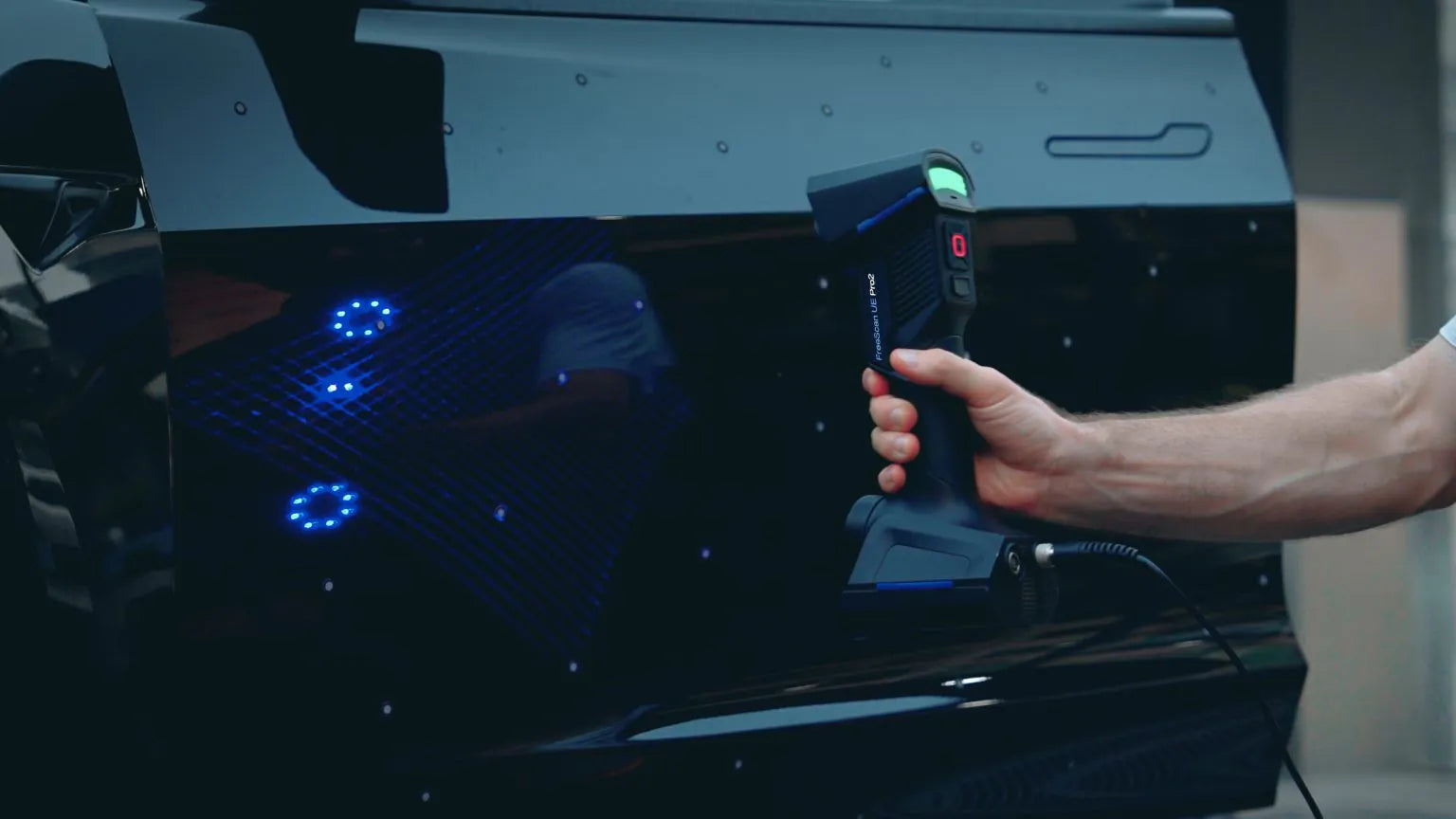

FreeScan UE Pro2 Handheld 3D Scanner 1

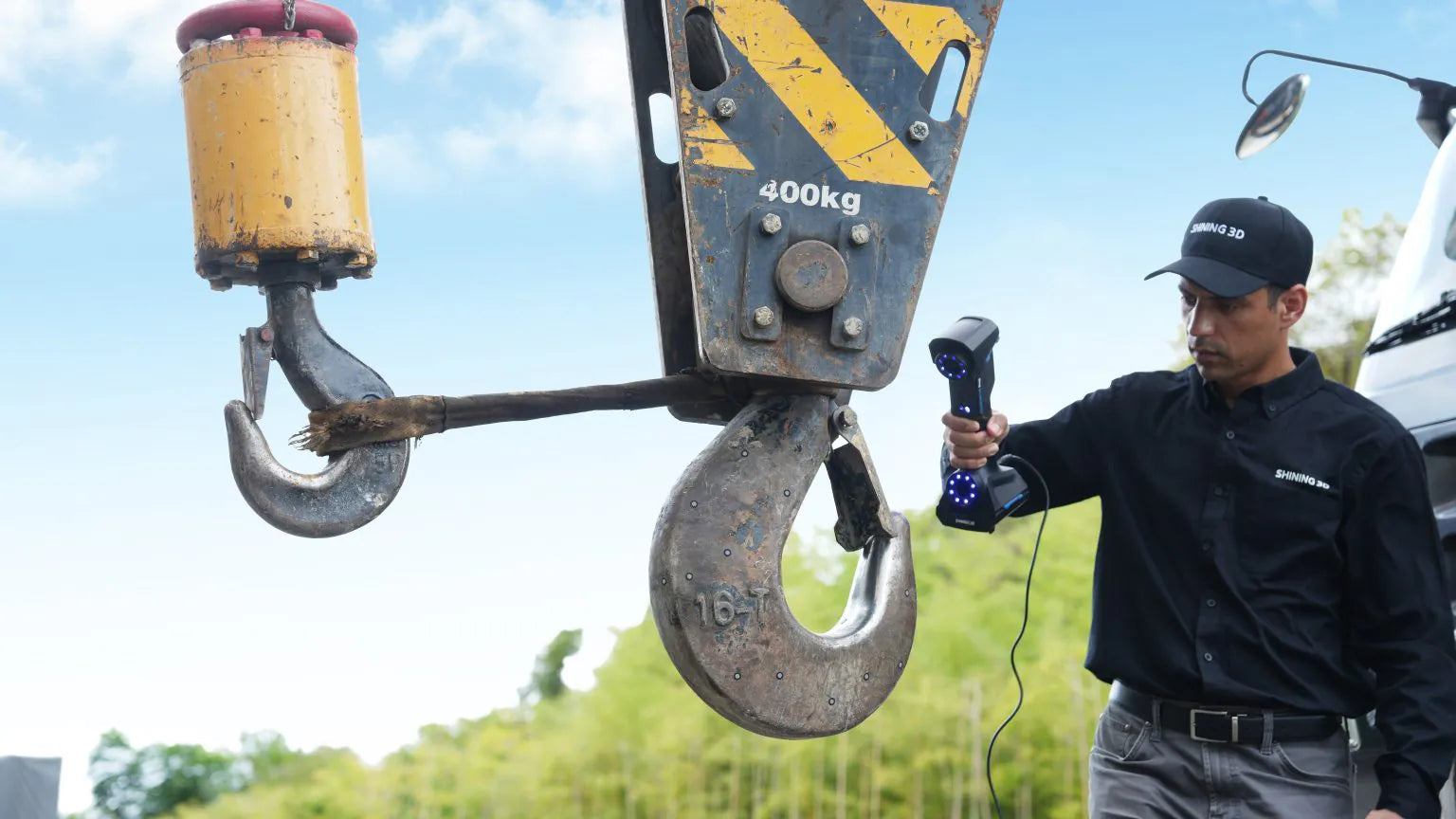

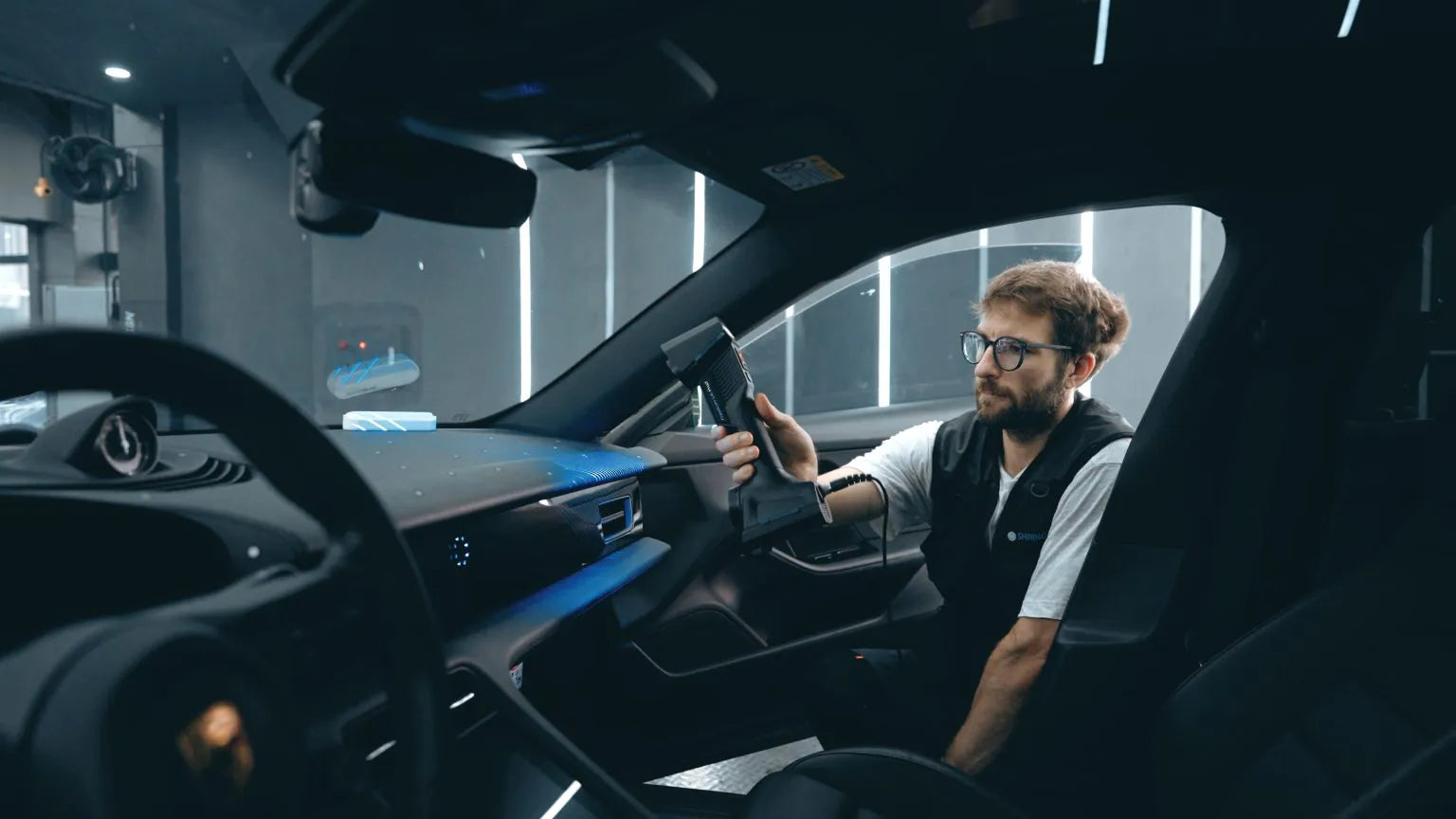

Scan Indoors and Outdoors

The FreeScan UE Pro2 excels in both indoor and outdoor environments, making it versatile for any work setting.

FreeScan UE Pro2 Handheld 3D Scanner 2

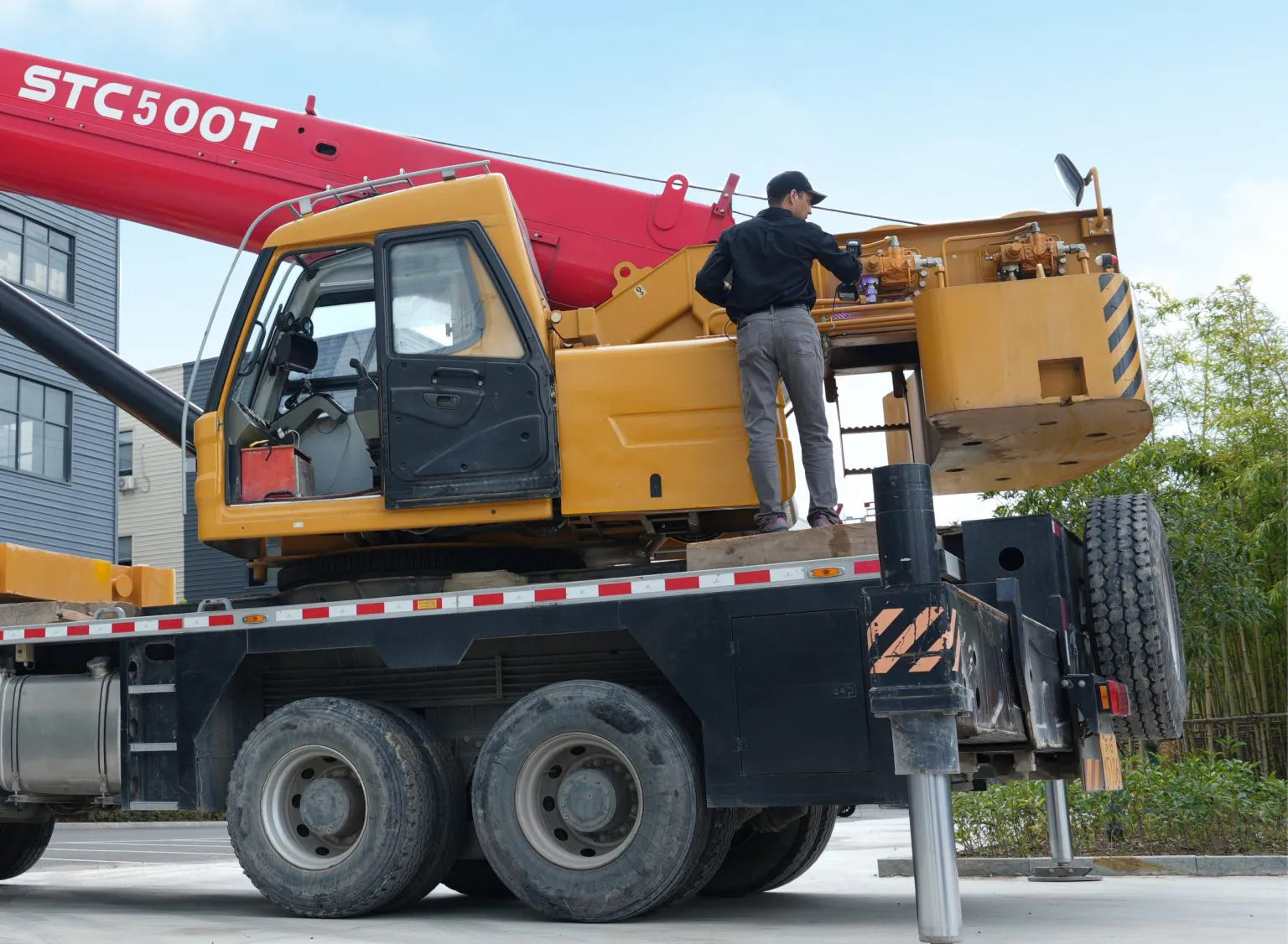

Elevated Accuracy for Large-Scale Scans

Different from traditional photogrammetry methods, SHINING 3D’s binocular photogrammetry technology eliminates the usage of coded targets, reducing preparation time by at least half while maintaining the same high level of volumetric accuracy.

FreeScan UE Pro2 Handheld 3D Scanner 3

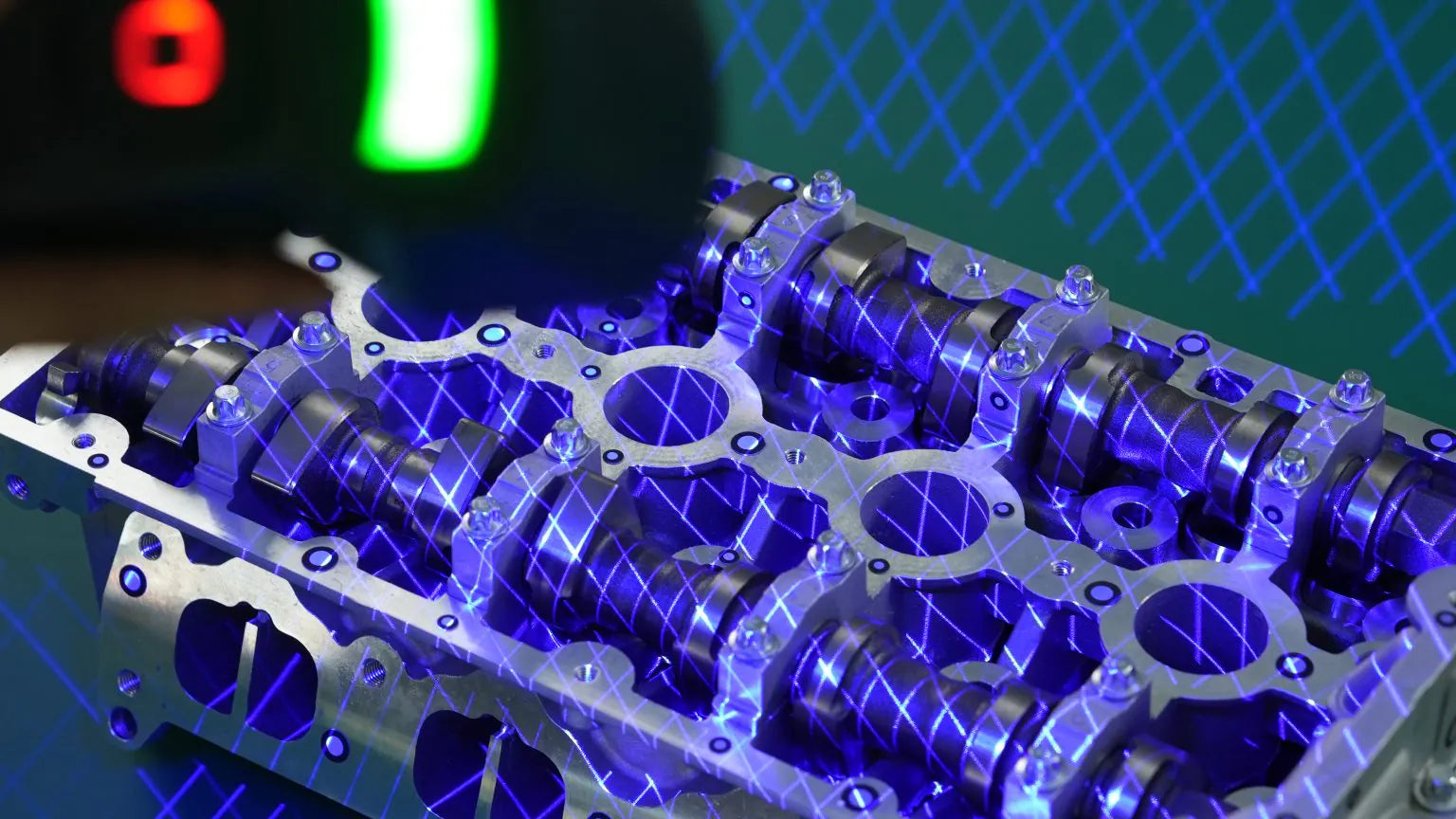

Double the Speed, Double the Productivity

With a scan speed up to 3,460,000 points/s, tasks are completed smoothly, enhancing productivity in inspection applications.

  • Embedded Computing Module: Accelerates data capture and processing, reducing overall scanning time and computer workload.
  • 50 Laser Lines: Ensures faster and more comprehensive scanning.

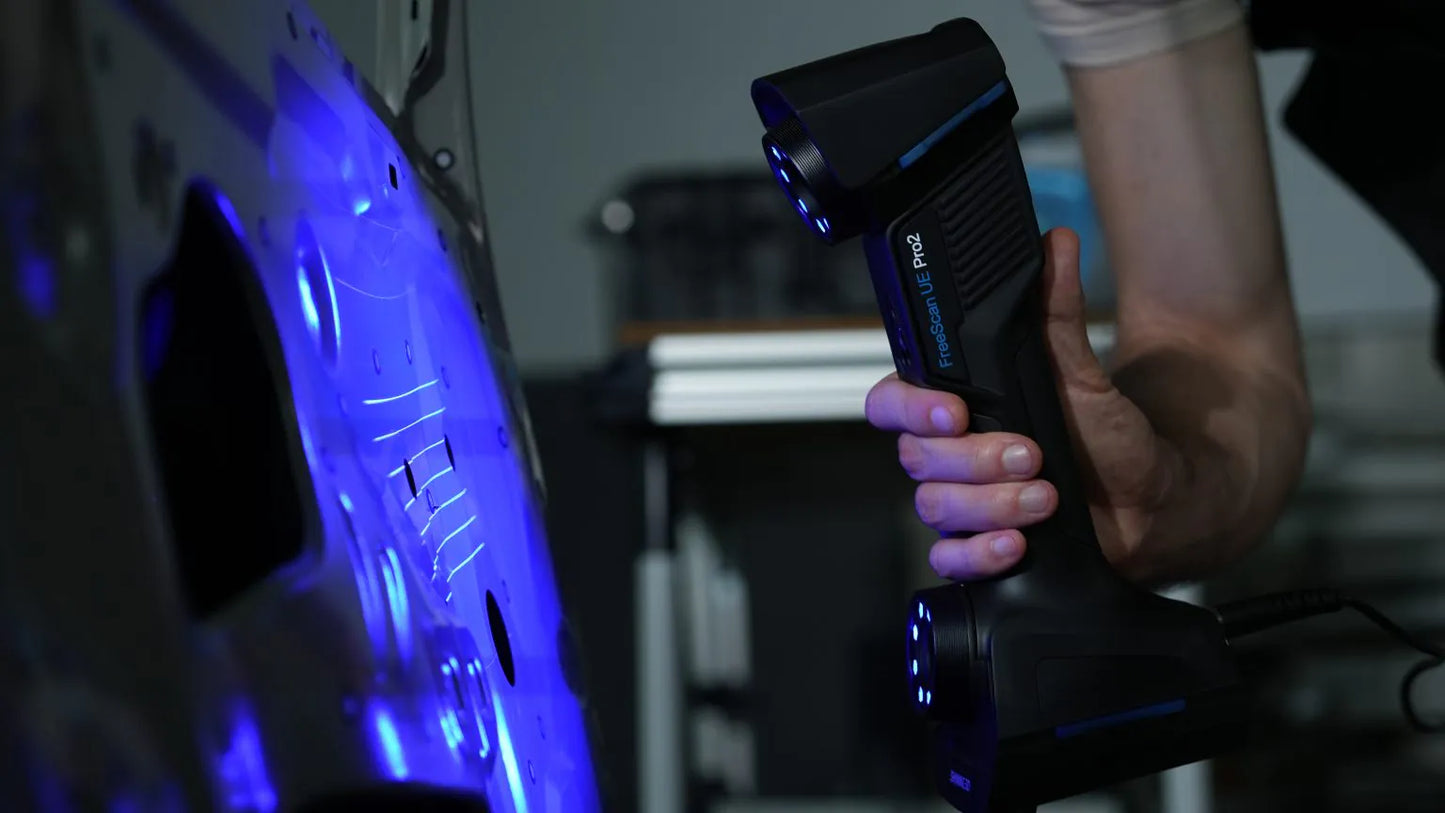

FreeScan UE Pro2 Handheld 3D Scanner 5

SPECIFICATIONS:



Product Model:   FreeScan UE Pro2

Scan Mode:   Multiple lines                     Fine Scan                                Single Line Scan

Light Source:   50 laser lines                      7 parallel laser lines             1 Laser line

Working Distance:   300mm                                200mm                                   300mm

Scan Accuracy:  0.02mm

Volumetric Accuracy:   0.02 + 0.03mm/m (0.02 + 0.015mm/m with photogrammetry)

Scan Speed:   Up to 3,460,000 points/s

Scan Depth:    360mm

Max. FOV:   600 x 550mm

Point Distance:   0.01 ~ 10mm

Weight:   0.95kg

Power Input:   24V, 3.75A
