FreeScan

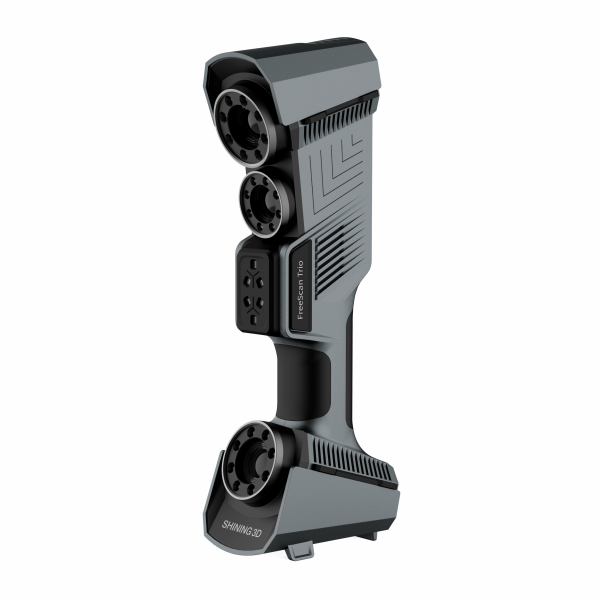

FreeScan Trio Handheld 3D Scanner

FreeScan Trio Handheld 3D Scanner

Regular price $0.00 AUD
Regular price Sale price $0.00 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Software Add-On (Optional)
View full details

Marker-free, ultra-fast speed, unrelenting accuracy.

An innovative laser 3D scanner with 98-laser-line mode, 5-megapixel cameras, and photogrammetry.

What's new

  • 98 laser lines for marker-free scanning
  • Speed up to 3,010,000 points/s
  • Three 5 megapixel cameras
  • Accuracy up to 0.02 mm with markers
  • 4 scanning modes and built-in photogrammetry

98 Laser Lines, Zero Markers

The FreeScan Trio’s thorough 98-laser-line mode eliminates the need for markers, efficiently capturing all your workpieces. Paired with an ultra-fast scan speed of up to 3,010,000 points, you’ll truly feel the acceleration in your workflow.

FreeScan Trio Handheld 3D Scanner 98 Laser Lines, Zero Markers

Features

With its fast and innovative 98-laser-line mode, the FreeScan Trio is SHINING 3D’s first marker-free laser 3D scanner. Less preparation, more efficiency.
The FreeScan Trio’s three additional laser scanning modes deliver unrelenting accuracy, each reaching up to 0.02mm with markers. This metrology device also features built-in photogrammetry to offer an impressive volumetric accuracy of up to 0.02mm + 0.15mm/m.
Whether you need speed or accuracy on small or large assemblies, the versatile FreeScan Trio is geared for all your projects.

Scan Modes

98 laser lines: Marker-free, ultra-fast scan speed of up to 3,010,000 points/s
26 laser lines: 650x580mm FOV for fast 3D scanning
7 laser lines: Industrial-grade, 5MP cameras to capture exceptional detail
1 laser line: Optimized camera angle for pockets and holes

FreeScan Trio Handheld 3D Scanner 1 laser line

FreeScan Trio Handheld 3D Scanner 7 laser lines

FreeScan Trio Handheld 3D Scanner 26 laser lines

FreeScan Trio Handheld 3D Scanner 98 laser lines

Unrelenting Accuracy and Precision

For quality control, inspection, and reverse engineering, its 0.02 mm accuracy (with markers) and high-precision performance deliver results you can count on, time and time again. * Data generated with the 26 laser line mode. Compared to the CAD file.

FreeScan Trio Handheld 3D Scanner Unrelenting Accuracy

Photogammetry

The FreeScan Trio features a built-in photogrammetry mode that can achieve a remarkable volumetric accuracy of up to 0.02mm + 0.015mm/m. Place markers and just one magnetic scale bar and the FreeScan Trio will quickly lock in the spatial position of the target frame.

FreeScan Trio Handheld 3D Scanner Photogammetry

Modes

Scan ModeMultiple Lines ScanSingle Line ScanFine Detail Scan98 Lines Scan
Light Source26 laser linesSingle laser line7 parallel laser lines98 laser lines
Working Distance300 mm300 mm200 mm300 mm
Scan AccuracyUp to 0.02mm/
Scan SpeedUp to 3,010,000 points/s



Performance

Scan Depth360 mm
FOV650 mm x 580 mm
Volumetric Accuracy0.02 + 0.03mm/m (0.02 + 0.015mm/m with photogrammetry)
Point Distance0.01-3mm
Laser Class

Class Ⅱ(eye safe)





Requirements

Connection StandardUSB 3.0
Dimensions331 x 120 x 76 mm
Weight985g
Power input12V, 5.0A
Working humidity10 ~ 90%
CertificationsCE, FCC, ROHS, WEEE, KC, FDA, UKCA, IP50
Computer Requirements

OS: Win10, 64 bit; Graphics card: NVIDIA GTX/RTX series cards, higher or equal to GeForce RTX 3060; Video memory: ≥6G; Processor: I7-10700; Memory: ≥64GB
