DeltaWASP

DeltaWASP Clay 2040 3D Printer - suited to schools and universities PLEASE CONTACT FOR QUOTE

DeltaWASP Clay 2040 3D Printer - suited to schools and universities PLEASE CONTACT FOR QUOTE

Regular price $0.00 AUD
Regular price Sale price $0.00 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

PLEASE CONTACT US FOR A QUOTE:  sales@addlabs.au or 02 9161 4164

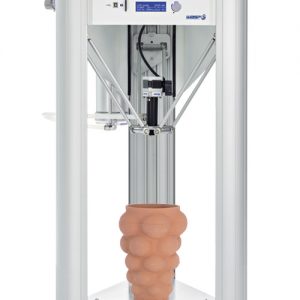

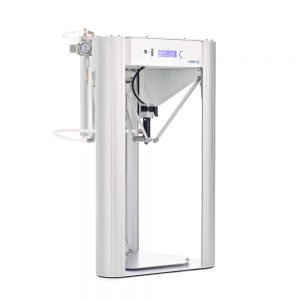

Our DeltaWASP 2040 Clay is the ideal equipment for clay printing.  Accurate and fast using all ceramic materials.  Our ceramic clay 3D Printers are open and accessible on all three sides for user interaction.

3D PRINTING INFORMATION

Build volume Ø200 x height 400 mm
Minimum layer height: 0,5 mm;
Maximum print speed: 150 mm/s;
Maximum travel speed: 150 mm/s;
Acceleration: 500 mm/s2;

MATERIALS

Material:  ceramic mixtures including but not limited to
Clay
Porcelain
Sandstone
Earthenware
also different colours and mixtures

CONFIGURABLE TOOLS

LDM WASP extruder 3.0: with 1.5, 2, 3 mm nozzles (standard)
Luer lock nozzle adapter with conical nozzles: 1.2mm, 1.5mm

SOFTWARE

Operative systems Windows, Mac, Linux
Official Slicing:  Simplify3D®
Compatible Slicing:  Cura, Slic3r and PrusaSlicer
File type .stl, .obj, .gcode

INTERFACE

SD cards
LCD screen

PHYSICAL DIMENSIONS

Printer Dimensions:  49 cm x 44 cm x 87 cm
Machine weight:  40 kg
Dimensions and weight for the cardboard packaging 50 cm x 58 cm x 101 cm, weight 50 kg

POWER AND AIR COMPRESSOR REQUIREMENTS

Input 220/240 V 50/60 Hz
Consuming power: Approx. 180W
NOTE.:  Air compressor is not supplied.
Air Compressor – min. pressure of 8 bar and 50 litres is needed

You will also need a Nylon Tube to a length you specify.
You can buy it from the hardware store as it is 8mm OD or 5/16” External Diameter Nylon Tubing
So if your compressor is in another room, buy some longer tubing.

Operating Temperature

Printer to be used between 20-30 C°
Storage in warehouse 0-30 C°

MECHANICS

Frame and cover is Aluminium with Painted Steel outer plates
Wooden Multi Layer print bed

Movement

– Precision Nylon wheels on anodized Aluminium extrusions
– Steel cored TPU belts.

Motors – High Quality NEMA 17 Stepper

INCLUDED MATERIAL

LDM WASP extruder 3.0 with nozzle in metal diam. 1.5, 2, 3 mm.
A large 3 Litre Tank for the Clay Mixture
Print bed made from Marine Plywood
12.5 kg of Red Earthenware
AU Power cable
Packaging for national shipping in a cardboard box approximately 58 cm x 50 cm x 101 cm

EXTRA FEATURES



RESURRECTION SYSTEM (cc)

If the power gets interrupted at any stage in the print, when the power comes back on again the printer will restart heating the hot-end and heat-bed then the 3d print, in the same place the power cut out.

Read more about RESURRECTION SYSTEM

FREE Z SYSTEM (cc)

In the case of an interruption, it’s possible to measure the height of your print and simply enter that height into the Free Z System in the display menu and restart the print from that exact height.

Read more about FREE Z SYSTEM

WASP TECHNICAL INNOVATIONS

Our screw extruder has a precisely controlled dosage thanks to our screw design
Controlled air pressure for the printer
Perfect stability thanks to new sliding-system on bearings
Compressed Air pipe connection is now integrated into the printer

Dedicated Firmware

Delivery Timeframe:  2-8 weeks

Country of Origin:  Made in Italy
