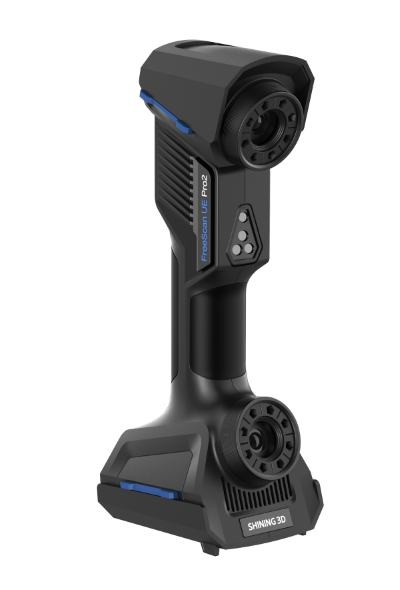

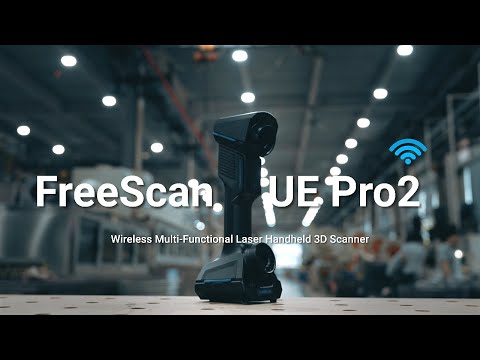

Shining3D FreeScan UE Pro2 3D Scanner

Shining3D FreeScan UE Pro2 3D Scanner

Regular price $49,125.95 AUD
Regular price Sale price $49,125.95 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

Online Demonstrations available - 02 9161 4164 | sales@addlabs.au



The Shining3D FreeScan UE Pro2 is wireless. A lightweight, portable 3D scanner ideal for fieldwork and tough environments.  it features an integrated wireless module for easy data transmission and a rapid scan speed of up to 3,460,000 points per second, doubling the efficiency of its predecessor.


FEATURES:

  • Wireless Data Transmission: Cable-free data transfer with integrated wireless module.

  • Ultra-Fast Scan Speed: Up to 3,460,000 points per second for efficient task completion.

  • Embedded Computing Module: Enhances data capture and processing, reducing scanning time and computer workload.



3 FUNCTIONS FOR VERSATILE APPLICATIONS:

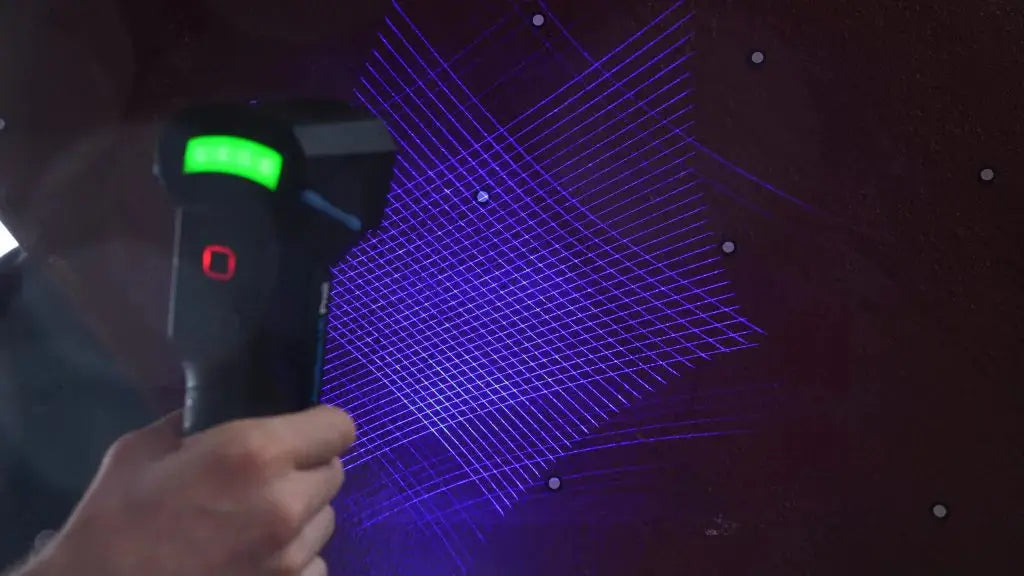

  • High-speed scanning: 50 laser lines

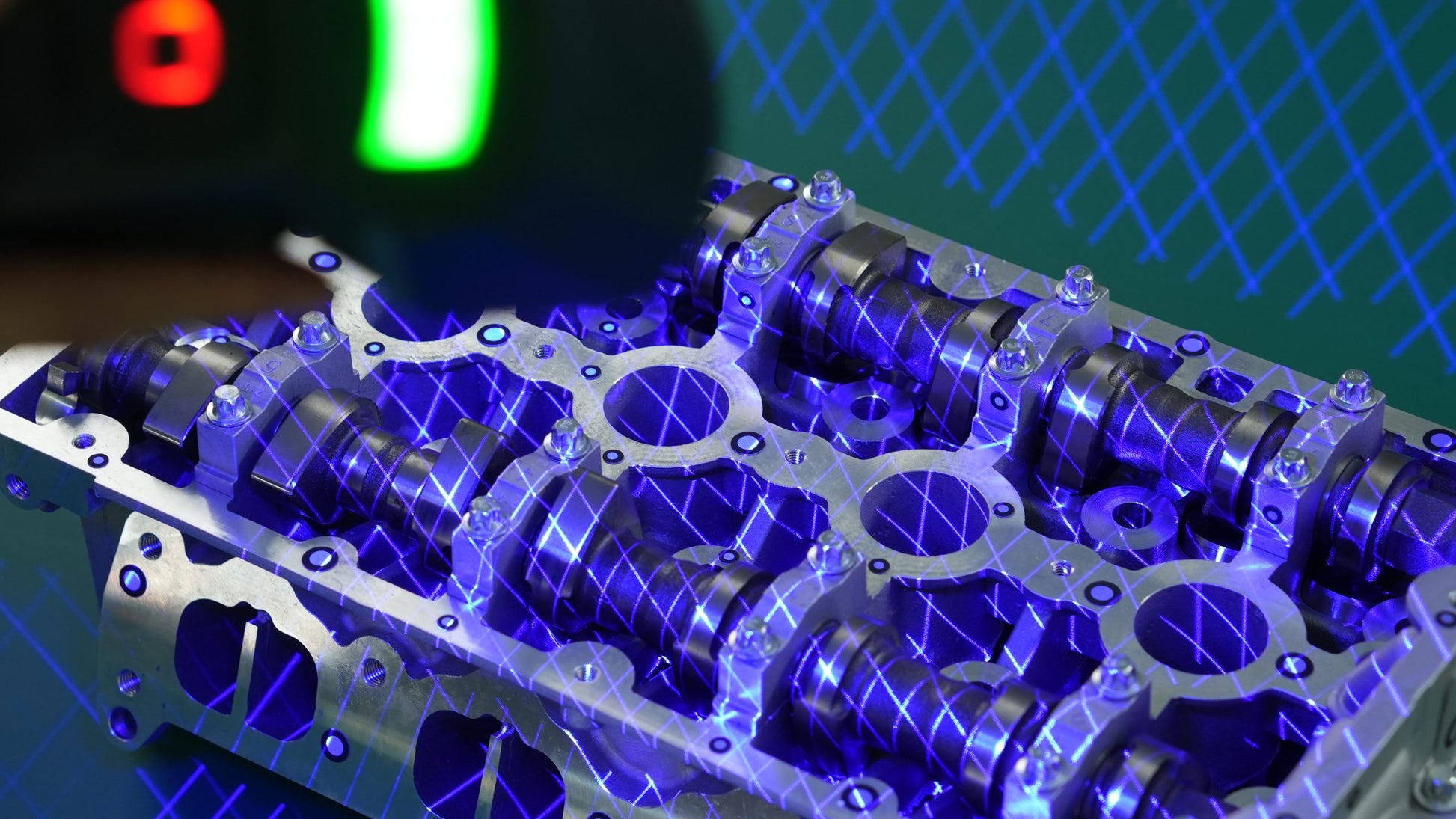

  • Detail scanning: 7 parallel laser lines
  • Deep hole scanning: 1 laser line

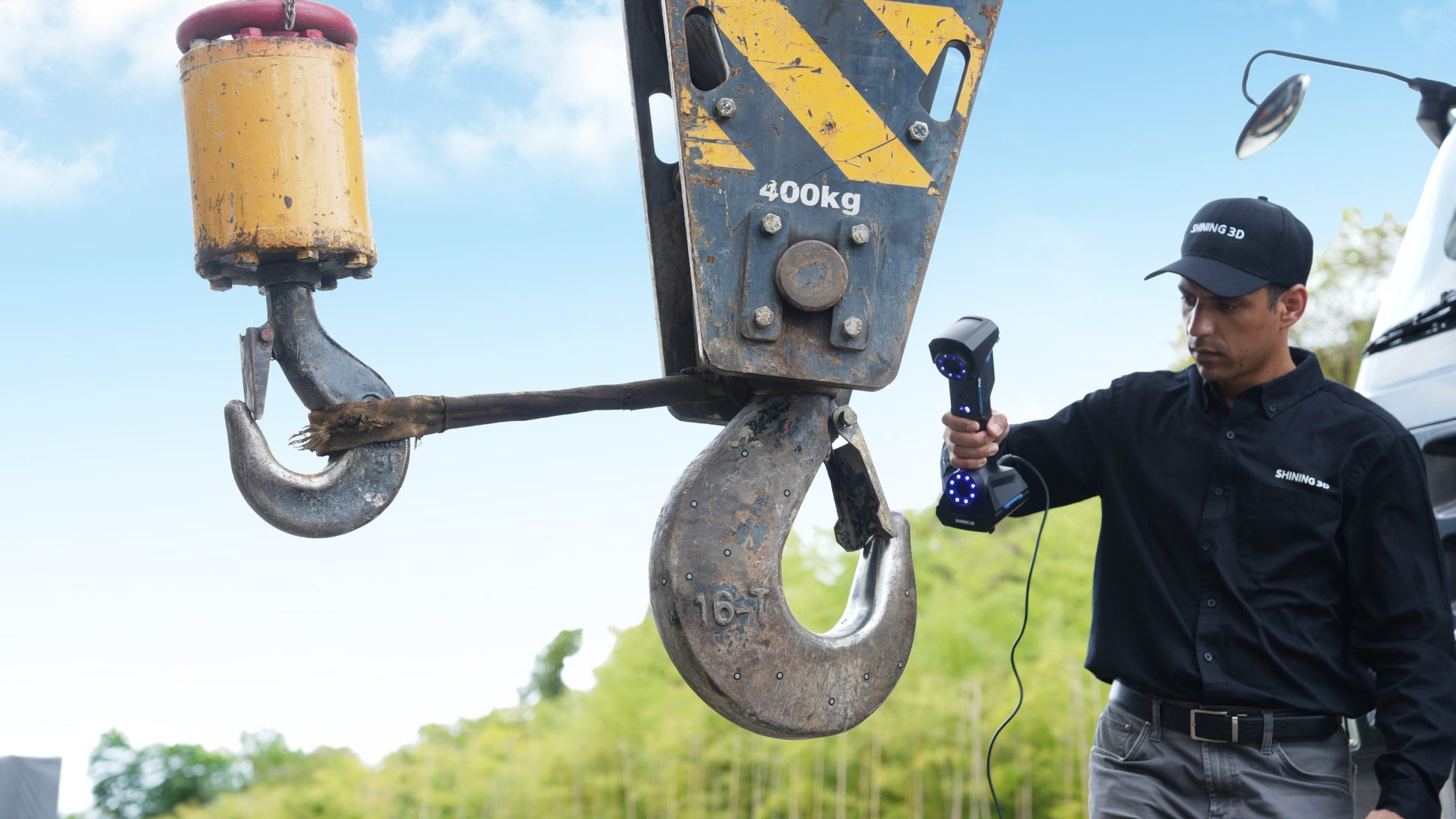

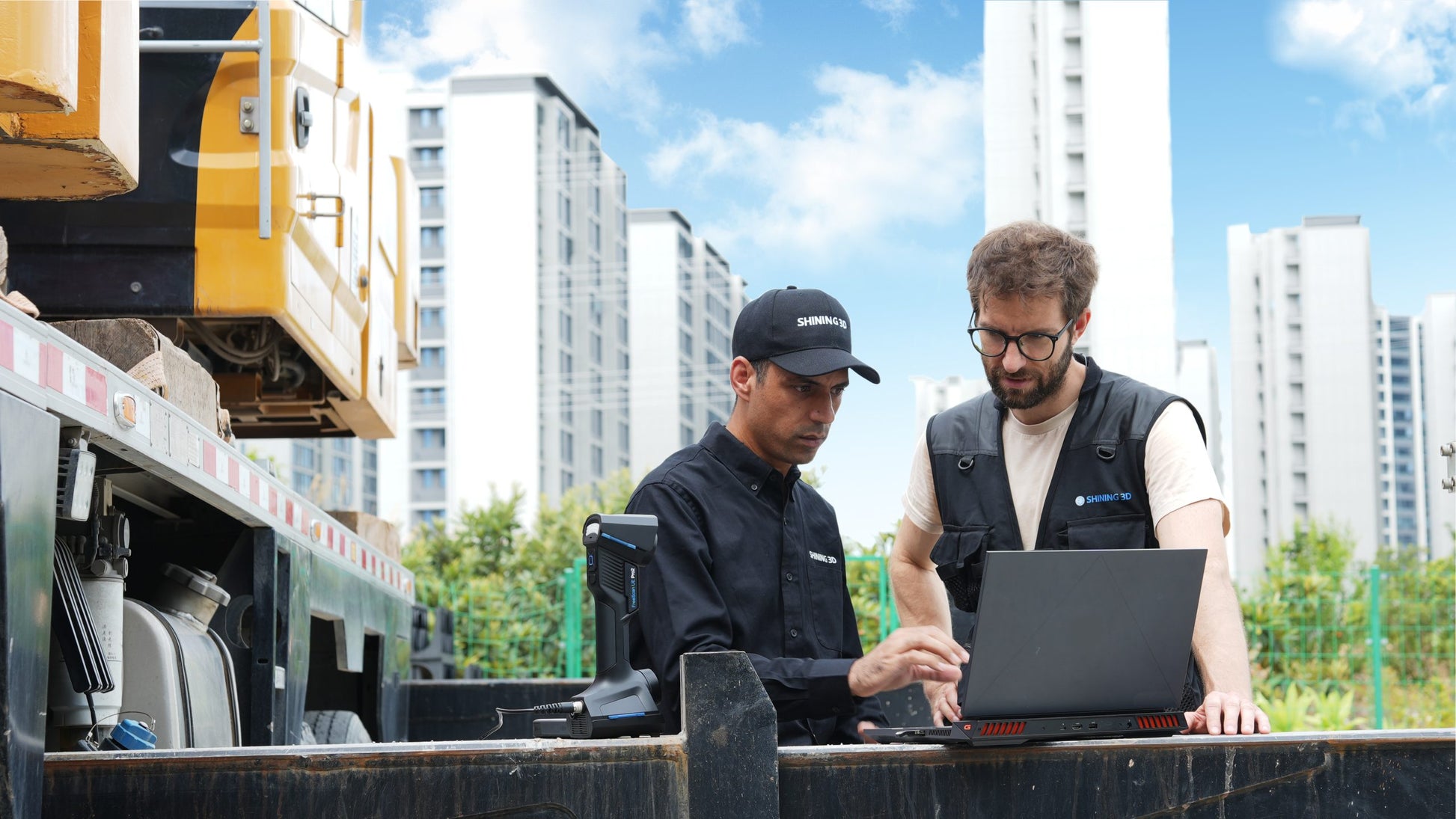

SCAN INDOORS OR OUTDOORS:

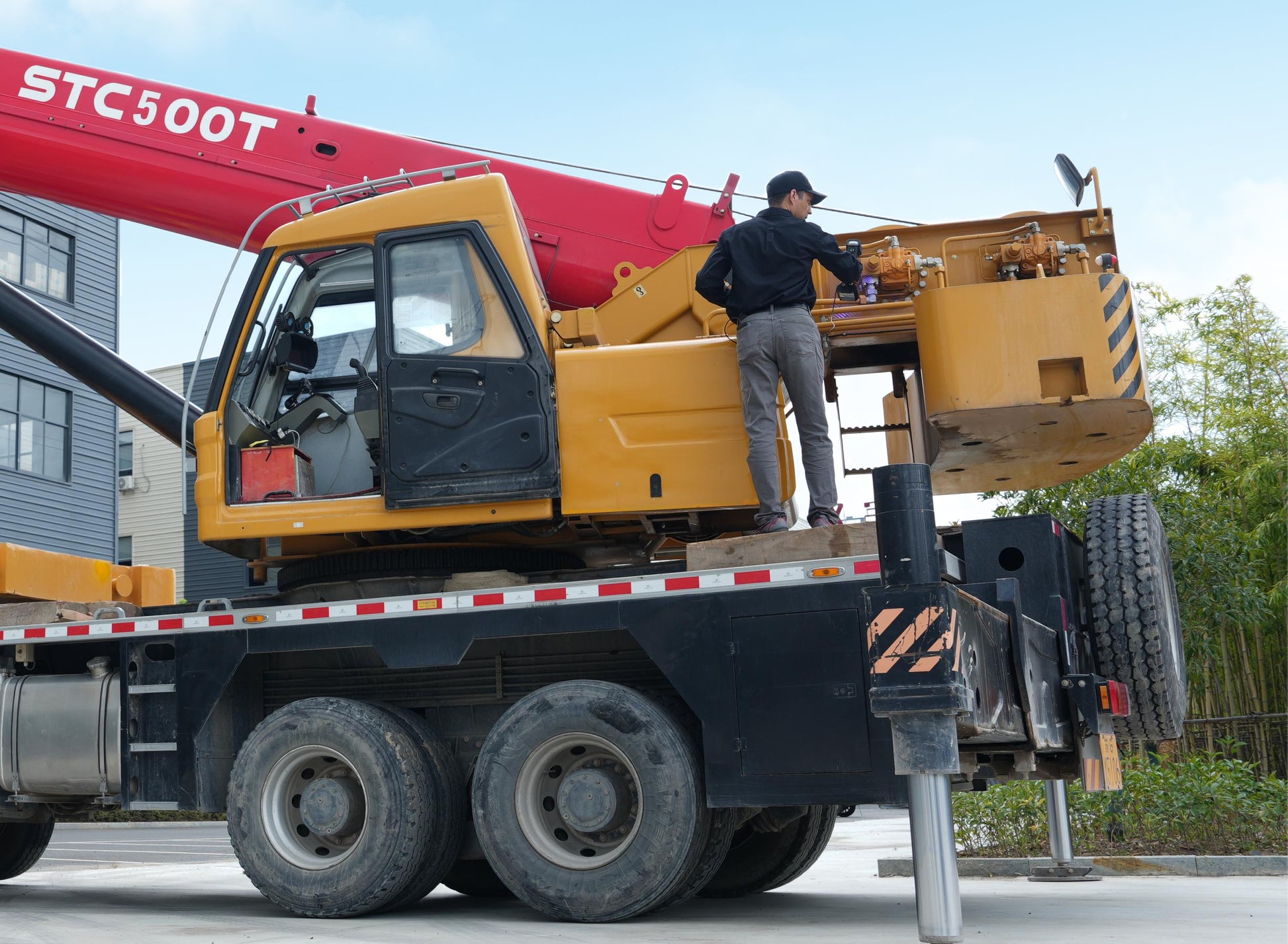

The FreeScan UE Pro2 excels in both indoor and outdoor environments, making it versatile for any work setting.



ELEVATED ACCURACY FOR LARGE SCALE SCANS:

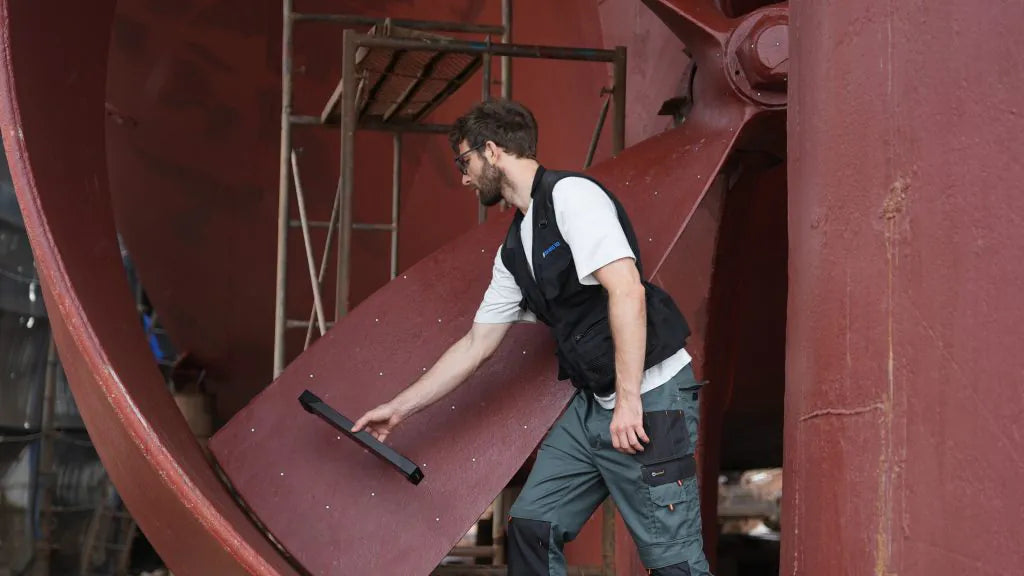

Different from traditional photogrammetry methods, SHINING 3D’s binocular photogrammetry technology eliminates the usage of coded targets, reducing preparation time by at least half while maintaining the same high level of volumetric accuracy.



DOUBLE THE SPEED, DOUBLE THE PRODUCTIVITY:

With a scan speed up to 3,460,000 points/s, tasks are completed smoothly, enhancing productivity in inspection applications.

  • Embedded Computing Module: Accelerates data capture and processing, reducing overall scanning time and computer workload.
  • 50 Laser Lines: Ensures faster and more comprehensive scanning.



SCAN TO CAD WORKFLOW:

3D SCAN

  • Capture Surface Data
  • Alignment
  • Mesh Improvement
  • Export to STL, OBJ

MESH to CAD

  • ExModel or Quicksurface
  • Reconstruct to parametric
  • Export as STEP

CAD

  • Import 3D CAD
  • SolidWorx, SolidEdge, Fusion 360, Investor



SPECIFICATIONS:



Product Model:                 Freescan UE Pro2

Scan Mode:                        Multiple lines  |  Fine Scan  |  Single Line Scan

Light Source:                     50 laser lines  |  7 parallel laser lines   |  1 Laser line

Working Distance:             300mm  200mm  300mm

Scan Accuracy:                   0.02mm

Volumetric Accuracy:        0.02 + 0.03mm/m (0.02 + 0.015mm/m with photogrammetry)

Scan Speed:                       Up to 3,460,000 points/s

Scan Depth:                       360mm

Max. FOV:                          600 x 550mm

Point Distance:                  0.01 ~ 10mm

Weight:                              0.95kg

Power Input:                     24V, 3.75A



PLEASE NOTE:

Please call 02 9161 4164 or email sales@addlabs.au to be advised on timeframes for delivery.  It is a special order product.
