Bambu Lab AMS 2 Pro - Automatic Material System

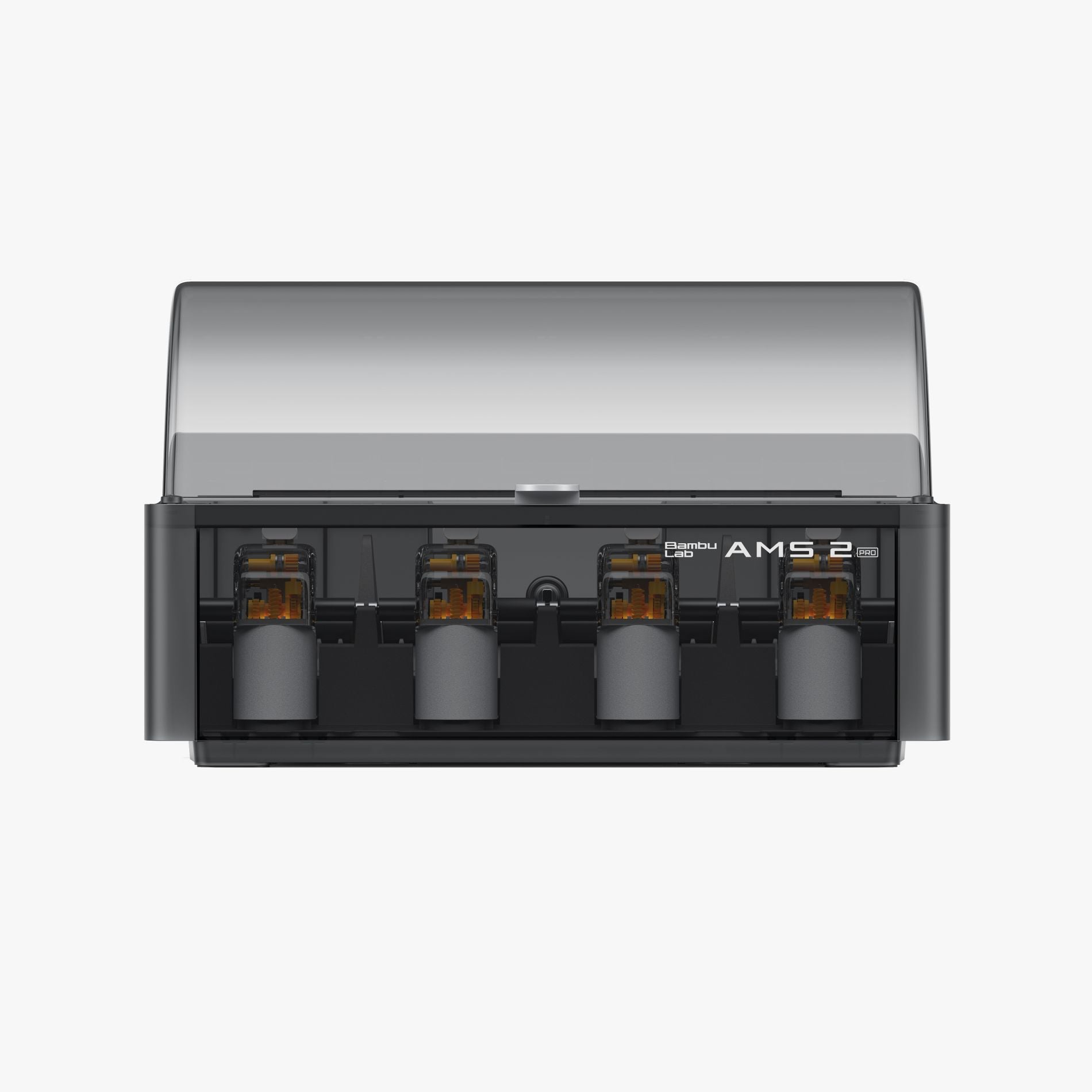

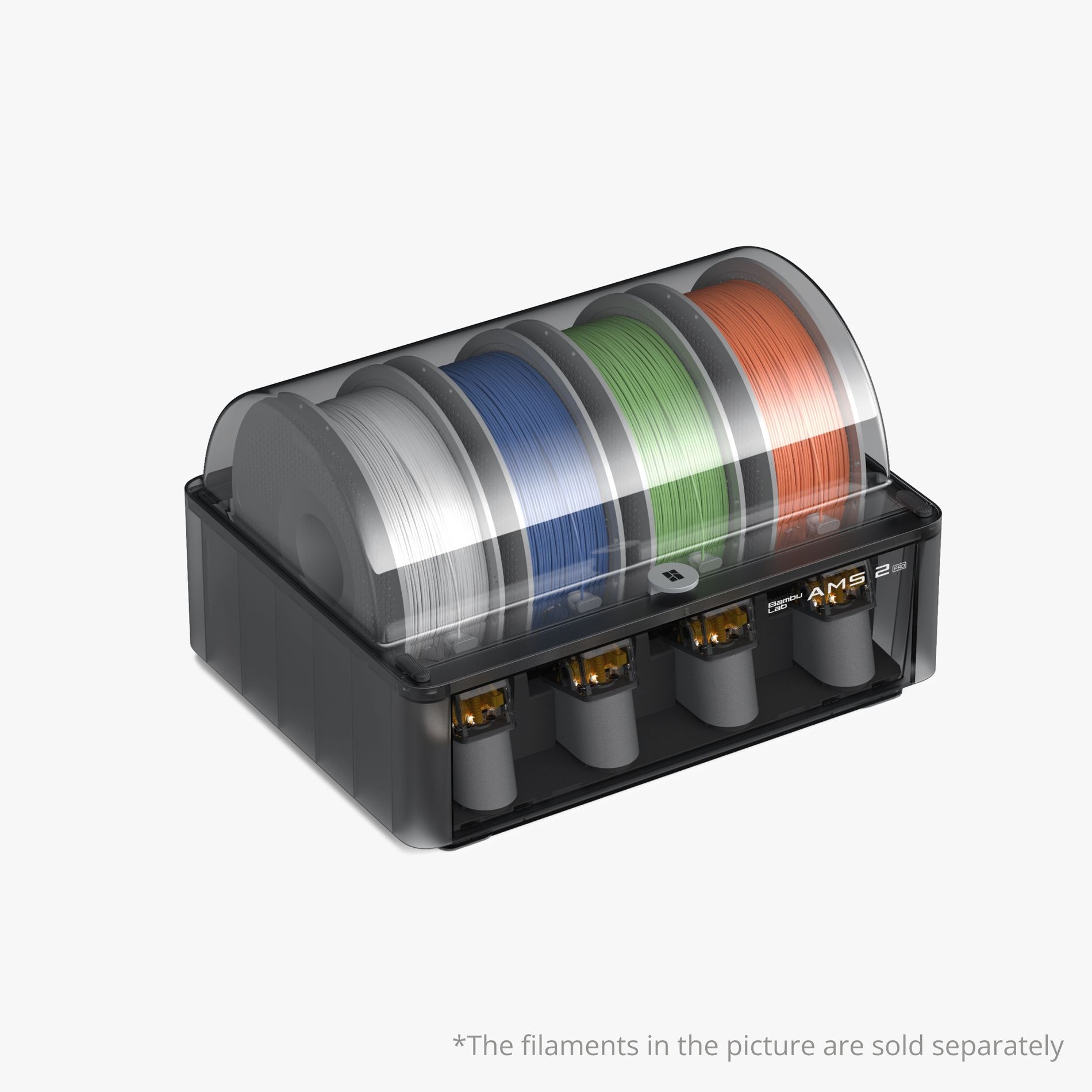

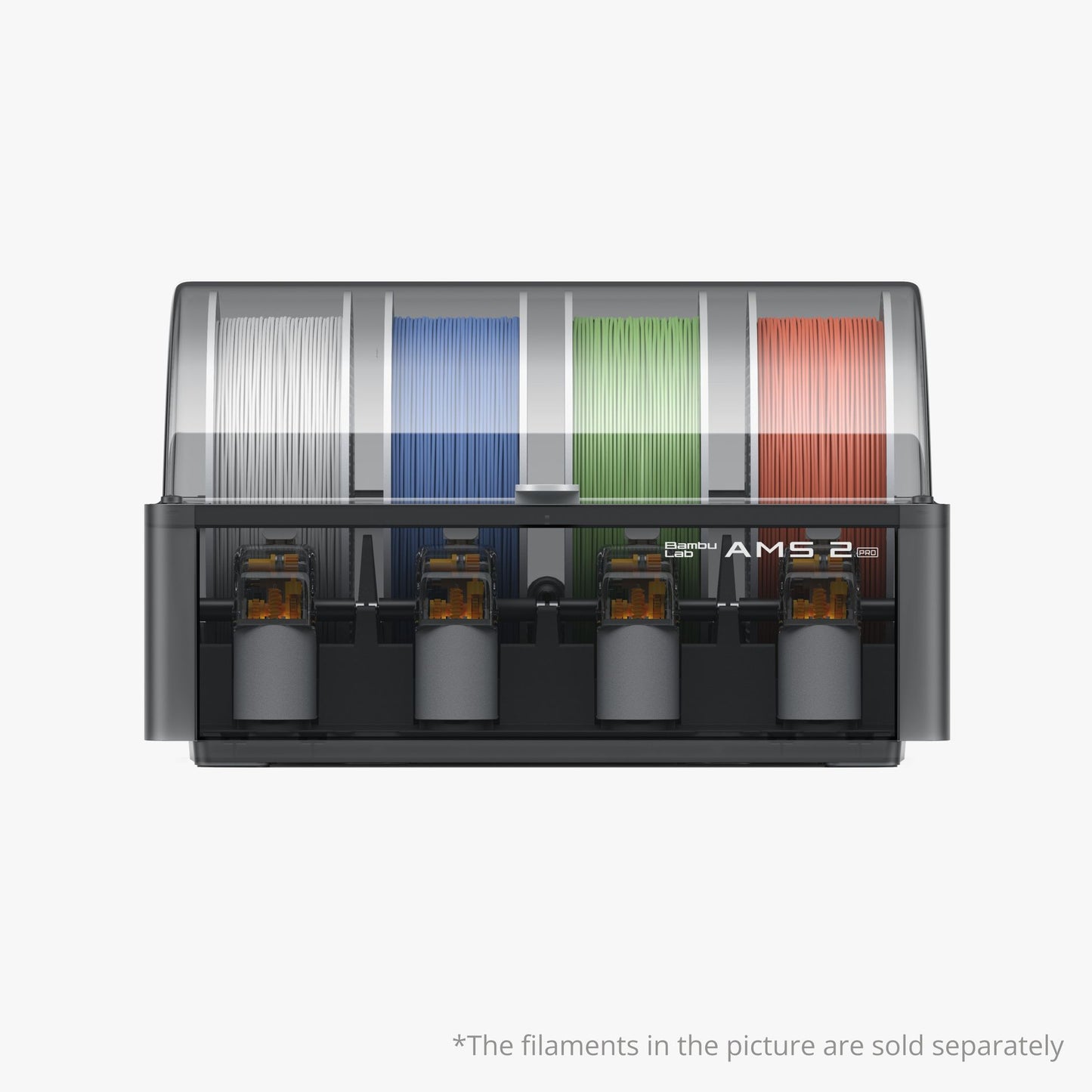

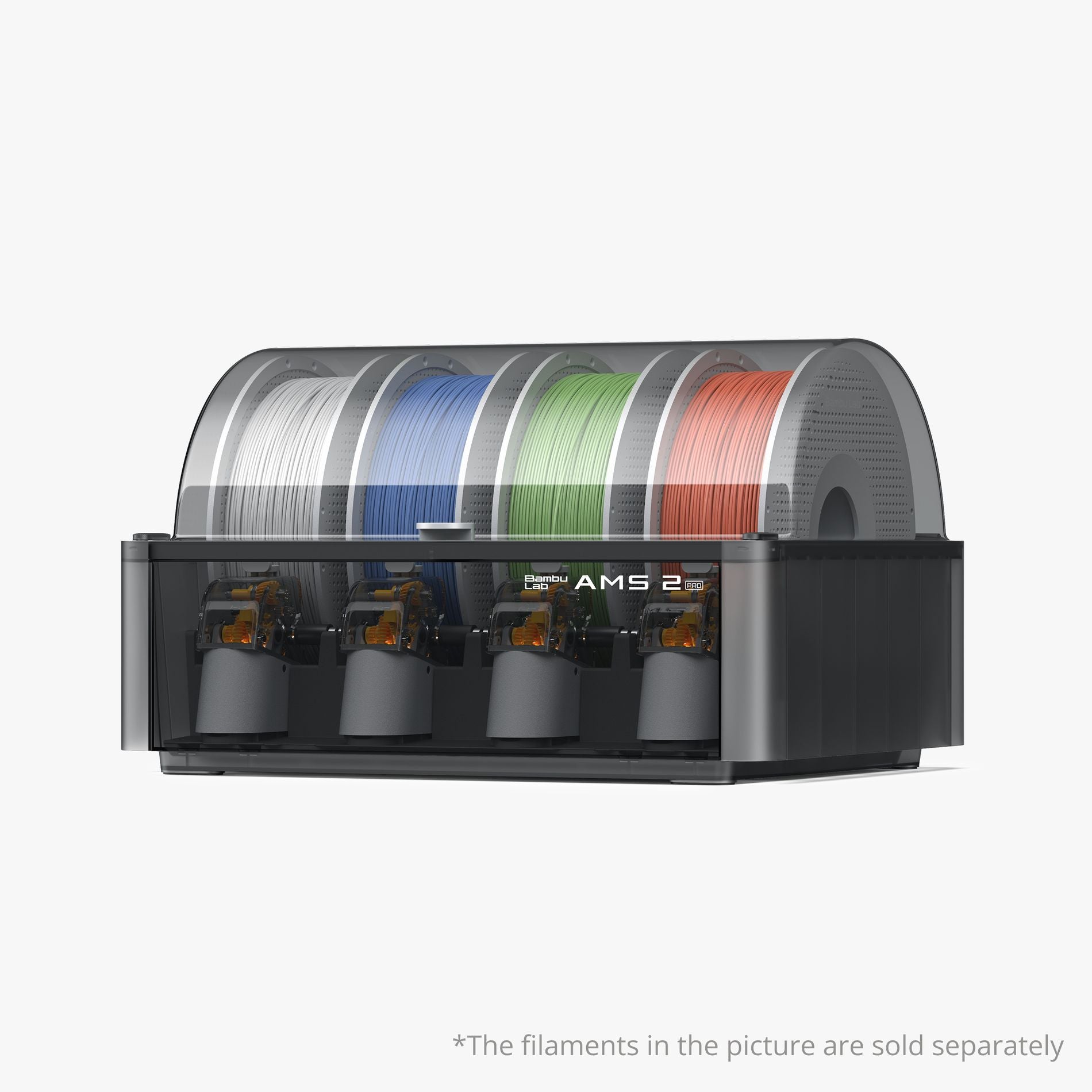

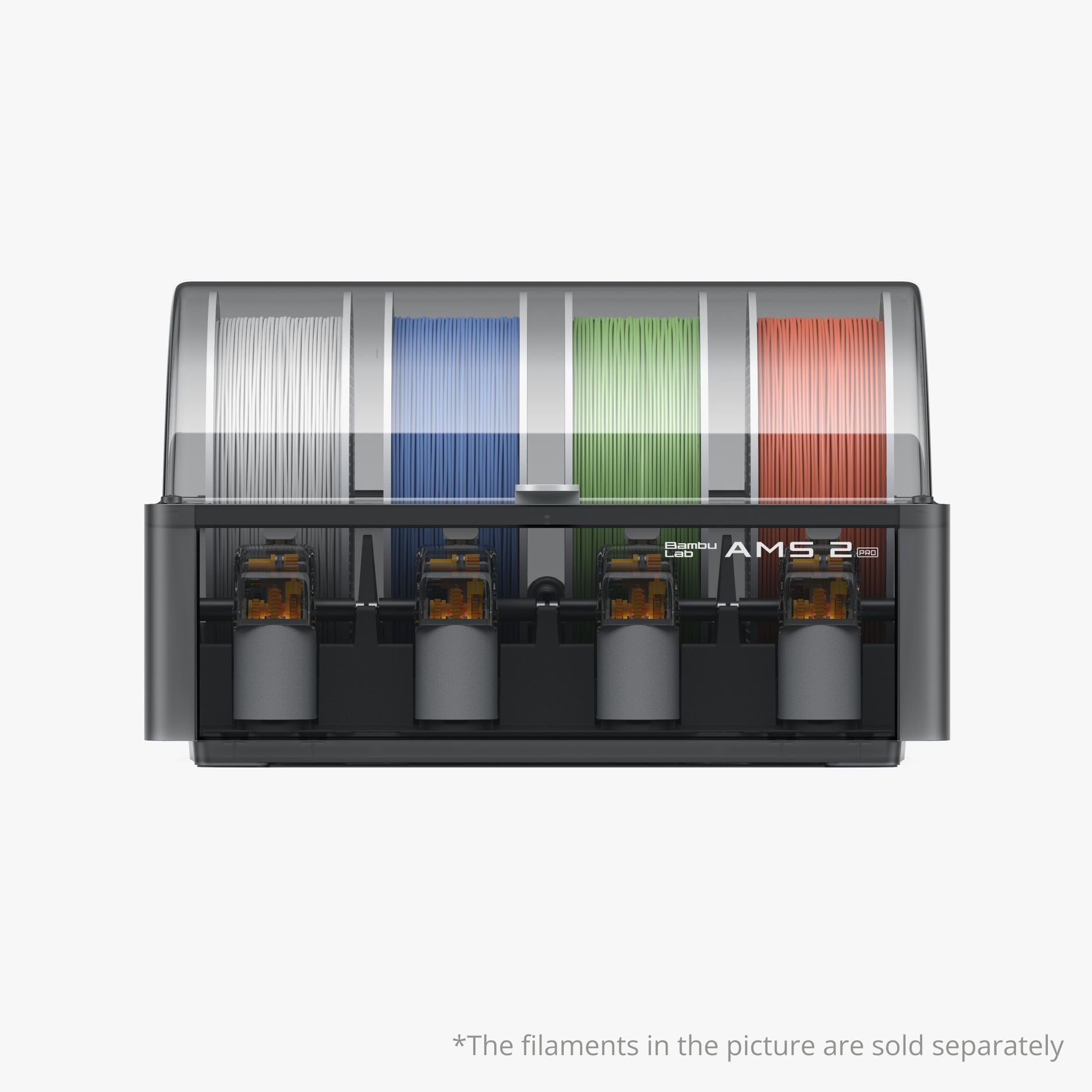

Bambu Lab AMS 2 Pro - Automatic Material System

View full details

Product Features

  • Active Air Vent 65°C Filament Drying
  • Air-tight Filament Storage
  • Up to 24-color/Multi-material Printing
  • Brushless Servo Feeding Motor
  • RFID Filament Sync
  • AMS 2 Pro compatibility with A1/A1 mini printers will be added through an OTA update in Q3 2025.
  • The AMS 2 Pro is compatible with X1/P1 series printers for multi-material printing.
  • For X1/P1 owners, a switching adapter is needed to power the drying function. Since filament drying lasts long, you rarely need multiple adapters running simultaneously. The optional adapter helps lower the price.
  • For H2D owners, your H2D can power anyone of the AMS 2 Pro(s) connected for drying, so if you're not planning to run multiple AMS 2 Pro for drying simultaneously, you won't be needing an adapter.
  • For X1E owners, the AMS 2 Pro drying feature is currently under testing and not yet supported.

Description

X1 Series and P1 Series are compatible with AMS 2 Pro.


If only using the automatic filament feeding function, only the 6-pin bus cable4-pin bus cableFilament Buffer/AMS Hub, PTFE Tube and PTFE Tube Coupler are required, and no external power adapter is needed. However, if you need to use the drying function, an external power adapter is required for the AMS 2 Pro.



Bambu Lab AMS 2 Pro

AMS, Evolved.

Bambu Lab AMS 2 Pro

Serially connect up to 4 AMS 2 Pro & 8 AMS HT units, total of 24 filaments

Electro-Magnetic Air Vent

Fast filament drying & air-tight filament storage

65°C Drying

Up to 65°C drying temperature

Brushless Motor

60% faster feeding speed

Dry Filament Quickly and Intelligently

Electro-Magnetic Air Vent

Automated venting facilitates dehumidification during drying and ensures airtight sealing for weeks of high-quality printing.

Auto-rotate Drying

During the drying process, the filament spools rotate automatically to ensure more even drying.

RFID Sync

AMS 2 Pro uses RFID to auto-match drying settings for Bambu official filaments, no manual input needed.

RFID Sync

 Dry                                                                    Moist

Tool-Free Filament Tubes Access

Removing snapped filament from the first-gen AMS requires extracting all spools and disassembling the shell with two screws, taking 3-5 minutes. In contrast, the AMS 2 Pro offers direct, tool-free access to filament tubes from the top.

Tool-Free Filament Tubes Access

Ceramic Inlet

Ceramic filament inlets with Vickers hardness of 1200 significantly enhances durability.

Ceramic Inlet

AMS 2 Pro Specs

ItemSpecification
BodyDimensions372*280*226 mm³
Net Weight2.5 kg
Housing MaterialABS/PC
PrintingFilament SupportedPLA, PETG, ABS, ASA, PET, PA, PC, PVA (dried), BVOH (dried), PP, POM, HIPS, Bambu PLA-CF/PAHT-CF/PETG-CF/Support for PLA/PETG, and TPU for AMS
Filament Not SupportedTPE, generic TPU, PVA (damp), BVOH (damp),Bambu PET-CF/TPU 95A, and other filament that contains carbon fiber or glass fiber
Filament Diameter1.75 mm
Spool Dimension
Width: 50 mm-68 mm
Diameter: 197 mm-202 mm
RFID IdentificationSupported
DryingHighest Temperature65 °C
Filament SupportedPLA, PETG, Support for PLA/PETG, ABS*, ASA*, PET*, PA*, PC*, PVA*, BVOH *, PP, POM*, HIPS*, Bambu PLA-CF*/ PAHT-CF*/ PETG-CF*, and TPU for AMS*
Active Moisture DischargeSupported
Sealed StorageSupported
Temperature & Humidity DetectionSupported. Real-time temperature and humidity can be displayed on the screen, Bambu Studio, and Bambu Handy.
PowerInput24 V 4 A
